Home /Products/Current Sense Transformer/PCB Mounting 20A Toroidal Current Sense Transformer

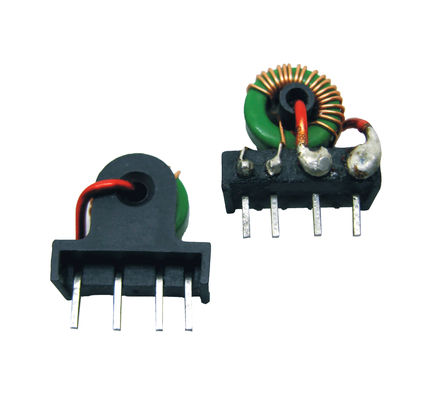

PCB Mounting 20A Toroidal Current Sense Transformer

Negotiation
MOQ
Negotiation
Price
PCB Mounting 20A Toroidal Current Sense Transformer
Features Gallery Product Description Request A Quote
Features
Specifications
Turns: 1:50,1:100,1:150
Input: 5-20A
Output: 33-400mA
Installation: PCB Mounting
Frequency Range: 1KHz~1MHz
Insulation Resistance: 4000V,1mA,60S
Highlight:

Toroidal Current Sense Transformer

,

20A Current Sense Transformer

,

PCB Mounting Current Sense Transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ACST Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

Current Sense , 20A Maximum Current Range, Toroidal Current Transformer,High Frequency Current Transformer



FEATURES:

  1. Low profile,directly to PCB.
  2. PBT 94V0 Case burn-resistant epoxy resin,stable.
  3. Toroid high frequency current transformer
  4. Working frequency range: 1kHz to 1MHz
  5. Current range: maximum up to 20A
  6. Turns ratio: 1:50, 1:100, 1:150, 1:200 and 1:300





Applications:

  • high frequency current control circuit and pulse current test, AC/DC and DC-DC converters





TECHNICAL INFORMATION:

  1. Insulation resistance: 500V DC >100MΩ
  2. Hi-Pot : 4000V 1mA 60S
  3. Temperature range: -25℃ to +85℃
  4. Storage Temperature: -40℃℃ to +105℃℃
  5. Resistance to soldering heat:260℃ for 10 seconds
  6. Marking: Part number and date code






Note: Product specifications can be customized.
