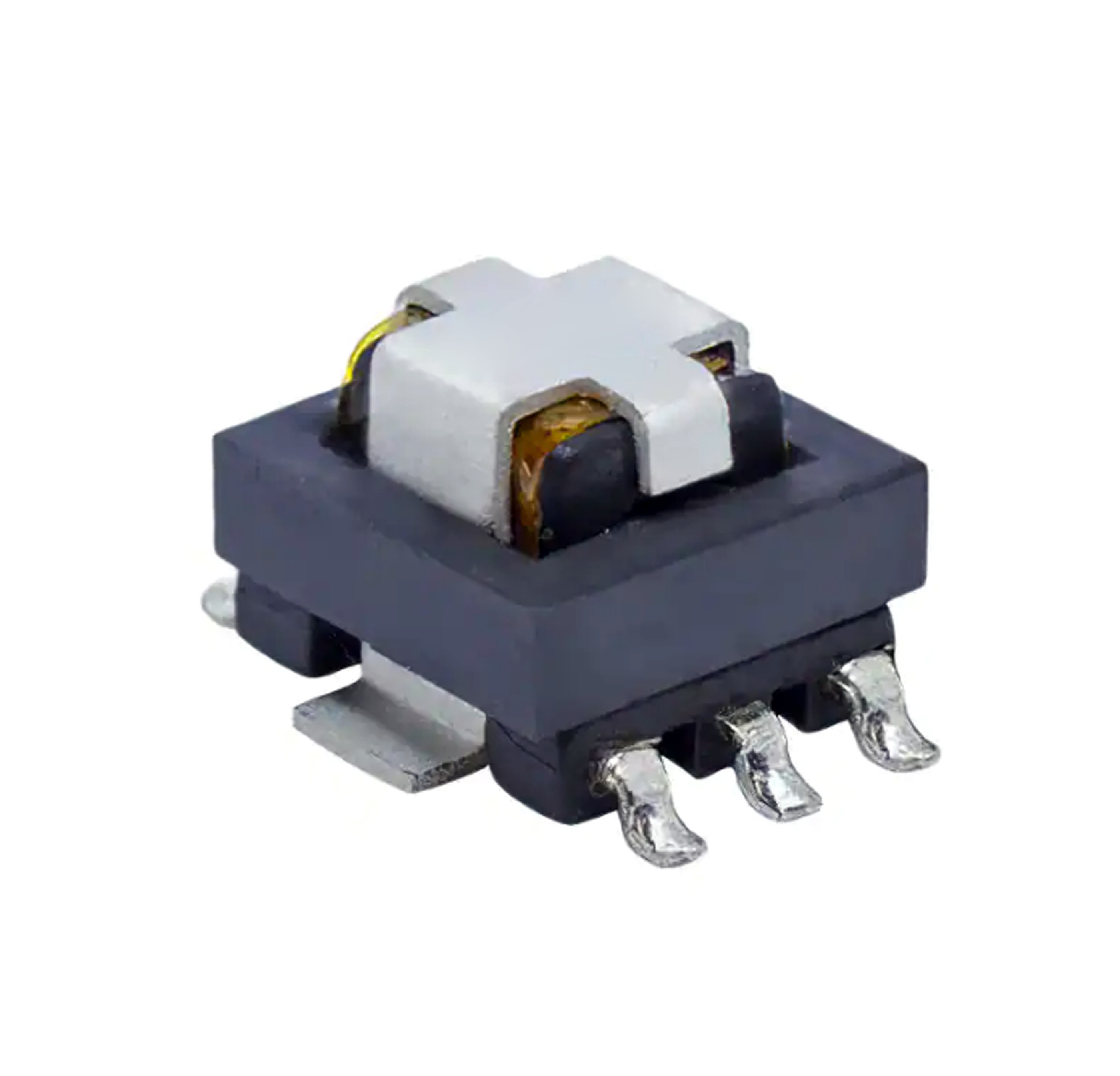

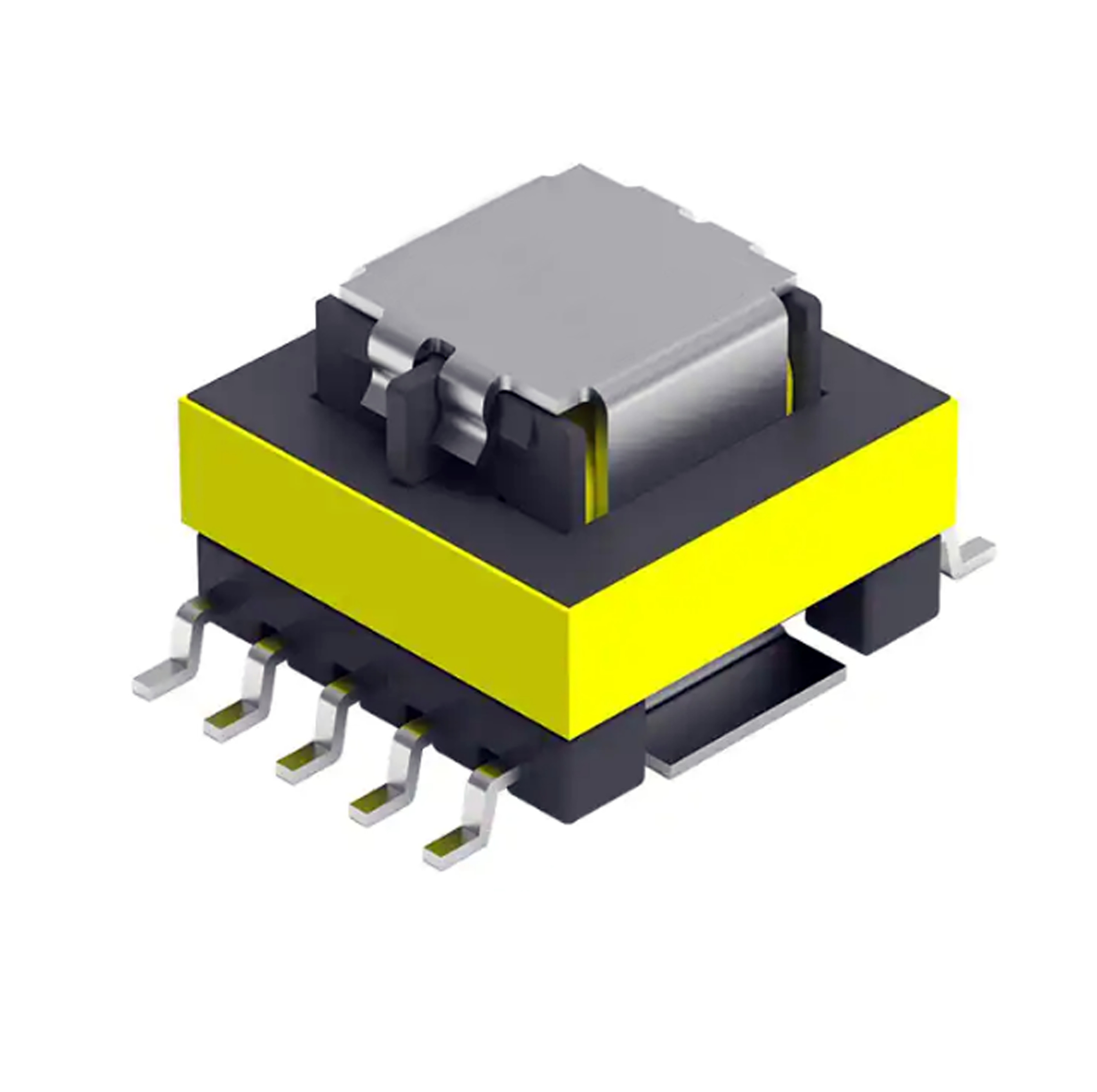

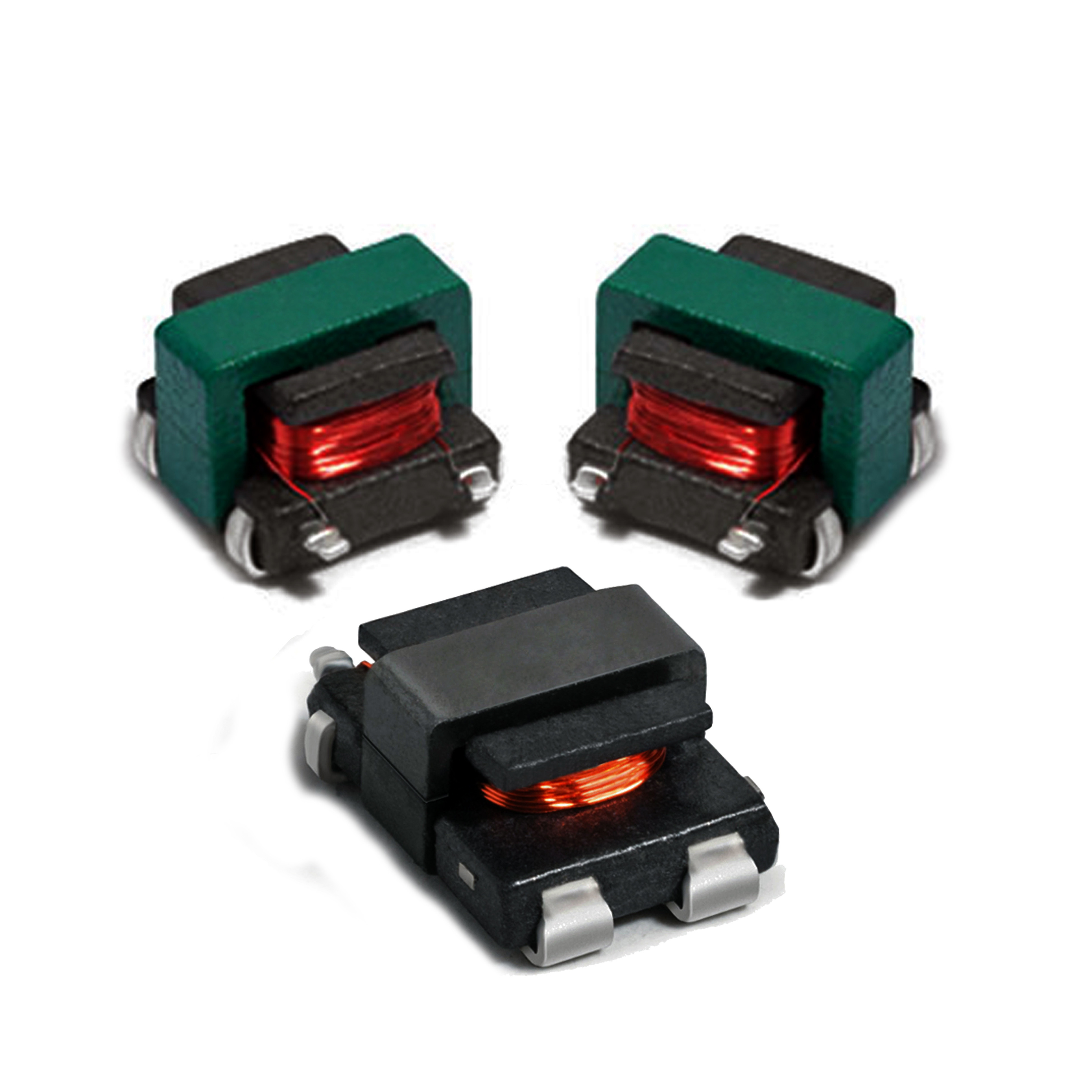

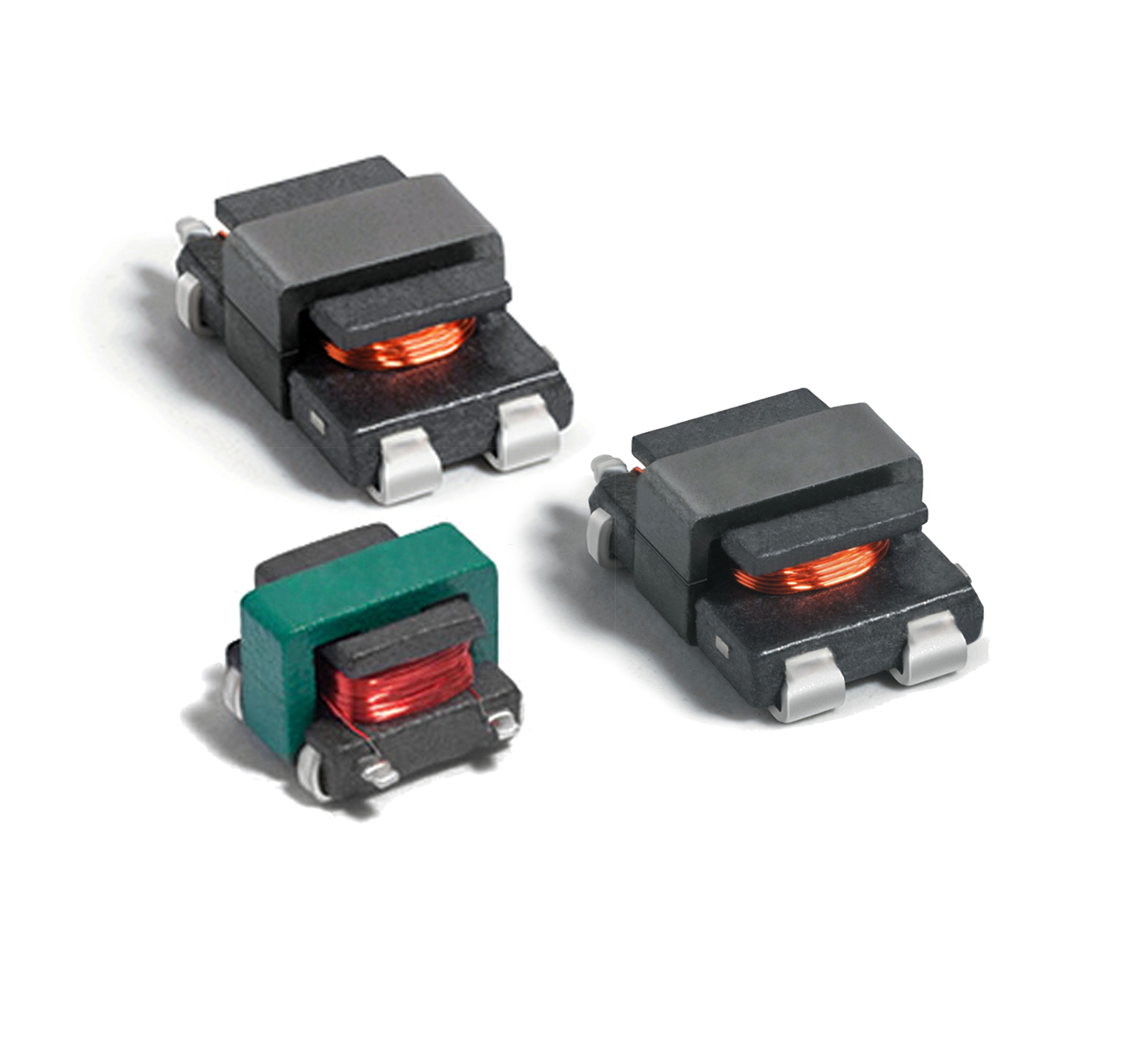

EE4.2 EE4.6 Current Sensing Transformers SMD High Frequency 1500Vac

Name: EE4.2 EE4.6 Current Sensing Transformers SMD High Frequency 1500Vac
Brand: Shinhom
SKU: ACSTE4.2 Series
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (120 reviews)

Large Image : EE4.2 EE4.6 Current Sensing Transformers SMD High Frequency 1500Vac Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	ACSTE4.2 Series

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Turns:	20 To 150Ts	Installation:	SMD
Insulation Voltage:	1500Vac	Frequency Range:	Up To 1MHz
Sensed Current:	Up To 20A	Operating Temperature:	-40℃ To 125℃
High Light:	1500Vac Current Sensing Transformers , High Frequency SMD Current Sensing Transformers , EE4.6 Current Sensing Transformers

EE4.2 , EE4.6 SMD High frequency Current Sensing Transformers , SMD Current transformers

Feature:

Turns Ratio: 1:20 1:30 1:50,1:70,1:100,1:150 available
Sensed current up to 20 Amps
Designed for use up to 1 MHz and above
Very low primary resistance
AEC-Q200 Grade 1 (−40°C to +125°C)

Applications:

Continuous AC current monitoring in switched-mode power supply
Overload and short-circuit protection
Current measurement in traction motor and battery management systems in conventional and xEV (EV, HEV, FCEV) vehicles.
Can also be used in 48 V vehicle electrical systems.

EE4.2 EE4.6 Current Sensing Transformers SMD High Frequency 1500Vac 0
