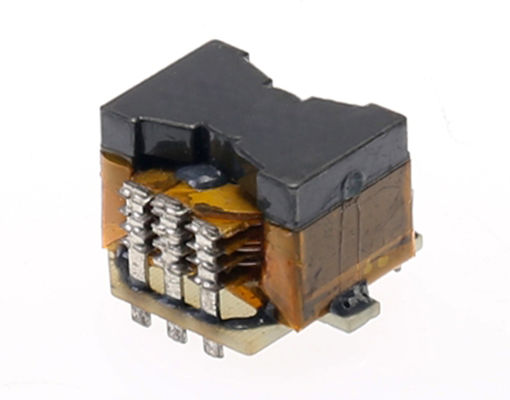

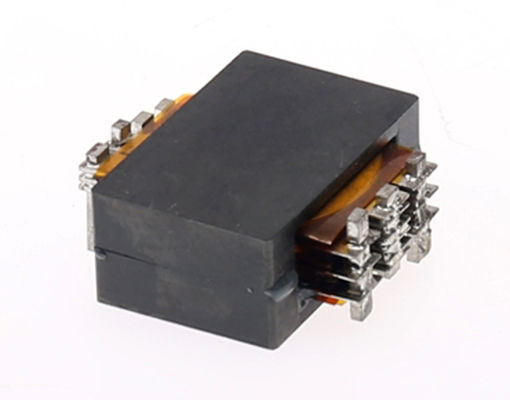

12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer

12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer
12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer 12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer 12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer

Large Image :  12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TPQ18D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Type: Power Transformer Operating Frequency: 100KHz
Core: Mn-Zn Ferrite Thickness: 12.5mm
Operation Temperature: -40℃ To +125℃ Customized: Customized
High Light:

Ferrite Planar Transformer

,

100KHz Planar Transformer

,

Planar Power Transformer

Planar Power Transformer , PQ Type Ferrite PCB Planar Transformers



APPLICATIONS:

  • High performance DC/DC converters.
  • High efficiencies up to over 98 percent, high power density of 500 watts per cubic inch DC/DC converters.
  • For forward, full-bridge, half-bridge and push-pull DC/DC converters.
  • Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
  • Applicable to aerospace, communications, rail transportation, inverter, UPS, digital home appliances, LED lighting and other fields





FEATURES:

  • Power Rating Up to 65 Watts
  • High Efficiency of Over 98%
  • High Isolation (operational) 1500 Vdc
  • Operating Frequency 100KHz
  • Operating Temperature -40℃ to +125℃
  • High Creepage and Clearance distances between primary and secondary
