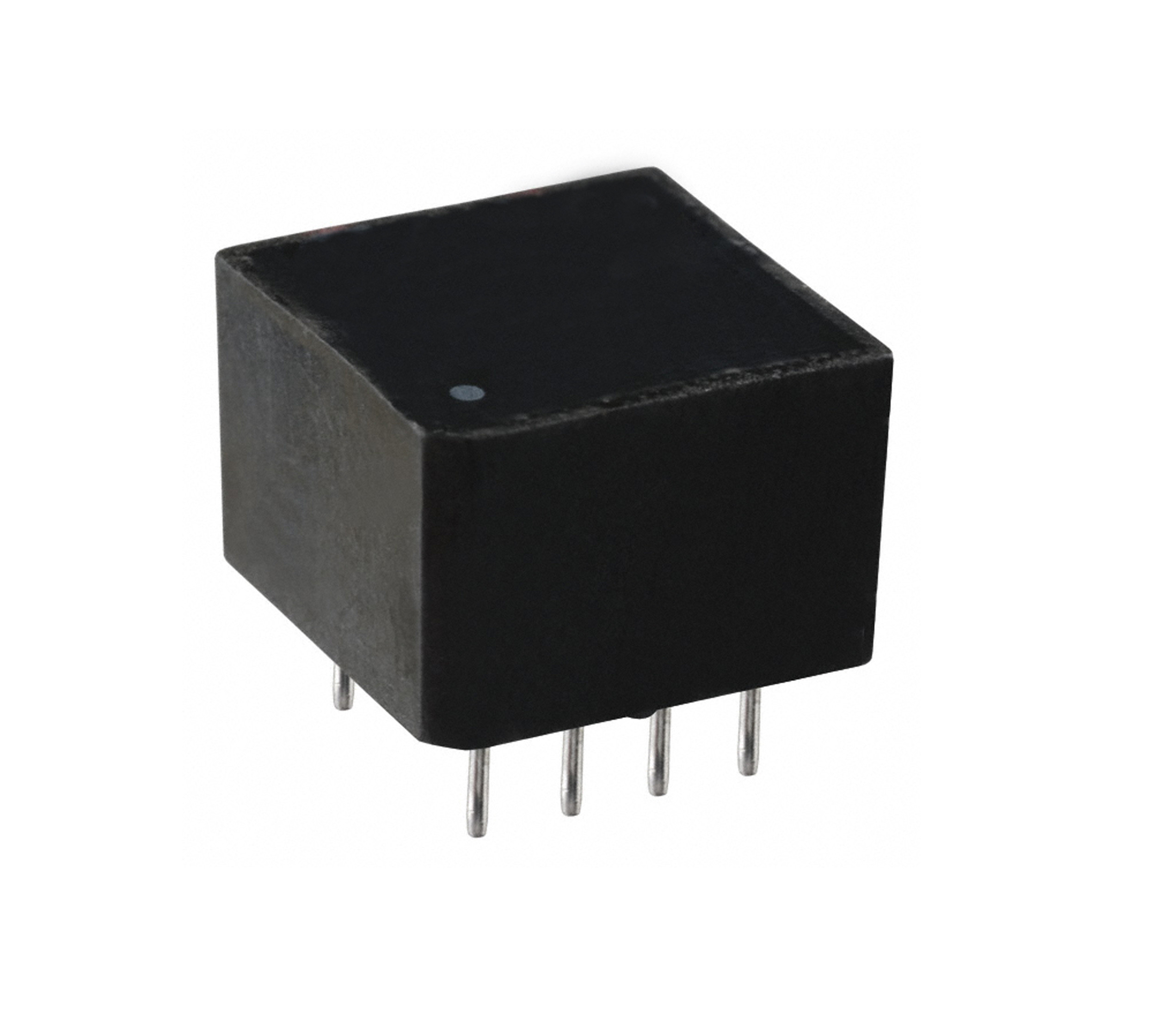

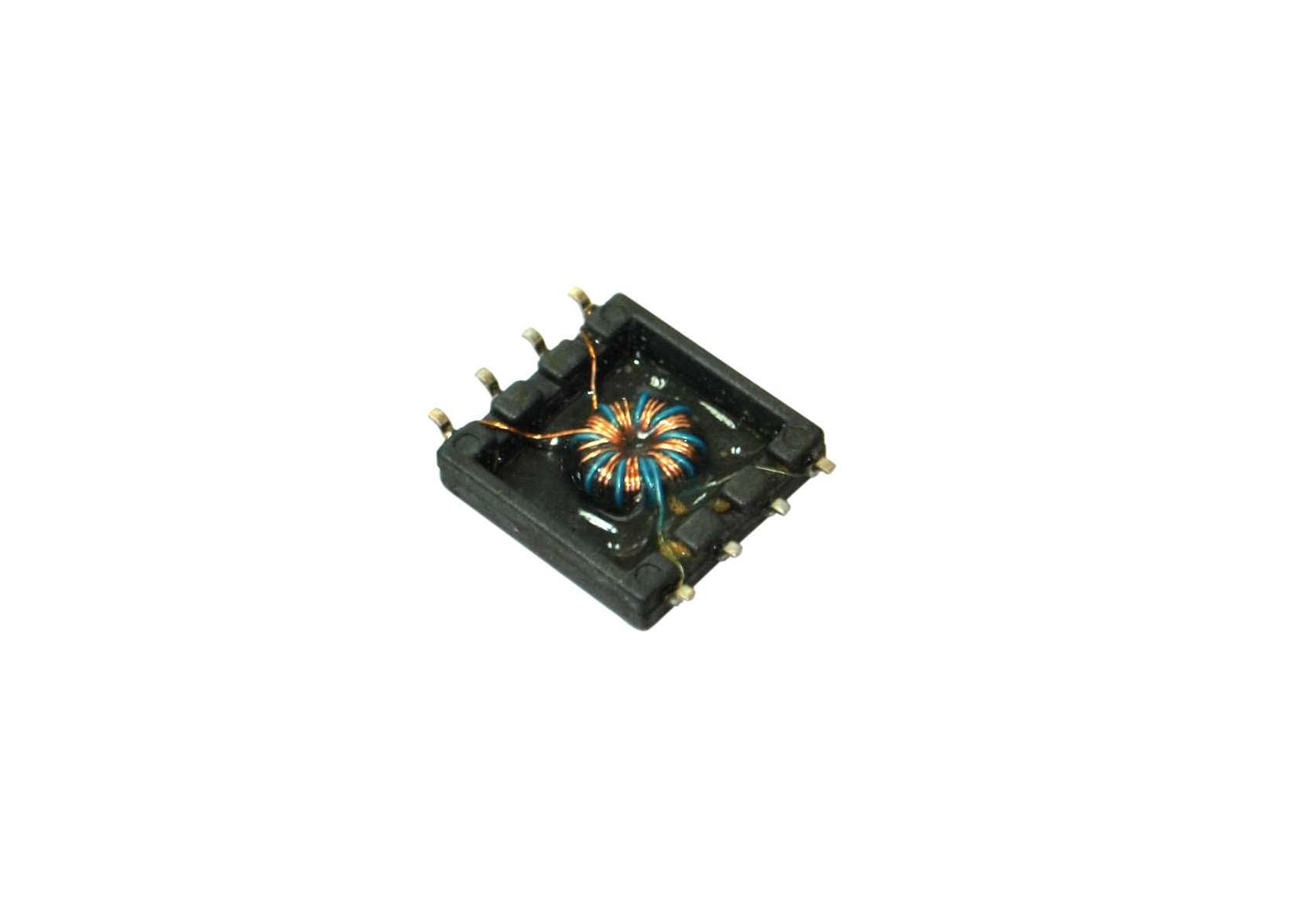

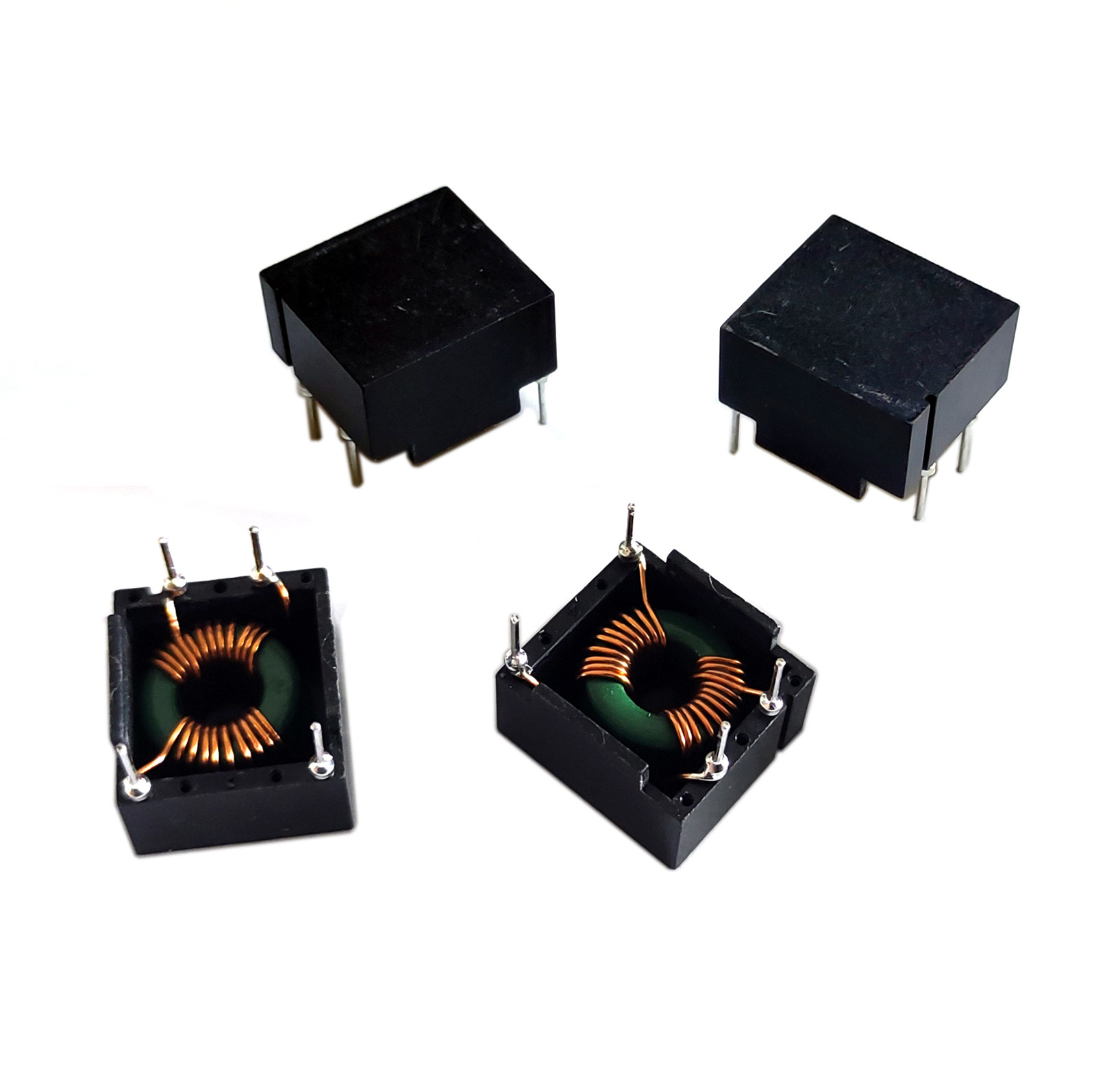

2KV High Isolation Pulse Transformer For Burner Ignition

High Isolation Transformer , High Frequency Signal Pulse Transformer

       Working principle of pulse transformer A transformer that uses the magnetic saturation property of the core to convert the input sine wave voltage into a narrow pulse output voltage.Can be used for burner ignition, thyristor trigger, etc.

Features:

• .Fully encapsulated
• .Low leakage inductance,winding capacitance,and D.C. Resistance
• .Low profile
• .Low insertion loss
• .Frequency range 10 kHz to 500 MHz
• .RoHS compliant
• .All specifications subject to change without notice.

Electrical specification:

• Turns ratio: N1:N2=1:1.2±5%
• Inductance(1-5): 220uH+35%/-25%@10KHz,0.1V
• Inductance(9-7): 320uH+35%/-25%@10KHz,0.1V
• DCR(1-5): 30mΩ Max
• DCR(9-7): 35mΩ Max
• Hi-Pot: 2.0KVac,2mA,60S N1 to N2
• Operating temperature: 0℃ to +85℃
• Storage temperature: -40℃ to +85℃
