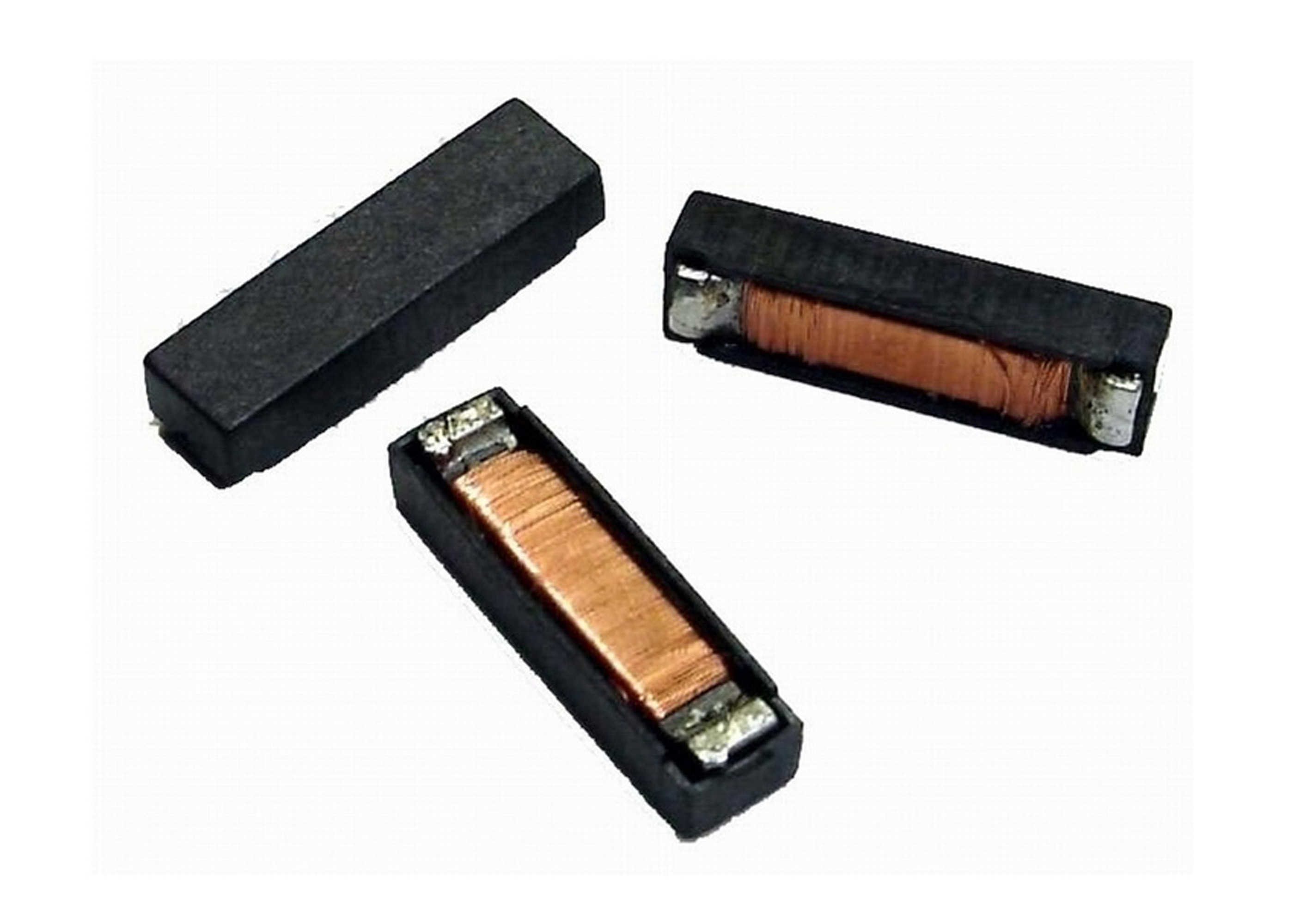

6.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System

6.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System
6.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System 6.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System 6.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System 6.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System

Large Image :  6.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDTR Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Size: 6.6X2.9X2mm Inductance: 2.38mH ~ 9mH
Tolerance: ±5% Frequency: 125KHz
Type: Antenna RFID Coil Operating Temperature: -30℃ To +100℃
High Light:

Car Access System RFID Coil Antenna

,

6.6 X 2.9 X 2 mm RFID Coil Antenna

,

125KHz RFID Coil Antenna

RFID Antenna Coils For RFID System ,Car Access System



Features:

  • Robust construction for a high mechanical stability
  • Qualified to AEC-Q200
  • Suitable for pick and placeand AOI(Automatic Optical Inspection)
  • Suitable for lead-free reflow soldering
  • RoHS-compatible





Applications:

  • Tire pressure monitoring systems.
  • Keyless entry Systems.
  • Industrial applications.
  • Access control.
  • The specification chart is a reference guide for the most common requiredvalues at working frequencies of 125 kHz. Any other inductance value at L For tighter tolerances can be provided. Please contact our sales deparmentfor any inqui
  • Operating temperature: -30 to +100 °C

6.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System 06.6X2.9X2mm RFID Coil Antenna 125KHz Car Access System 1



For More RFID antenna coil, Please Go To Our Website Or Contact Us.
