High Frequency Broadband Conical Inductors High Impedance 10MHz To 40GHz

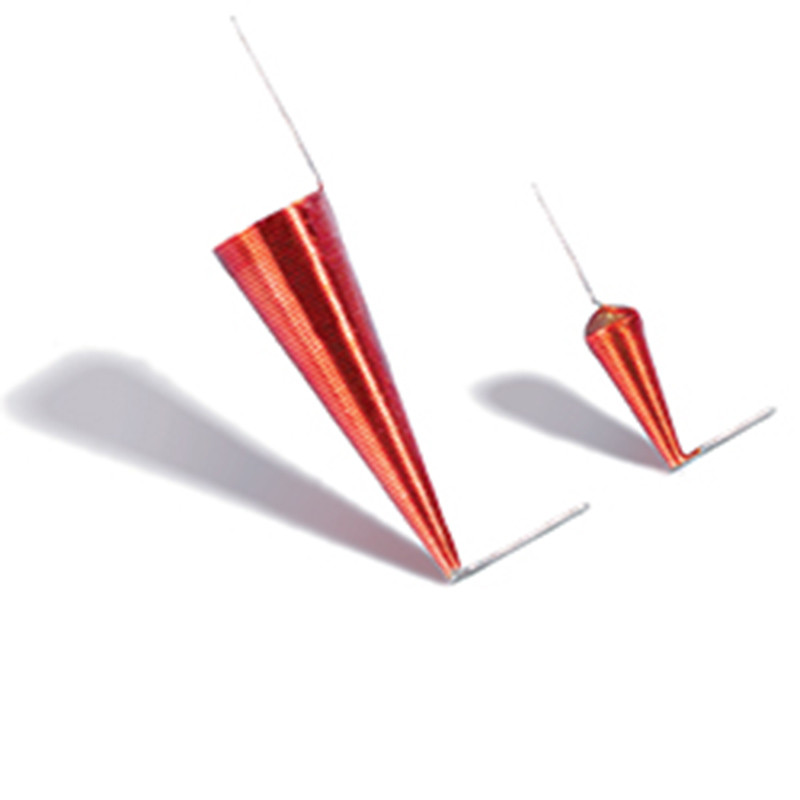

Broadband Conical Inductors with “Flying Leads”

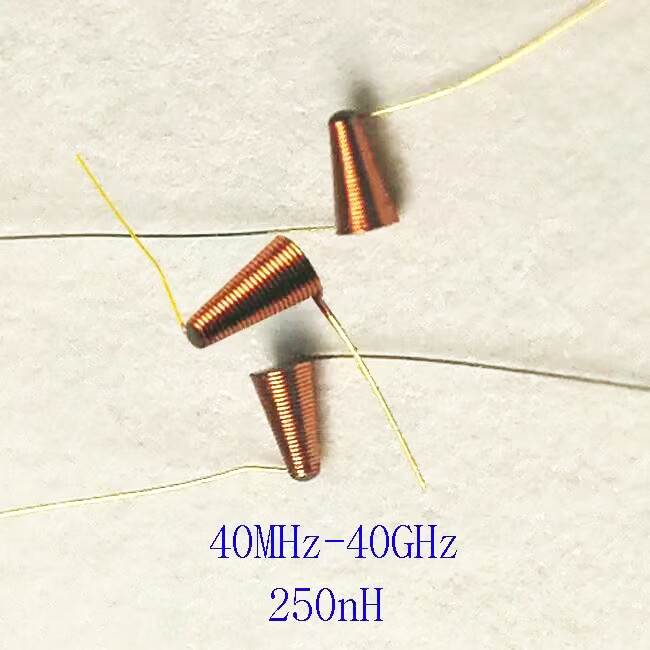

Our inductors were designed specifically for broadband and high frequency applications, operating as a series of narrow-band inductors across a frequency range of 10 MHz to 40 GHz. They are ideal for use in ultra-wideband bias Tees. Their “flying leads” allow precise positioning and adjustment of the mounting angle.



Features:

• Flat bandwidth with high impedance to 40 GHz. Ideal for use in bias Tees
• Operates as a series of narrow band inductors
• Limits effects caused by stray capacitance

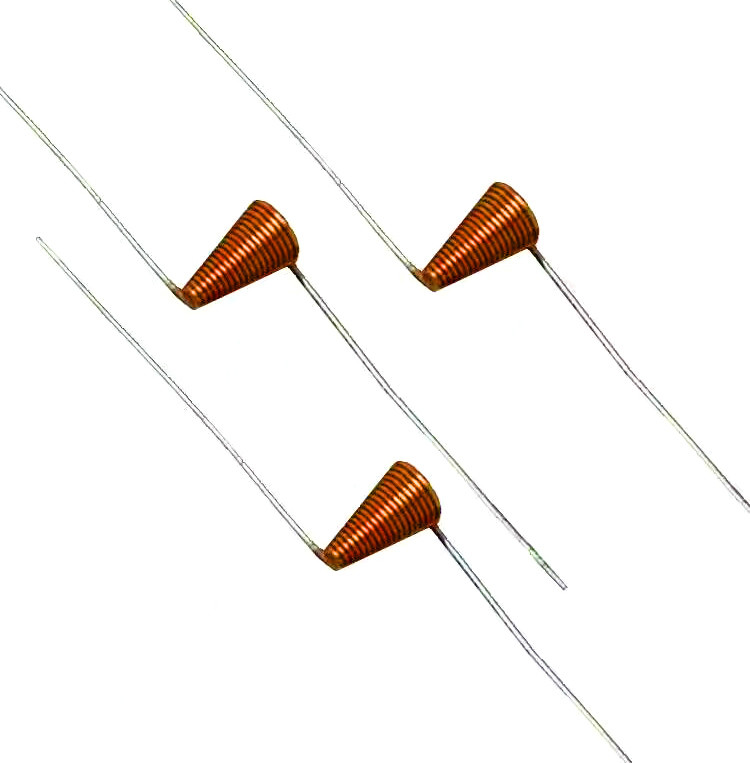

• "Flying leads" allow precise positioning and adjustment of the mounting angle
• Ambient temperature –40°C to +85°C with Irms current, +85°C to 125°C with derated current
• Storage temperature Component: –40°C to +125°C
• Tape and reel packaging: –40°C to +80°C
