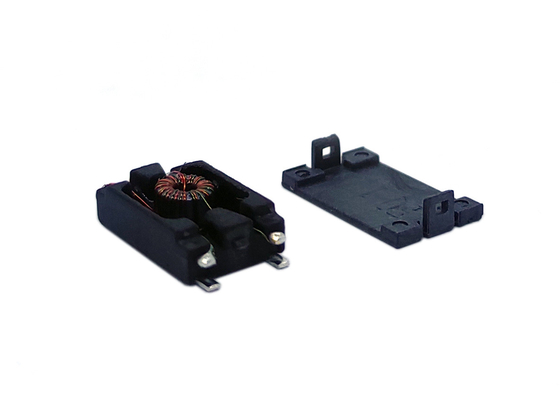

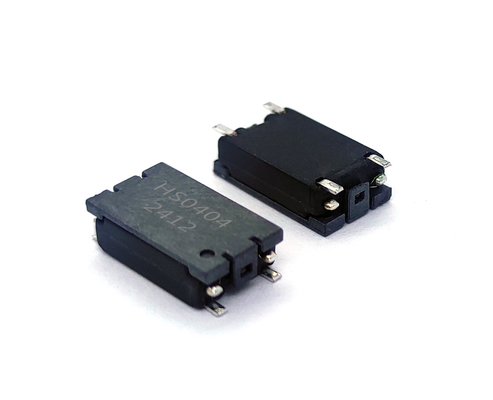

1 1 Turns Ratio LAN Coil Transformer For Stable Network Connections -0C To 70C

1 1 Turns Ratio LAN Coil Transformer For Stable Network Connections -0C To 70C
1 1 Turns Ratio LAN Coil Transformer For Stable Network Connections -0C To 70C 1 1 Turns Ratio LAN Coil Transformer For Stable Network Connections -0C To 70C

Large Image :  1 1 Turns Ratio LAN Coil Transformer For Stable Network Connections -0C To 70C Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HS0404
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Turns Ratio: 1:1 Inductance: 350uH Min
Name: LAN Transformer Hi-Pot: 3000Vrms
Operating Temperature: -0℃ To +70℃ Storage Temperature: -55℃ To +125℃
High Light:

Stable Network Connections LAN Coil Transformer

,

Ethernet LAN Coil Transformer

FEATURES:

  • 1:1 Turns Ratio
  • Compliant with IEEE802.3u and ANSI X.3.263
  • standards including 350 uH OCL with 8mA bias
  • Soldering methods:Wave,Reflow
  • Operating Temperature:0℃ to 70℃
  • Storage Temperature:-55℃ to 125℃



ELECTRONICAL SPECIFICATIONS :

  • Turns ratio: N1:N2=1:1
  • Inductance(2-1): 350uH Min@100KHz,0.1V
  • Lk(2-1): 1.0uH Max@100KHz,0.1V,Short 3,4
  • RDC(N1=N2): 0.55Ω Max
  • Interwinding capacitance: 20pF Max@100KHz,1V
  • Hi-Pot: 3.0KV,1mA,60S Coil to Coil
  • Operating temperature: -0℃ to +70℃
  • Storage temperature: -55℃ to +125℃

1 1 Turns Ratio LAN Coil Transformer For Stable Network Connections -0C To 70C 0

Tag:

lan magnetic transformer,

lan isolation transformer,

ethernet magnetic transformer
