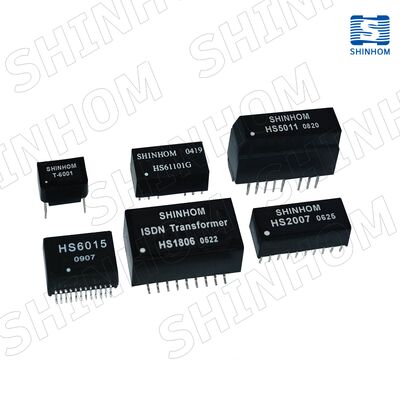

High-Performance 16-Pin DIP LAN Transformer with High Voltage Isolation and RoHS-Compliant for Telecom Line Applications

The ISDN S-Interface 16-Pin DIP LAN Transformer is a high-performance through-hole component engineered for telecommunication line interface applications. It delivers exceptional longitudinal balance, high voltage isolation, and reliable signal integrity, making it ideally suited for ISDN, LAN, and telecom network equipment.

This transformer features a DIP-mountable package and meets the pulse waveform template of CCITT 1.430 when used with the recommended transformer-chip pair. It is also RoHS compliant, ensuring environmentally friendly and safe deployment.

• 16-Pin DIP Through-Hole Design - Easy integration into standard PCB layouts
• High Voltage Isolation - ≥2kVrms for safe and stable telecom operation
• Excellent Signal Balance - Maintains high longitudinal balance for reliable data transmission
• Standards Compliance - Conforms to CCITT 1.430 waveform template and RoHS Directive
• Robust and Reliable - Optimized for ISDN and LAN telecommunication systems

• ISDN S-interface communication lines
• LAN networking modules
• Telecom line interface equipment
• Industrial and consumer telecom devices
