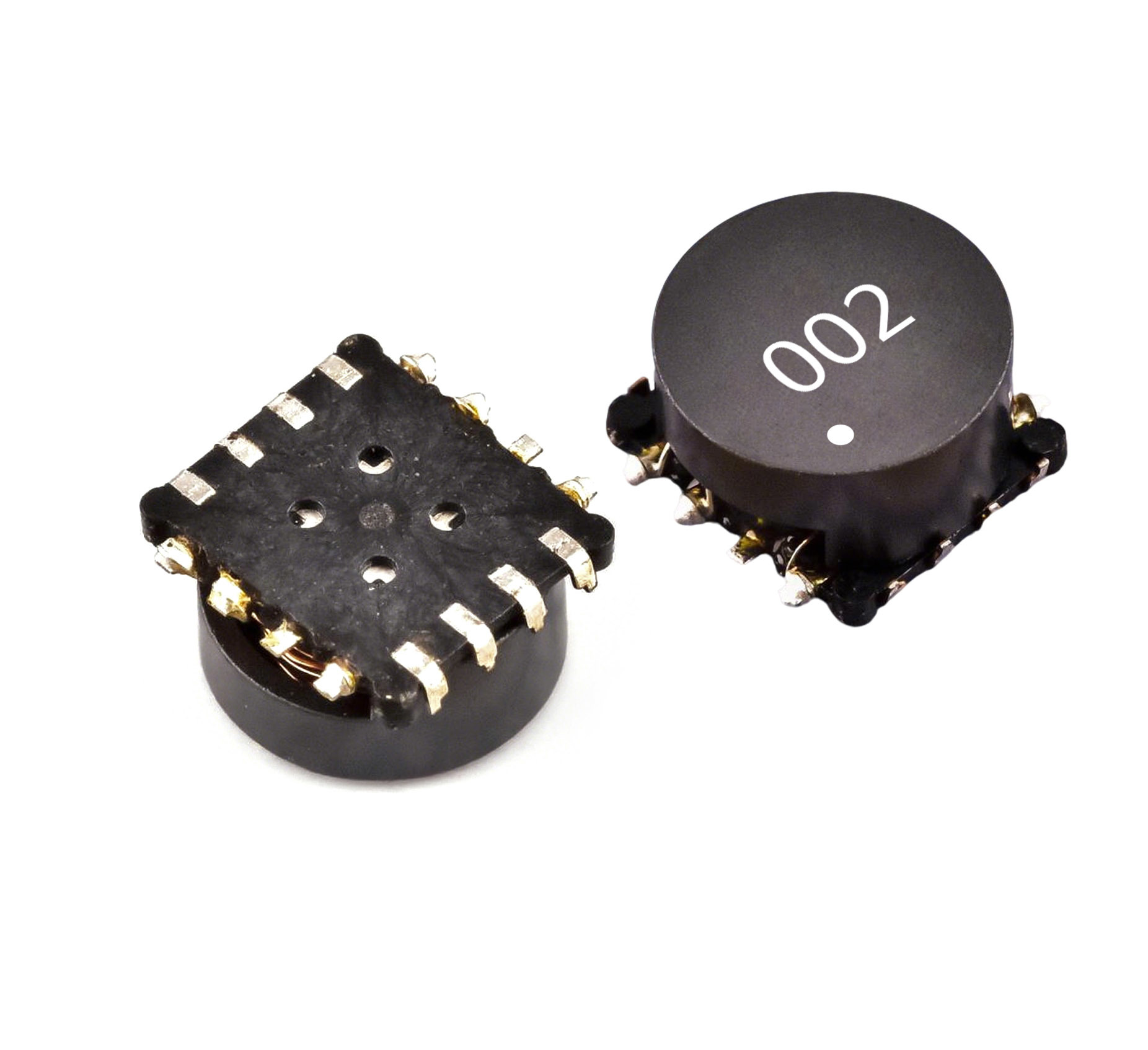

Photoflash Capacitor Charging Transformer SDRS Series

Engineered for rapid energy transfer in compact photoflash systems, the SDRS5630T Series delivers high-efficiency capacitor charging with turns ratios up to 1:25. Its low-profile design and minimized leakage inductance ensure stable performance across industrial temperature ranges (-20°C to +110°C). Optimized for surface mounting (SMD), these transformers feature reinforced insulation (500Vrms withstand voltage) and precision winding for consistent pulse energy delivery in space-constrained applications.

Features

• Ultra-Low Profile: 5.8mm max height for PCB space optimization.

• Minimized Leakage Inductance: Enhances energy transfer efficiency.

• Extended Operating Temp: -20°C to +110°C reliability.

• Surface-Mount (SMD): Automated assembly compatibility.

• High Voltage Isolation: 500Vrms withstand voltage.

• Tape-and-Reel Packaging: Streamlined production (noted as "Rolls Completion" in datasheet).

  Electrical Characteristics

  Part Number	Turns Ratio (Np:Ns)	Pri Inductance (μH) ±20%	Sec Inductance (mH) Ref.	Pri DCR (mΩ)	Sec DCR (Ω)
  SDRS5630T-001	1:15	16.1	3.5	392	85.0
  SDRS5630T-002	1:10.2	8.5	0.8	370	20.0
  SDRS5630T-003	1:15	10.0	2.2	250	52.1
  SDRS5630T-004	1:25	10.0	6.3	250	85.4
  SDRS5630T-005	1:15	9.9	2.2	252	52.1
  SDRS5630T-006	1:17	18.5	4.7	418	75.8

  Note: Datasheet lists duplicate SDRS5630T-004 entry; table reflects unique models only.




  Physical Characteristics

  • Dimensions: 5.6±0.2mm (W) × 3.0mm max (H) × 5.8mm max (L).

  • Terminal Configuration: 8-pin design (see winding diagram: Pin 1-4 = Np, Pin 5-8 = Ns).

  • Mounting: Pad layout optimized for SMD reflow soldering.




  Applications

  • Digital Imaging: High-speed capacitor charging for DSLR/compact camera flash units.

  • Strobe Lighting: Energy-efficient pulse generation in portable photoflashes.

  • Industrial Sensors: Trigger circuits requiring rapid high-voltage discharge.

  • Medical Devices: Compact flash systems for endoscopic/diagnostic equipment.




  Compliance & Packaging

  • RoHS-compliant materials.

  • Standard tape-and-reel packaging ("Rolls Completion").
