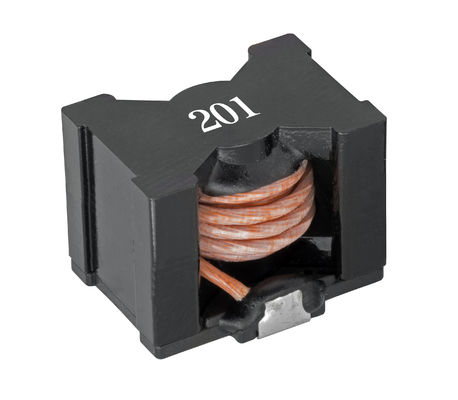

Robust Assemblage Design Power Inductor for High Current Applications with Wide Temperature Range

5000
MOQ
Robust Assemblage Design Power Inductor for High Current Applications with Wide Temperature Range
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Robust Assemblage Power Inductor

,

High Current Applications Inductor

,

Wide Temperature Range Inductor
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: SPQ2620
Document: SPQ2620 Series_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
Robust Assemblage Design Power Inductors for Automotive & Industrial Power Systems
Designed for resilience and performance in challenging environments, the SPQ2620 Series represents a class of high-efficiency High Current Power Inductors. Featuring a unique assemblage construction that ensures a sturdy and reliable physical structure, these components deliver high inductance and current handling with low magnetic loss and ESR. As a superior Power Inductor solution, it maintains stable performance across an extensive operating temperature range from -40°C to +125°C, making it an indispensable Electronic Component for demanding power conversion applications.
Key Features:
  • Rugged Assemblage Design: Engineered with a robust structural design that enhances mechanical stability and longevity under stress and vibration.
  • High Performance in High Current Applications: Excels as a High Current Inductor, offering a balance of high inductance values and impressive saturation current (Isat) and RMS current (Irms) ratings.
  • Built for Extreme Environments: Operates reliably across a wide temperature range (-40°C to +125°C), positioning it as an ideal Wide Temperature Inductor for automotive and industrial settings.
  • Optimized Electrical Characteristics: Combines high inductance with low magnetic loss, low ESR, and small parasitic capacitance for enhanced power conversion efficiency.
Specifications (SPQ2620 Series Examples):
Part Number Inductance @100kHz, 0.25V (uH) ±20% DCR (mΩ) Max Isat (A) Max Irms (A) Max
SPQ2620-220M 22 5.39 21.7 24.05
SPQ2620-330M 33 7.59 16.4 20.05
SPQ2620-470M 47 21.23 13.5 11.65
SPQ2620-101M 100 25.19 9.4 10.5
SPQ2620-681M 680 130.3 3.0 4.3
Test Conditions: Inductance measured at 100 kHz, 0.25 Vrms.
Isat: DC current that causes inductance to drop by approximately 30%.
Irms: DC current that causes an approximate 40°C temperature rise.
Operating Temperature: -40°C to +125°C (including coil's temperature rise).
Applications
The SPQ2620 Series is engineered for stability and efficiency in a wide range of high-power scenarios:
  • Automotive Electronics: Engine control units (ECUs), advanced driver-assistance systems (ADAS), and LED lighting drivers.
  • Industrial Power Systems: PLCs, motor drives, and robust power supplies for factory automation.
  • Telecom & Computing Infrastructure: High-current point-of-load (POL) converters and server power modules.
  • Renewable Energy: Power optimizers and inverters for solar and wind energy systems.
