Flat Wire Low Profile High Current Inductor , Reactor

Negotiation
MOQ
Negotiation
Price
Flat Wire Low Profile High Current Inductor , Reactor
Features Gallery Product Description Chat Now
Features
Specifications
Wire: Flat Copper Wire
Inductance Range: 270uH
Test Frequency: 10KHz,0.1V
Tolerance: ±12%
Operating Temperature: -40℃ - +125℃
Current: Up To 100A
Highlight:

High Current Inductor Reactor

,

Low Profile High Current Inductor Reactor

,

Flat Wire High Current Inductor Reactor
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RL Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

Flat Wire Low Profile High Current Inductor , Reactor



FEATURES:

  • Flat wire used
  • Excellent Thermal Stability
  • Low Profile, Low DCR.
  • Super Larg Current up to 100A
  • Rated voltage: 300V
  • Custom Inductors are available



APPLCATIONS:

  • Notebook, DC/DC Converters
  • Communication System
  • Automotive Systems Power supplier
  • LCD PDP Televisions
  • Network Systems
  • Computer Peripheral Equipment
  • CPU Power Supply



NOTES:·

  • Inductance Testing: HP4284A, 100kHz/1V or equivalent
  • RDC:QuadTech 1880 Milliohmmeter
  • Irms Temperature rise 40℃Max Reference Ambient temperature
  • Solderability: 75% of the lead wire Shall be covered
  • Soldering Methods: Wave,Reflow
  • Operating Temperature:-40℃ to +105℃
  • Storage Temperature: -55℃ to +125℃
  • Moisture resistance: △L/L≤±10% △Q/Q≤±25%

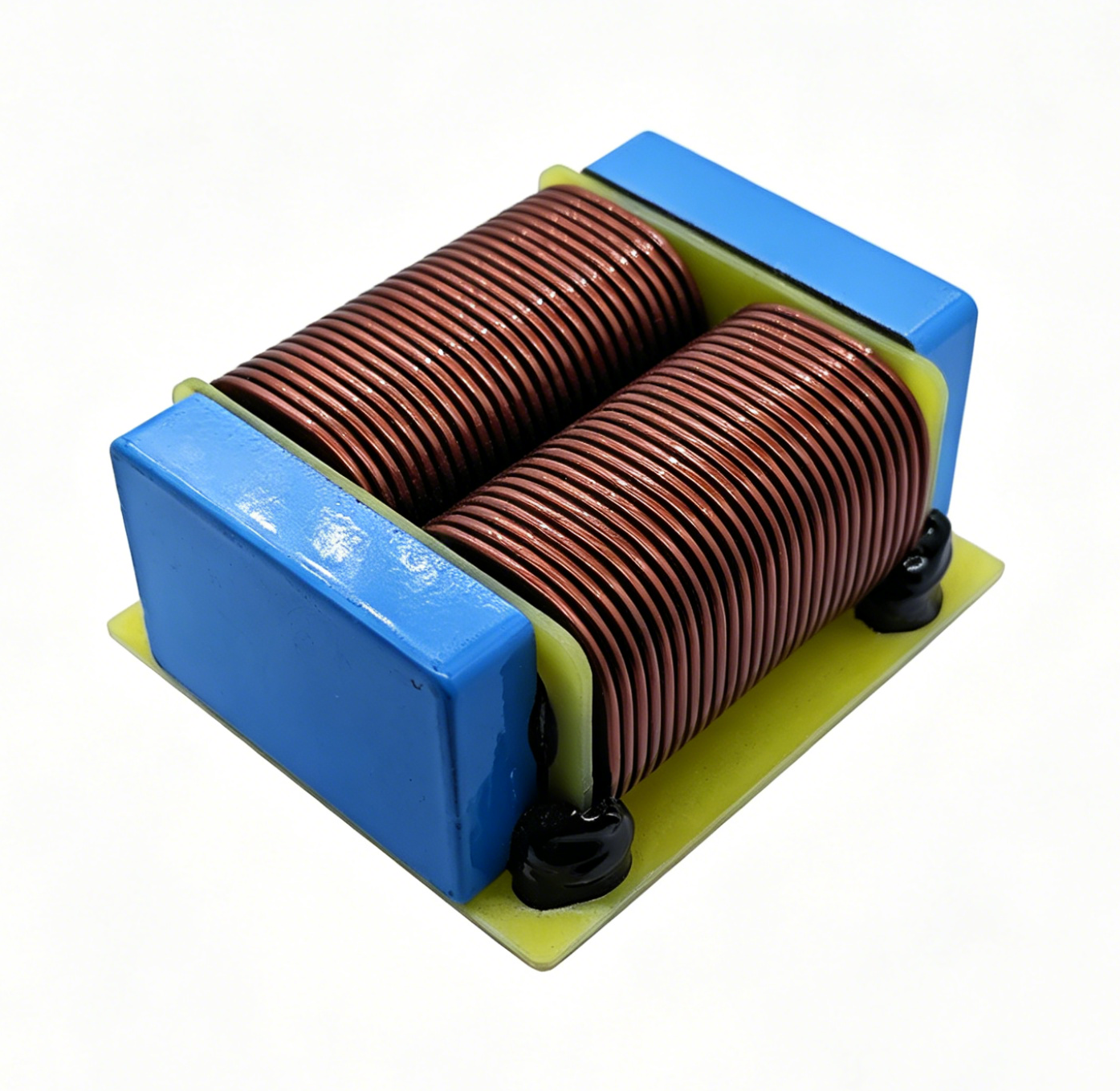

Flat Wire Low Profile High Current Inductor , Reactor

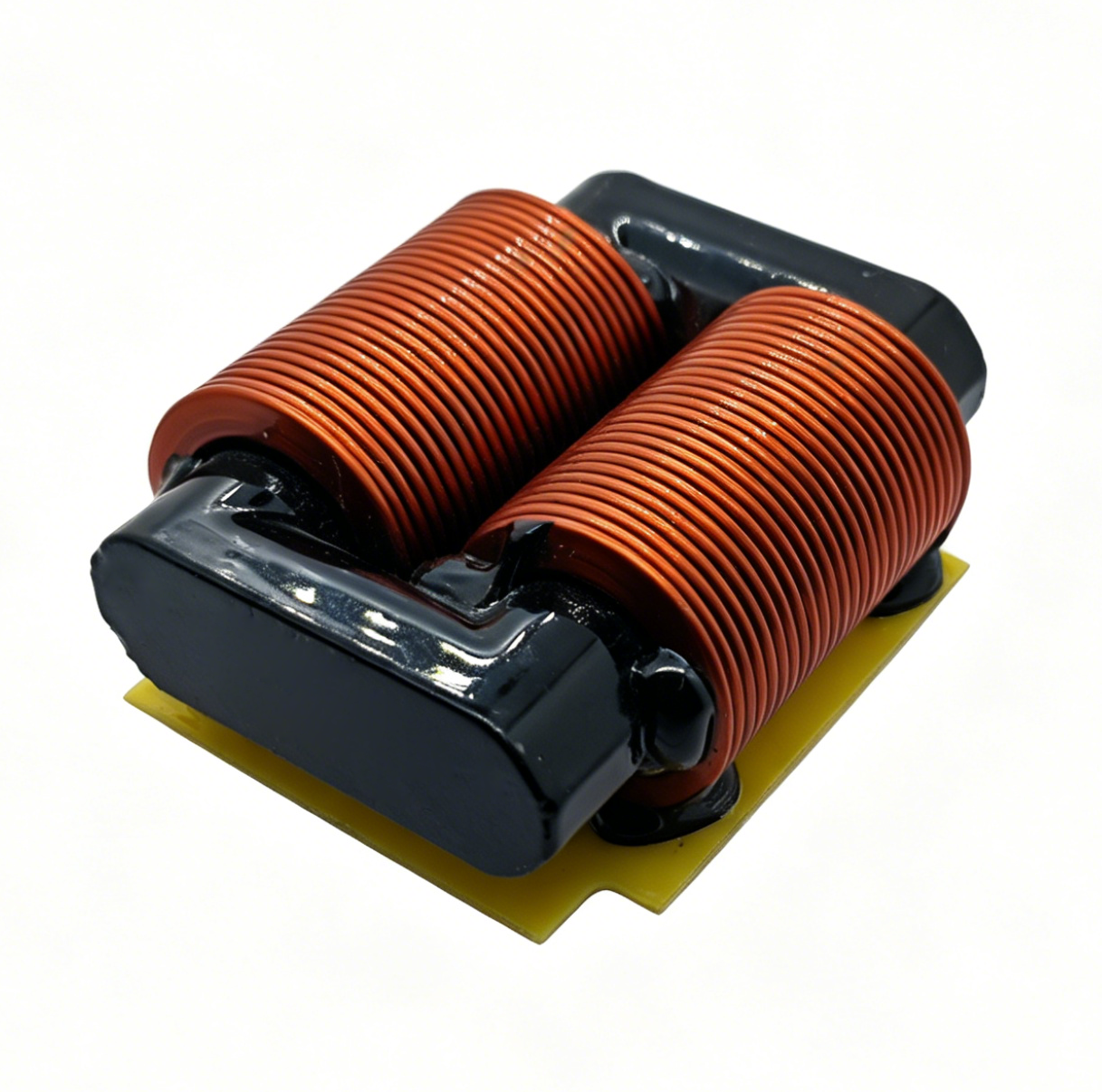

Flat Wire Low Profile High Current Inductor , Reactor



Note: Product specifications can be customized.
