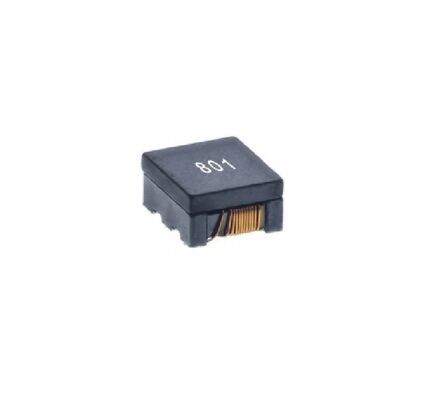

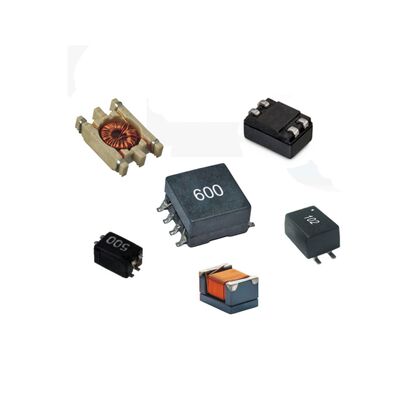

Wire Wound Common Mode Choke with 800Ω @100MHz Impedance, Lead-free and Compact Design for EMI Suppression

5000
MOQ
Wire Wound Common Mode Choke with 800Ω @100MHz Impedance, Lead-free and Compact Design for EMI Suppression
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

800Ω @100MHz Common Mode Choke

,

Lead-free Wire Wound Choke

,

Compact EMI Suppression Component
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: SF1008F-3W-801Y
Document: SF1008F-3W-801Y_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
High-Performance Wire Wound Common Mode Filter for EMI Suppression
Engineered for effective electromagnetic interference (EMI) suppression in high-speed data and power lines, the SF1008F-3W-801Y wire wound chokes provides high common mode impedance at 100MHz, ensuring excellent noise suppression performance. As a compact and low-profile common mode filter, it is ideal for space-constrained applications. This EMI suppression component is 100% lead-free, halogen-free, and RoHS compliant, meeting stringent environmental standards. With an operating temperature range of -40°C to +125°C, it delivers reliable performance in demanding environments.
Key Specifications
Parameter Value
Common Mode Impedance @100MHz 800Ω ±25%
Rated Voltage (Max) 20V
Rated Current (Max) 0.15A
DC Resistance (DCR) (Max) 1.6Ω
Insulation Resistance (Min) 10MΩ
Operating Temperature Range -40°C to +125°C
Product Features
  • Wire wound construction for robust performance
  • 100% Lead-free, Halogen-free, and RoHS compliant
  • Small size and low profile design
  • Wide operating temperature range including self-temperature rise
  • High common mode impedance for effective EMI suppression
Applications
  • Noise filtering in high-speed differential data lines (USB, HDMI, LVDS)
  • Power line EMI suppression in compact electronic devices and modules
  • Communication equipment and networking devices
  • Consumer electronics requiring stringent EMC compliance
  • Automotive infotainment and control systems
Frequently Asked Questions
What is the main advantage of a wire wound common mode filter over other types?
The wire wound construction typically allows for higher common mode impedance and better high-frequency performance compared to multilayer chip types, making it more effective for suppressing EMI in critical signal integrity applications.
How do I interpret the impedance rating of 800Ω @100MHz?
This means the filter presents an impedance of 800Ω (typical) to common-mode noise currents at a frequency of 100MHz. A higher impedance at the noise frequency results in greater attenuation of that noise.
Can this filter handle higher currents for power line applications?
The rated current is 0.15A Max. It is designed for low-current signal or power lines. For higher current power rail filtering, please select a model with a correspondingly higher current rating.
What does "halogen-free" mean and why is it important?
Halogen-free means the product does not contain chlorine, bromine, or other halogens above certain thresholds. This is important for environmental safety and is often required in green electronics initiatives, as it reduces the emission of toxic gases in case of fire.
