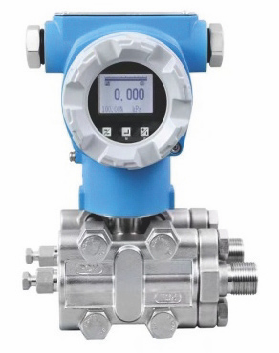

Rugged Differential Pressure Transmitter for Industrial Flow and Level Monitoring

Built for reliable pressure difference monitoring, this differential pressure transmitter series is trusted in aviation, petrochemical, and environmental systems. The monocrystalline silicon sensing element delivers exceptional long-term stability, while the 316L diaphragm construction ensures durability in demanding conditions. With the SMP7701 model supporting HART communication and remote flange options available for tank level applications, this series adapts to diverse installation requirements. From micro-pressure clean gas monitoring to heavy industrial processes, these differential pressure transmitters provide consistent, dependable performance.

• Pressure Type: Differential pressure
• Range: 0~250Pa ~ 10MPa
• Output Signal: 4~20mA, 0~5V, 0.5~4.5V, 0~10V, 4~20mA+HART
• Diaphragm Material: 316L stainless steel
• Construction: Monocrystalline silicon sensor technology
• Protection: High static pressure resistance, EMI immunity
• Durability: Resists >1 million pressure cycles, overload protection
• Special Versions: Single flange, dual flange remote transmission

• Flow Measurement: Orifice plate, venturi, and pitot tube flow monitoring using differential pressure transmitters.
• Tank Level: Open and closed vessel level measurement with single flange DP transmitters.
• Filter Monitoring: Filter differential pressure monitoring to indicate replacement needs.
• Petrochemical: Pipeline differential pressure, reactor monitoring with industrial DP transmitters.
• HVAC: Air duct static pressure, clean room differential pressure using micro DP transmitters.
• Water Treatment: Pump differential pressure, membrane filter monitoring

Q: What is a differential pressure transmitter and how does it work?
A: A differential pressure transmitter measures the pressure difference between two points. This industrial DP transmitter uses a monocrystalline silicon sensor to detect the differential pressure and converts it to a standard output signal for monitoring and control applications.

Q: How does the monocrystalline silicon differential pressure transmitter differ from standard models?
A: The SMP7701 monocrystalline silicon differential pressure transmitter offers higher accuracy, better stability, and includes HART protocol communication, enabling remote configuration and diagnostics. It is ideal for demanding applications requiring smart differential pressure transmitter capabilities.

Q: Can the micro differential pressure transmitter handle corrosive gases?
A: The SMP7003 micro differential pressure transmitter is designed for non-corrosive clean gas pressure measurement. For corrosive media, please consider our other differential pressure transmitter models with suitable materials.
