Self-Locking Split-Core CT SCTK731 Series for Power Distribution and HVAC

Negotiation
MOQ
Negotiation
Price
Self-Locking Split-Core CT SCTK731 Series for Power Distribution and HVAC
Features Gallery Product Description Chat Now
Features
Specifications
Current Range: 5-5000A
Output: 0-5A
Accuracy: 0.5、1.0、3.0
Specification: Split Core
Insulating Medium: Epoxy Resin
Customizable: Yes
Highlight:

Self-Locking Split-Core CT

,

Split-Core CT for Power Distribution

,

HVAC Split-Core Current Transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK731 Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

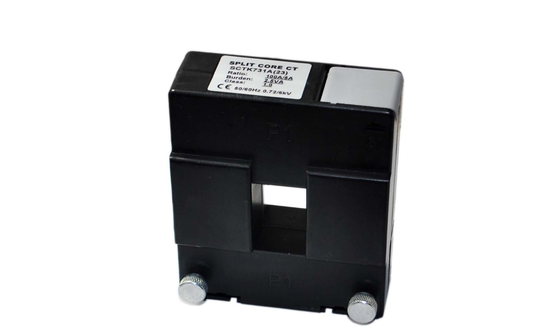

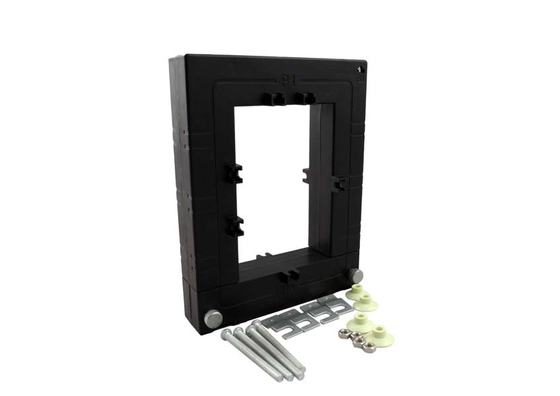

The SCTK731 series split-core current transformer is designed for current measurement and monitoring in new or existing power distribution networks. The product uses a split-core self-locking structure that allows quick installation without disconnecting or removing cables or busbars. The wide window design accommodates large-diameter cables or busbars.The secondary winding has a built-in precision parallel resistor, providing a safe low-voltage output without the need for external sampling resistors.Multiple sizes are available to adapt to various existing installation conditions.It is widely used for current measurement, monitoring, and protection in power lines and equipment, as well as current and power measurement for motors, lighting, air compressors, HVAC, and automation control systems, as well as energy monitoring and relay protection devices.

Features
  • Measuring range – 5A-5000A
  • Split-core self-locking structure
  • Built-in precision resistor – safe low-voltage output
  • Wide window – accommodates large cables and busbars
  • Multiple sizes available
  • Installation without cable removal
  • Suitable for new and retrofit projects
  • Saves installation time and cost
Applications
  • Power line current measurement and monitoring
  • Electrical equipment current protection
  • Motor current and power measurement
  • Lighting system power monitoring
  • Air compressor current monitoring
  • HVAC systems
  • Automation control systems
  • Energy monitoring and relay protection devices
Electrical Parameter
Frequency 50-400Hz
Rated Input 5A-5000A
Measuring range 5%In-130%In
Rated Output 0-5A
Ratio ≤ ± 0.5%
Phase angle ≤ ±30min
Dielectric strength 2.5KV/1mA/1min
Insulation Resistance DC500V/100MΩmin
Mechanical Parameter
Case PC /UL94-V0
Bobbin PC
Core Silicon steel
Internal structure Epoxy
Construction Screw
Operating Temp －25℃～＋75℃
Operating Humidity ≤85%
Output Connection Terminal
Type selection
P/N Rated Input (A) Output (A) Accuracy Dimensions(mm)
A B C D E F G H I
SCTK731A(23) 100-400A 1A/5A 0.5,1.0,3.0 20 30 50 88 104 34 41 40 31
SCTK731B(58) 250-1000A 1A/5A 0.5,1.0,3.0 50 80 78 114 145 32 32 33 33
SCTK731C(88) 250-1000A 1A/5A 0.5,1.0,3.0 80 80 108 144 145 32 32 33 33
SCTK731D(812) 500-1500A 1A/5A 0.5,1.0,3.0 80 120 108 144 185 32 32 33 33
SCTK731E(814) 600-5000A 1A/5A 0.5,1.0,3.0 80 140 122 176 228 47 47 53 38
SCTK731F(816) 800-5000A 1A/5A 0.5,1.0,3.0 80 160 120 176 246 48 48 53 38
SCTK731G(36) 100-3000A 1A/5A 0.5,1.0,3.0 30 60 88 132 131 49 36 55 43
SCTK731H(513) 100-4000A 1A/5A 0.5,1.0,3.0 55 130 80 125 195 35 30 53 35

Self-Locking Split-Core CT SCTK731 Series for Power Distribution and HVAC

Notes: Product specifications can be customized

FAQ

Q: What are the advantages of the self-locking structure?

A: The self-locking structure ensures the transformer remains securely locked onto the cable or busbar after installation. It will not loosen or shift due to vibration or external forces, ensuring safe and reliable installation. Operation is simple, and no special tools are required for installation or removal.

Q: What is the function of the built-in precision resistor?

A: The secondary winding has a built-in precision parallel resistor. It converts the current signal directly into a safe low-voltage output, eliminating the need for external sampling resistors. This simplifies installation, improves safety, and saves component costs and installation space.

Q: What applications can the 5-5000A measuring range meet?

A: The wide 5-5000A measuring range covers various applications from small to medium current equipment to large industrial power distribution systems, including current monitoring for motors, lighting, air compressors, HVAC, and main distribution lines.
