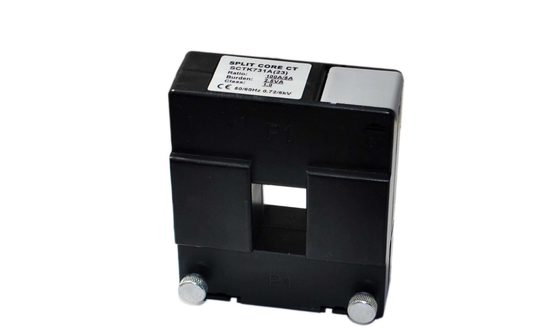

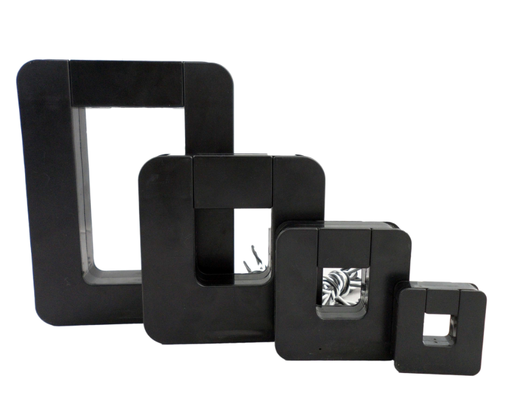

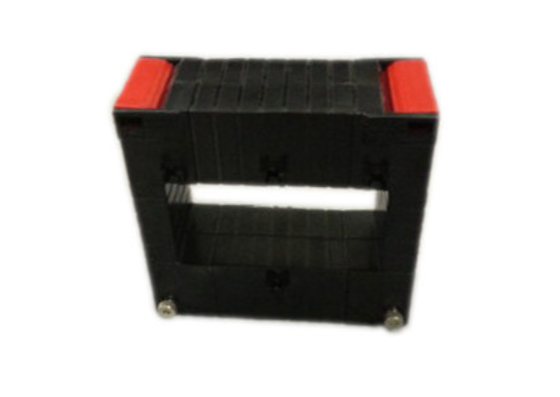

Split-Core CT SCTK732A Series for Motor Measurement and Power Distribution

Features:

1. Rated Input: 0.5-5000A
2. Rated Output: 0.333V(AC) or 0-5A
3. Small size and easy mounting
4. Wide inner window, allowing clamping of big cables or bus bars
5. Wide range of sizes to accommodate all existing installations
6. High accuracy and reliability

Applications

• Power line current measurement and monitoring
• Electrical equipment current protection
• Motor current and power measurement
• Lighting system power monitoring
• Air compressor current monitoring
• HVAC systems
• Automation control systems
• Energy monitoring and relay protection devices

Electrical Parameter

Mechanical Parameter

Type selection

FAQ

Q: What is the function of the built-in precision resistor?

A: The secondary winding has a built-in precision parallel resistor. It converts the current signal directly into a safe low-voltage output, eliminating the need for external sampling resistors. This simplifies installation, improves safety, and saves component costs and installation space.

Q: What applications can the 0.5-5000A measuring range meet?

A: The ultra-wide 0.5-5000A measuring range covers various applications from fine small-current monitoring to large industrial power distribution systems, suitable for energy metering, motor protection, main distribution line monitoring, and many other scenarios.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
