Name: EI Type Audio Transformer 20Hz-20kHz with Frame and Lead Wire for Telecom and Audio Equipment
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: AT1417
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Max. Output: 75mW

Type: Audio Transformer

Impedance Ratio: 20000Ω:600Ω

Operating Temperature: -25℃ To +125℃

Certification: ISO9001-2000, UL

Core Type: EI

Basic Infomation

Place of Origin: China

Brand Name: Shinhom

Certification: RoHS

Model Number: AT1417

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 4~8 Weeks

Payment Terms: T/T

Supply Ability: 1000000/MONTH

Gallery

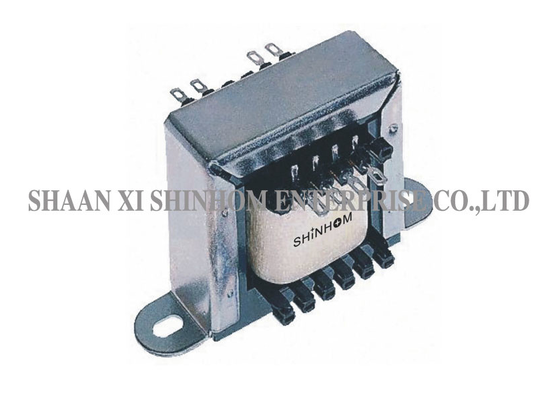

EI Type Audio Transformer 20Hz-20kHz with Frame and Lead Wire for Telecom and Audio Equipment

Product Description

Audio Transformers

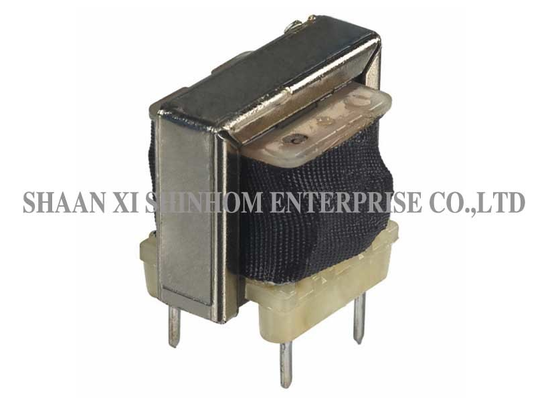

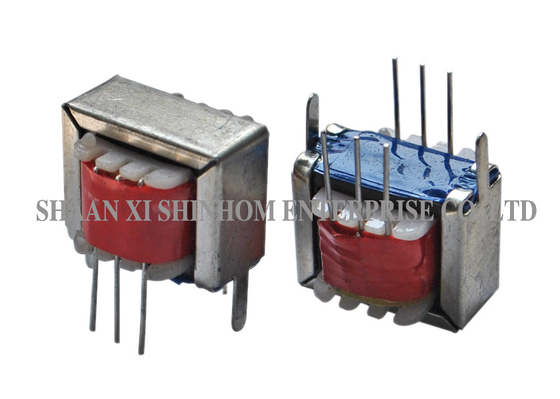

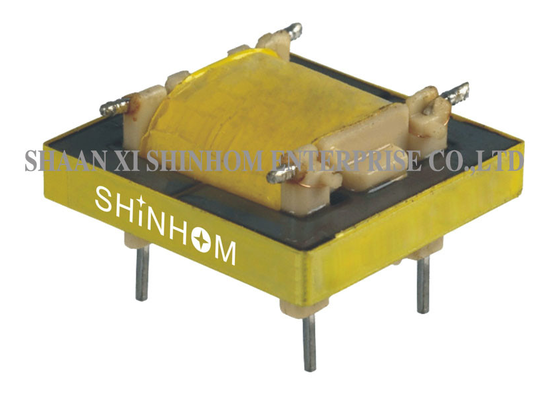

This EI-type audio transformer features a frame lead structure. Frequency range is 20Hz to 20kHz. Impedance is 20KΩ:600Ω. Maximum output is 75mW. Insulation resistance: >10MΩ @100VDC. Withstand voltage: 100VAC/1 minute. Frequency response: ±3dB (300Hz-3.4kHz @1kHz 0dB). The transformer is treated with vacuum wax impregnation. PC leads are soft metal wire that can be adjusted to suit various applications. It supports water washing processes with water temperature below 20°C. It is widely used in audio systems, telecom isolation, SMD fax modems, and PCMCIA applications.

FEATURES:

RoHS Directive-compliant
Audio transformer
Operating temperature:-25 to +125°C
Storage temperature: -25 to +85°C
Widely used in audio systems
Isolated telecommunication transformer
SMD fax modem telecom transformers SMD
Audio meets UL 1950 or EN60950 telecom transformer

Electrical specification

ImPedance: Pri: 20KΩ±10%@1KHz, SEC: 600Ω±10%@1KHz
DCR: Pri:693Ω±15% ,SEC:66Ω±15%
Breakdown voltage:100VAC HI-POT for 1minute
Insulation:>10MΩ@ 100VDC
Maximum output: 75mW
Frequency response:±3dB,300Hz-3.4KHz@1KHz 0dB Waxing:vacuum treatment
Other: can be water washed with water temperature less than 20℃
PC leads are soft metal wire and can be adjusted to fit a variety of applications

Applications

Audio systems
Telecom isolation
SMD fax modems
PCMCIA applications
Audio signal isolation
Broadcast equipment
Communication equipment
Audio impedance matching

Shinhom Policy of quality control

It is Shinhom surviving lifeline to seek for customer satisfaction,which can be gained by a combination of superior quality,reasonable delivery time , competitive prices as well as customer-oriented services,so as to ensure that the turned out products measure up to customers,demands.

FAQ

Q: What are the advantages of adjustable PC leads?

A: PC leads are made of soft metal wire that can be bent and adjusted according to different PCB layouts and installation requirements, improving installation flexibility and adaptability.

Q: What is the function of vacuum wax impregnation?

A: Vacuum wax impregnation provides moisture protection, enhances insulation performance, prevents windings from moisture and mildew, and improves product reliability and stability in humid environments.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
