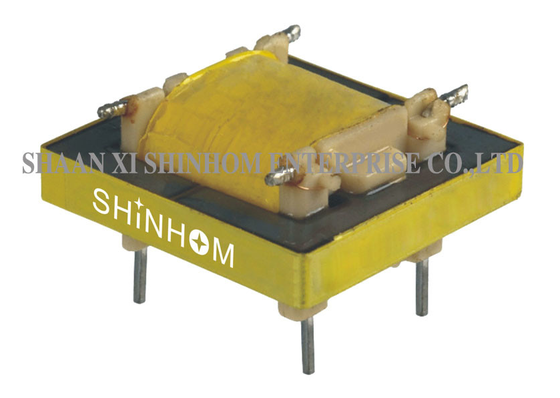

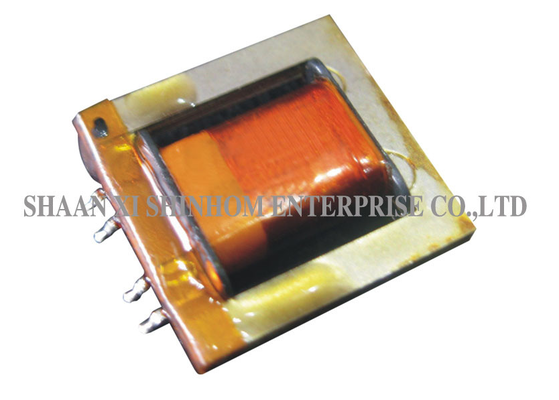

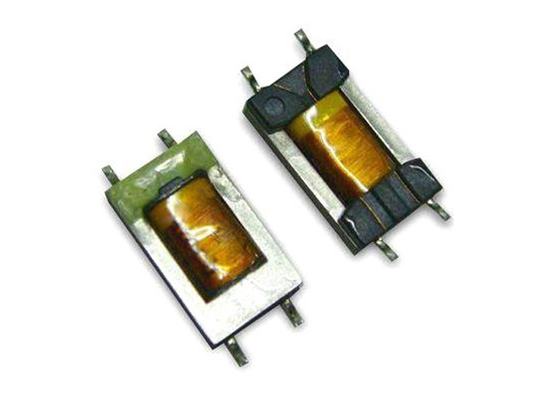

EI Type Audio Isolation Transformer 20Hz-20kHz 600:600Ω for Telephone Systems

This EI-type audio isolation transformer is designed for audio systems and telecom isolation applications. Frequency range is 20Hz to 20kHz. Impedance is 600:600Ω. Turns ratio is 1:1.Withstand voltage: 1250VAC/1mA/2 seconds (Primary-Secondary).It is widely used in telephone systems, PABX systems, modems, multimedia audio equipment, and telecom isolation applications.

Features

• Turns ratio – 1:1 (Pin1-3 : Pin6-4)

• Impedance – 600Ω ±10% @1KHz

• Primary inductance – 1.5H Min @250Hz, 0.5V

• DCR (Pin1-3 / Pin6-4) – 75Ω Max

• Insertion loss – ≤1.0dB @1KHz

• Frequency response – ±0.35dB Max (300Hz-4.0KHz)

• Return loss – ≥20dB @300Hz / ≥23dB @1KHz/4KHz

• Longitudinal balance – ≥70dB (200Hz-4.0KHz)

Electrical specification:

• Turns ratio: Pin1-3 : Pin6-4=1:1
• Pin1-3 inductance: 1.5H Min@250Hz,0.5V
• Impedance: 600Ω±10%@1KHz,0dB,4-6 W/H 600Ω Load
• Pin1-3 DCR: 75Ω Max
• Pin4-6 DCR: 75Ω Max
• Insertion loss: 1.0dB Max@1KHz,0dB,W/H 600Ω Load
• Frequency response: ±0.35dB Max@ 300Hz~4.0KHz
• Return loss: 20dB Min@ 300Hz
• 23dB Min@ 1KHz
• 23dB Min@ 4KHz
• Longitudinal BAL.: 70dB Min@200Hz~4.0KHz
• Hi-Pot: 1250VAC,1mA,2S Pri to Sec

• Operating temperature:-25 to +125°C

  Storage temperature: -25 to +85°C

Applications

• Telephone systems

• PABX private branch exchanges

• Modems

• Multimedia audio equipment

• Telecom isolation

• Audio signal isolation

• Broadcast equipment

• Communication equipment
