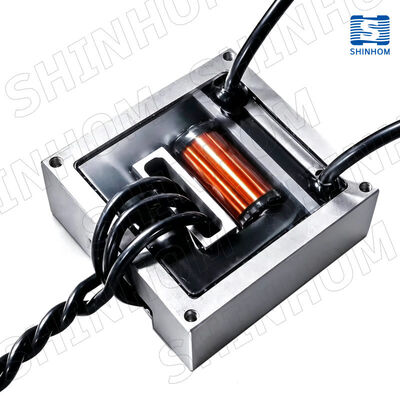

Ignition Transformer HTY6-122 7-12V Input 20KV Output 50W for Small Engines and Combustion Systems

The HTY6-122 high-voltage ignition transformer is designed for gas/oil burners, small engine triggering, and industrial ignition applications. With a turns ratio of 6:1200, it steps up a 7-12V low-voltage input to a high-voltage output of up to 20KV, providing strong ignition energy and fast response. Instantaneous power: 50W. Continuous operating power: 10W. Epoxy encapsulation ensures moisture-proof and vibration-proof performance. Operating temperature: -25 to +105°C, suitable for various harsh environments. It is widely used in gas burners, oil-fired boilers, small gasoline engines, ozone generators, and various industrial high-voltage pulse equipment.

Product Features

• Turns ratio – 6:1200 (1:200)
• Output voltage – up to 20KV
• Input voltage – 7-12V
• Instantaneous power – 50W
• Continuous operating power – 10W
• Primary inductance – 49µH
• Secondary inductance – 1.9H
• Operating temperature – -25 to +105°C

Product Specification Selection Table

Applications

• Gas water heater ignition devices
• Oil-fired boiler burners
• Small gasoline engine ignition
• Industrial ozone generators
• High-voltage pulse trigger circuits
• Gas cooker electronic ignition
• Industrial combustion control systems
• Scientific research high-voltage pulse sources
