EE EF Series High Frequency Power Transformer 0.5 to 10W for DC DC Converters

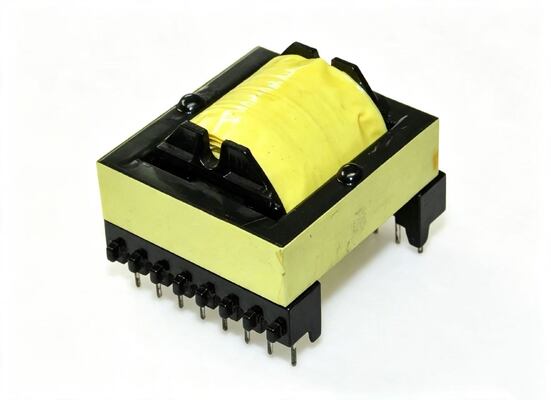

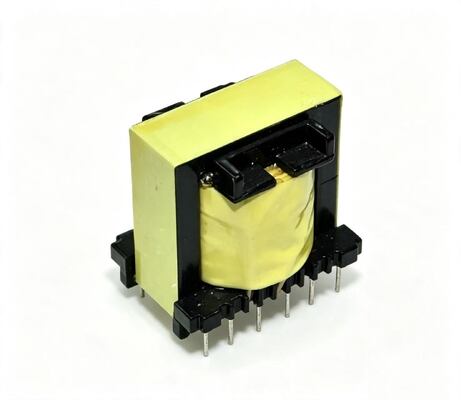

The EE/EF series ferrite flyback transformer is manufactured using high-quality core materials and advanced winding processes, specifically designed for switching power supplies and high-frequency circuits, ensuring wideband operation, low cost, and stable output.The product features a robust and reliable structure and supports multiple output power options. It meets wide operating temperature requirements.It is suitable for DC-DC converters, switching power supplies, and LED power boards. It is an ideal choice for flyback conversion in switching power supplies and high-frequency circuits.

Features

1. Operating Frequency: 30 ~ 500KHz
2. Output Power: 0.5 ~ 10w
3. Operating Temperature: -40ºC ~ +125ºC
4. Storage Temperature: -25ºC + 85ºC
5. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
6. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

Applications

1. DC/DC Converter Transformer
2. Current Transformer
3. Switching power supply, Adapter and UPS
4. Computer products
5. DVD
6. LED power board
7. LCD TV & Monitor Displays Power Boards
8. Consumer Electric Products & Battery Charger, Printers
9. Specially used in switching power supply and kinds of high-frequency circuit
10. Plays a role in oscillating and separating

Reasons of our top-quality components help your business succeed:

1. 20 years of experience customizing and power transformers
2. Your professional and reliable partner for various electronics
3. Over 1000 buyers value our products
4. Our Products has the UL Insulation System, Quality is guaranteed
5. High quality and best services
6. More models and types are available. Welcome your spec and sample to make custom-manufacturing.

Electrical Specifications

• Power range is also suitable for horizontal transformers

• We can design and manufacture customized part with specific requirement.

ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.

FAQ

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks; custom products will be confirmed separately.

Q: Do you support small trial orders?

A: Yes. Small trial orders (below the standard MOQ) can be negotiated and receive the same quality standards and delivery commitments as mass orders. Please contact our sales team for details.

Q: What are the operating frequency and output power ranges of the EE/EF series?

A: The operating frequency range is 30 to 500KHz. The output power range is 0.5 to 10W, and can reach 3 to 650W depending on configuration. The wide frequency and power range makes it suitable for various switching power supply and high-frequency circuit applications.

Q: Why is this product suitable for applications with lower EMI shielding requirements?

A: This product uses a low-cost design, primarily suitable for applications with lower EMI shielding requirements. The ferrite core combined with optimised winding processes reduces production costs while meeting basic performance requirements, making it suitable for cost-sensitive consumer electronics and power supply applications.
