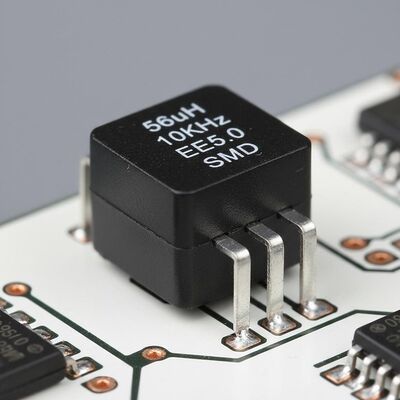

56uH 10KHz EE5.0 Ferrite Core SMD Signal Transformer for Flash Tube Applications

Negotiation
MOQ
Negotiation
Price
56uH 10KHz EE5.0 Ferrite Core SMD Signal Transformer for Flash Tube Applications
Features Gallery Product Description Chat Now
Features
Specifications
Name: Signal Transformers
Turns Ratio: 1：10
Core Material: EE5.0 Ferrite Core
Operating Temperature: -25℃to+125℃
Storage Temperature: -25℃to+85℃
Customize Design: Yes
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STEE5 seires
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T,L/C
Supply Ability: 10000/MONTH
Product Description
56uH 10KHz EE5.0 SMD Flash Tube Signal Transformer
Product Overview

SMD Signal Transformers designed specifically for flash tube applications, featuring EE5.0 core construction with a 1:10 turns ratio.

Technical Specifications
Parameter Value
Turns Ratio 1:10
Primary Inductance (Lpri) 56μH typical at 10KHz, 0.1V
Secondary Inductance (Lsec) 5mH typical at 10KHz, 0.1V
Operating Temperature -25℃ to +125℃ (includes temperature rise)
Storage Temperature -25℃ to +85℃
About Shinhom Enterprise

Founded in Xi'an, China, Shinhom Enterprise brings nearly 20 years of expertise in designing and manufacturing transformers and coil components.

Our commitment: High quality, competitive pricing, and exceptional service.

Quality certified: ISO 9001 certification by SGS system.

Shinhom specializes in designing and manufacturing high-performance transformers, power inductors, choke coils, and power supplies for global customers.
