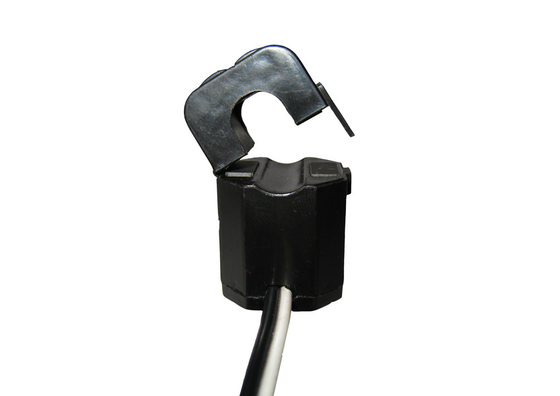

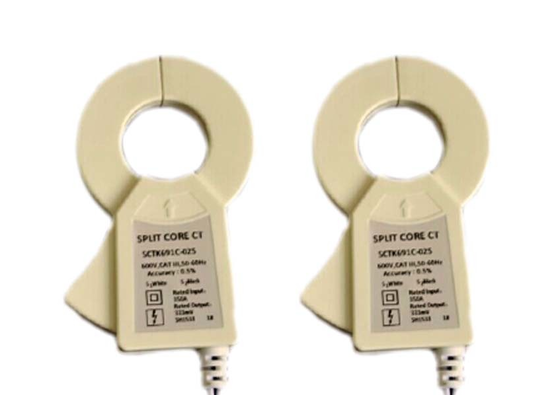

SCTK681B Series Split Core Current Transformer 5 to 630A for Current Measurement

Negotiation
MOQ
Negotiation
Price
SCTK681B Series Split Core Current Transformer 5 to 630A for Current Measurement
Features Gallery Product Description Chat Now
Features
Specifications
Current Range: 5~630A
Output: 0-500mA Or 0.333VAC
Class: 0.5、1.0、3.0
Color: Transparent
Coil: Permalloy Core
Customizable: Yes
Highlight:

Split Core Current Transformer 5 to 630A

,

Split Core Current Transformer for measurement

,

Split Core Current Transformer with warranty
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK681B Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Product Description

The SCTK681B series split-core current transformer features a removable core and internal precision load resistor, specifically designed for current measurement and electrical equipment, ensuring high precision, low core loss, and easy installation. The product features a robust and reliable structure and supports non-contact measurement and live-line operation. It is suitable for current measurement, motor monitoring, and relay protection. It is an ideal choice for split-core current transformer applications in power monitoring and industrial automation.

Features

  • Measuring range – 5 to 630A
  • Output – 0 to 500mA
  • Output – 0 to 0.333V
  • High precision, low core loss
  • Removable core
  • Compact size, lightweight
  • Split-core design for easy installation
  • Supports live-line operation

Applications

  • Electrical line and equipment current measurement
  • Motor current and power measurement
  • Lighting systems
  • Air compressors
  • HVAC systems
  • Current, power, and energy monitoring devices
  • Relay protection devices
  • Industrial automation

Mechanical Parameter

Case PA /UL94-V0
Bobbin PBT
Core Permalloy
Internal structure Epoxy
Construction Tie
Operating Temp －25℃～＋75℃
Operating Humidity ≤85%
Output Connection UL1015 20AWG Wire(twinsted wire) 2.5m

Electrical Parameter

Frequency 50Hz-2KHz
Rated Input 5A-630A
Measuring range 10%In-130%In
Rated Output 0.333V(AC) or 0-500mA
Ratio ≤± 1.0%
Phase angle ≤ ±60min
Dielectric strength 2.5KV/1mA/1min
Insulation Resistance DC500V/100MΩmin

Type selection

P/N

Rated Input

(A)

 Output (mA/V) Accuracy Dimensions(mm)
Ø0 A B C
SCTK681B-010

5-75A

(5,10,20,50,75)

0-50mA

0.333V

 0.5,1.0,3.0 10 41.5 30 26.5

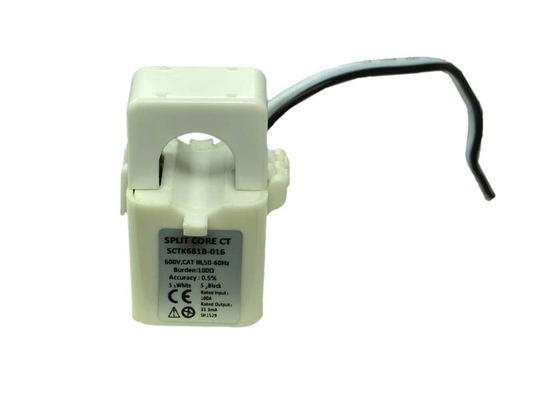

SCTK681B-016

5-150A

(5,10,50,100,150)

0-100mA

0.333V

 0.5,1.0,3.0 16 53 36 30.5
SCTK681B-024

10-250A

(10,50,100,200,250)

0-200mA

0.333V

 0.5,1.0,3.0 24 70 51.5 39.0
SCTK681B-035

10-630A

(20,100,250,400,600)

0-500mA

0.333V

 0.5,1.0,3.0 35 84 65 41.0

  SCTK681B Series Split Core Current Transformer 5 to 630A for Current Measurement

Notes: Product specifications can be customized

FAQ

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks; custom products will be confirmed separately.

Q: Do you support small trial orders?

A: Yes. Small trial orders (below the standard MOQ) can be negotiated and receive the same quality standards and delivery commitments as mass orders. Please contact our sales team for details.

Q: What is the significance of the split-core design for current measurement applications?

A: The split-core design allows non-contact measurement and can be installed without disconnecting the primary conductor. It supports live-line operation without affecting the customer's normal use. The compact size and lightweight design make installation convenient, suitable for rapid deployment in applications such as electrical lines, motors, and relay protection.
