Name: 200W High-Frequency UL 94V-0 Planar Transformer for DC/DC Converter and PCB Applications
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: Shinhom-112093-#3275
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Rated Power: 200W

Series Power: 3000W

Operating Temperature: -20°C To 85°C

Storage Temperature: -20°C To 130°C

Mounting Type: PCB-mounted / SMT

Basic Infomation

Place of Origin: China

Brand Name: SHINHOM

Certification: RoHS/ISO/UL/CE/IATF16949/CNAS

Model Number: Shinhom-112093-#3275

Payment & Shipping Terms

Delivery Time: 2~8weeks

Payment Terms: L/C,T/T

Gallery

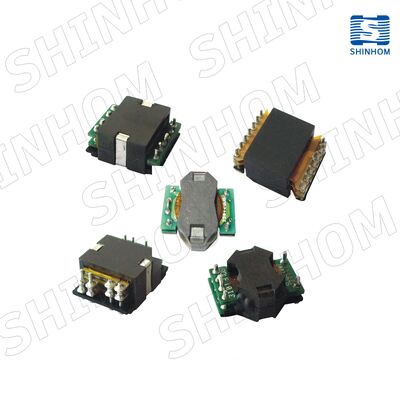

200W High-Frequency UL 94V-0 Planar Transformer for DC/DC Converter and PCB Applications

Product Description

High-Efficiency 200W TP25 Series Planar Transformer for DC/DC Converter Power Applications

The TP25 Series Planar Transformer is a high-power, low-profile transformer specifically designed for DC/DC converter and switching power applications. With power ratings up to 200W (series capability up to 3000W depending on structure), this planar transformer offers excellent thermal performance, compact PCB integration, and reliable high-frequency operation. Manufactured with UL1950 / EN60950 compliance and UL 94V-0 flame-retardant materials, it ensures safety and stability in industrial and power electronics systems.

Key Specifications

Series	TP25
Rated Power	200W (series capability up to 3000W)
Application	DC/DC converter
Structure	Low-profile planar transformer
Mounting Type	PCB-mounted / SMT planar transformer
Operating Temperature	-20°C to 85°C
Storage Temperature	-20°C to 130°C
Safety Compliance	UL1950 / EN60950
Material Rating	UL 94V-0

Product Features

High Power Density: Optimized planar structure allows higher power handling in a compact footprint, ideal for high-density PCB layouts.
Low-Profile Design: The flat planar construction reduces height, making it suitable for slim power modules and compact equipment.
High-Frequency Performance: Designed for switching power supplies and DC/DC converters, ensuring stable energy transfer at high frequencies.
PCB-Mounted Structure: Direct PCB mounting improves mechanical stability and simplifies automated assembly.
Safety & Reliability: Built with UL-approved materials and compliant with international safety standards for secure operation.

Available Structures

Low-profile planar transformer
High-power planar transformer
High-frequency planar transformer
PCB planar transformer
PCB-mounted planar transformer
Planar switching power transformer
Off-the-shelf SMT planar transformer

Related Planar Magnetic Components

Planar common mode choke
Planar power choke
Planar compensated choke
PFC planar choke
Planar line filter

Typical Applications

DC/DC converters
Switching power supplies
Industrial power modules
Communication power systems
High-density power boards
