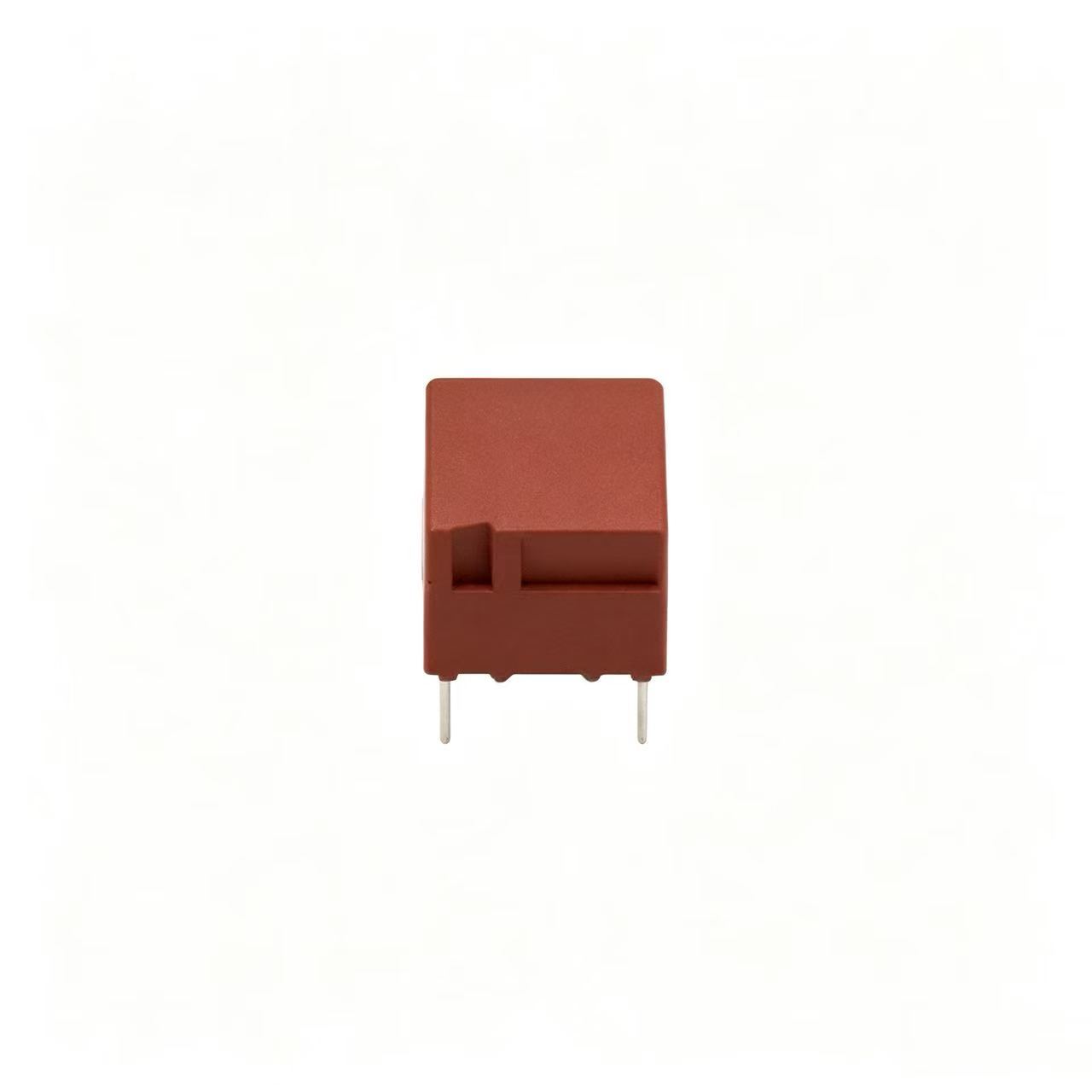

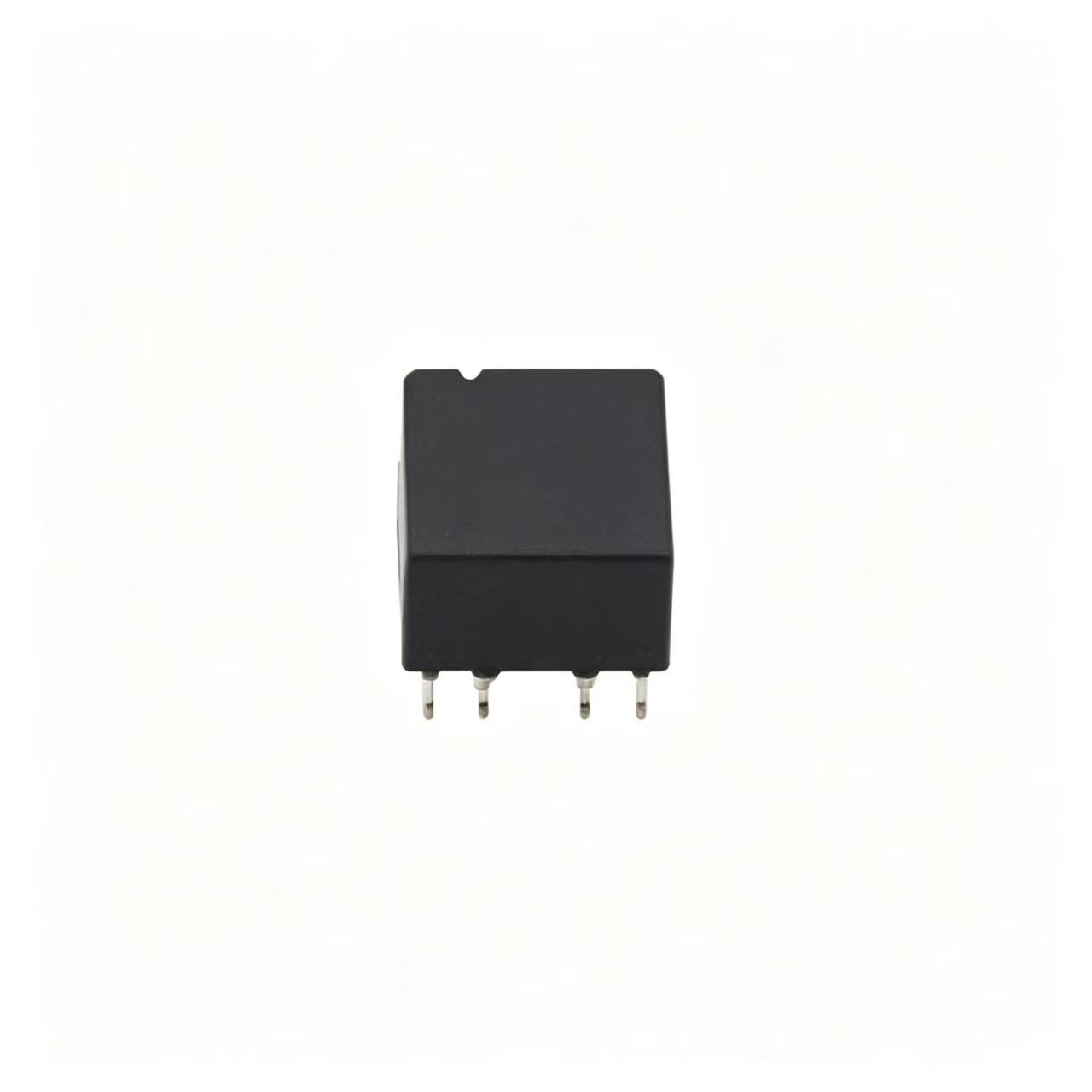

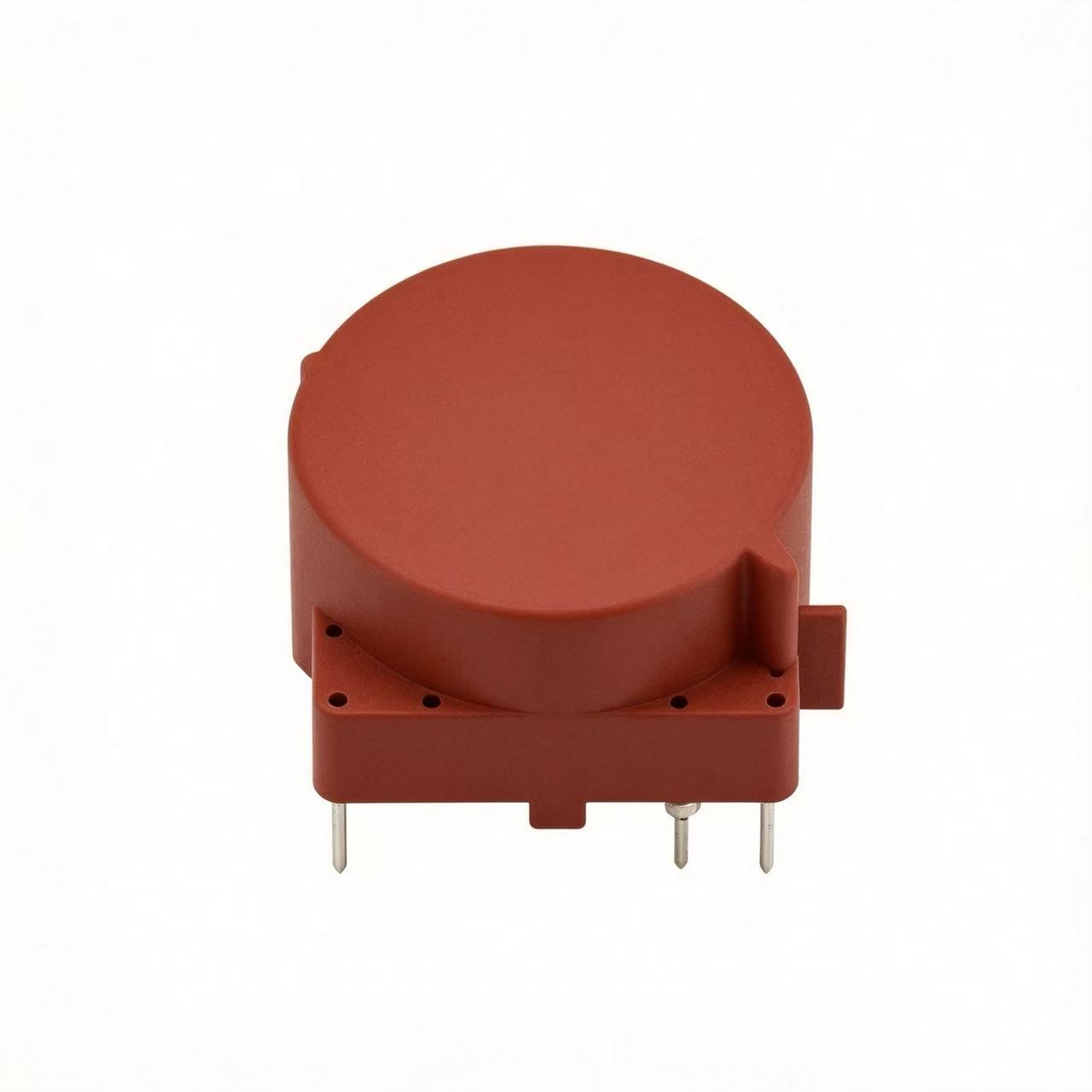

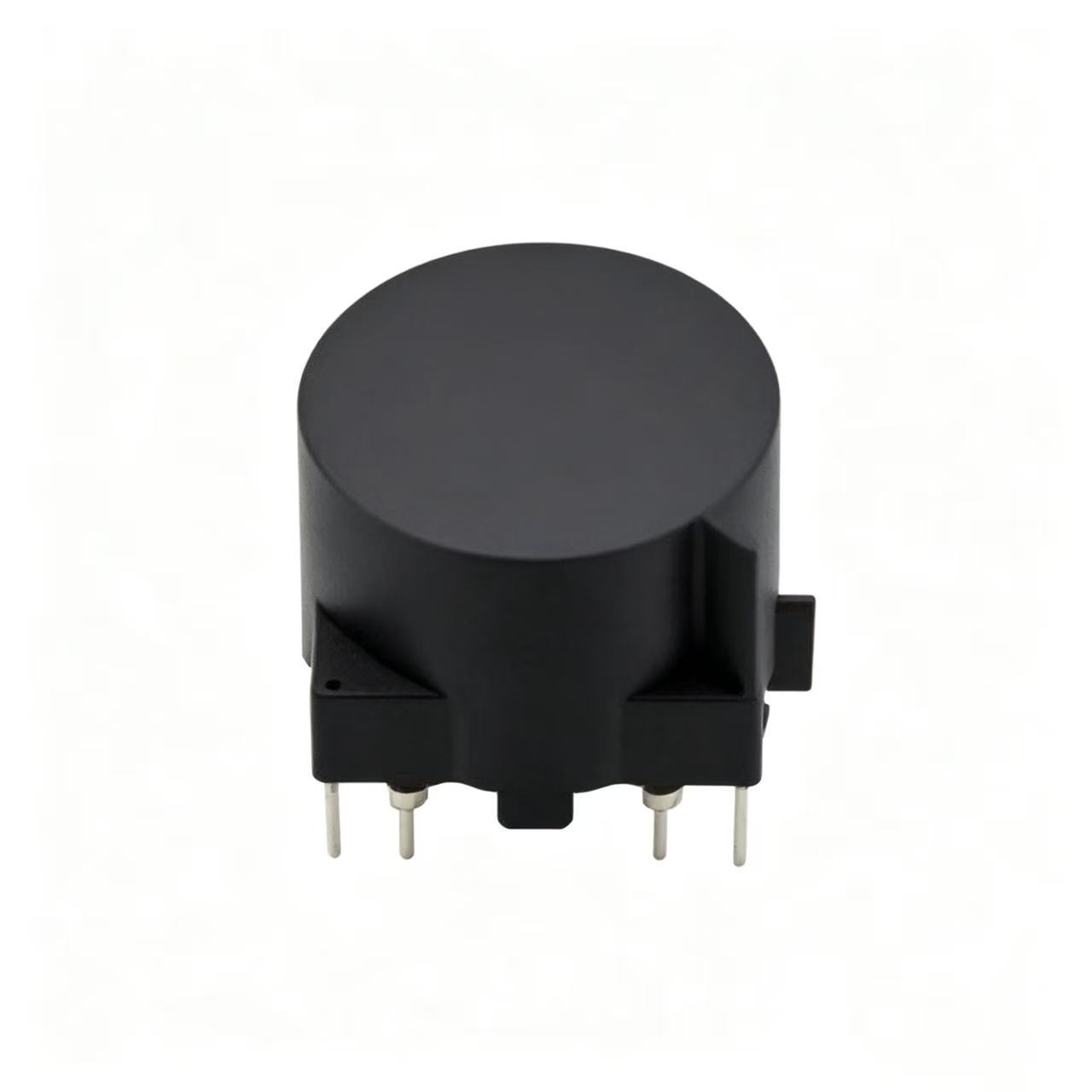

T4021 Series Narrowband PLC Isolation Transformer for Smart Grid

1000
MOQ
T4021 Series Narrowband PLC Isolation Transformer for Smart Grid
Features Gallery Product Description Chat Now
Features
Specifications
Dcresistance: 0.1 Ω - 10 Ω
Input Voltage: 110V, 220V, 240V, 230V, 100V
Core Type: ETD Type Ferrite Core
Electricity: Electrical Power Transformer
Package Type: Through Hole / Surface Mount
Working Frequency Range: 220-240V 500KHz
Highlight:

Narrowband PLC isolation transformer

,

Smart grid isolation transformer

,

High frequency PLC transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: T4021
Payment & Shipping Terms
Delivery Time: 4~8 Weeks
Payment Terms: L/C,T/T
Product Description

The isolation transformer is manufactured using amorphous or nanocrystalline core materials, specifically designed for narrowband PLC systems and smart grids, ensuring excellent transmission characteristics, high power current capability, and safe current isolation. The product features a robust and reliable structure and offers THT and SMT compact designs. It is suitable for narrowband PLC systems, smart meters, and industrial automation. It is an ideal choice for isolation transformer applications in power line communication and smart grids.

Features

  • Excellent transmission characteristics
  • High power current capability, low THD
  • Matches all mainstream ICs
  • Compatible with all PLC standards
  • THT and SMT compact designs
  • Amorphous nanocrystalline cores
  • Safe current isolation

Applications

  • Narrowband PLC systems
  • Smart meters
  • Smart grids
  • Industrial automation
  • Communication equipment
  • Smart home
  • Power line communication
  • Energy Management Systems

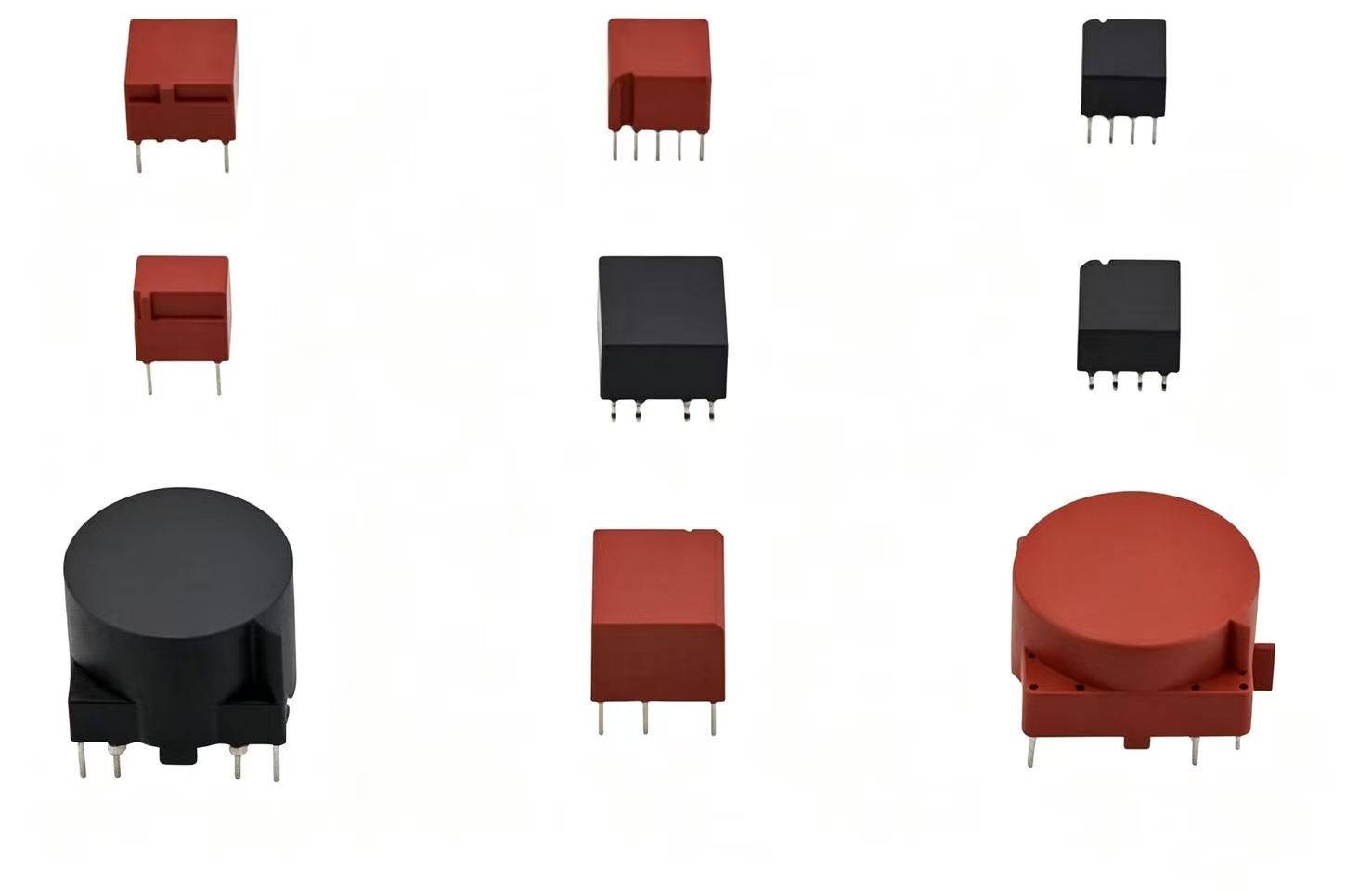

Product Specification Selection Table

Series Model Turns Ratio Secondary Current (mA) Max Secondary Inductance (mH) Min Withstand Voltage (kV)
T4021 Series 1:1 to 1.68:1 50 to 130 0.34 to 0.68 1.5 to 5.1
T4031 Series 2:1 5 1.0 4.2
T4081 Series 1:1 to 2:1 30 to 35 0.9 to 1.4 4.0 to 5.5
T4085 Series 1:1 30 1.4 4.0
T4096 Series 1:1 to 1:1/1.3 10 to 30 1.3 to 5 6.0
T4185 Series 1:1 50 1.4 10.0
T4614 Series 1:1.2 250 0.4 5.1
T5032 Series 1:1 to 2:1 90 to 130 0.3 to 0.7 1.0 to 5.1

FAQ

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks; custom products will be confirmed separately.

Q: Do you support small trial orders?

A: Yes. Small trial orders (below the standard MOQ) can be negotiated and receive the same quality standards and delivery commitments as mass orders. Please contact our sales team for details.

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.
