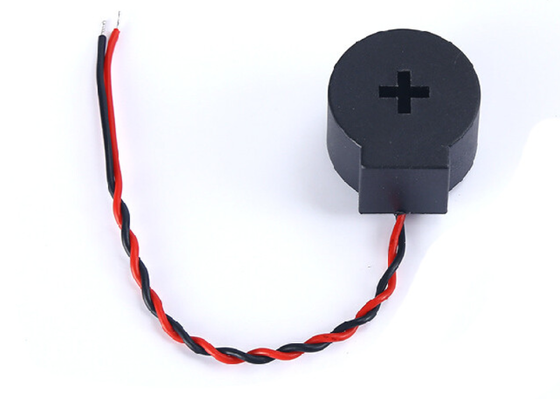

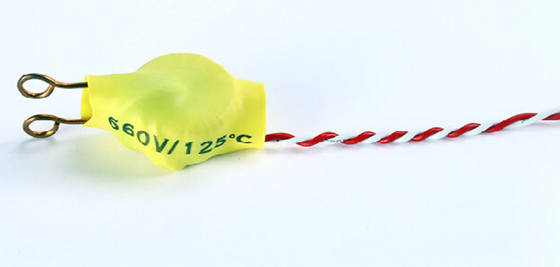

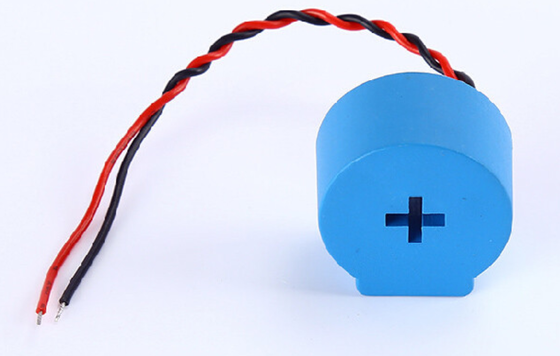

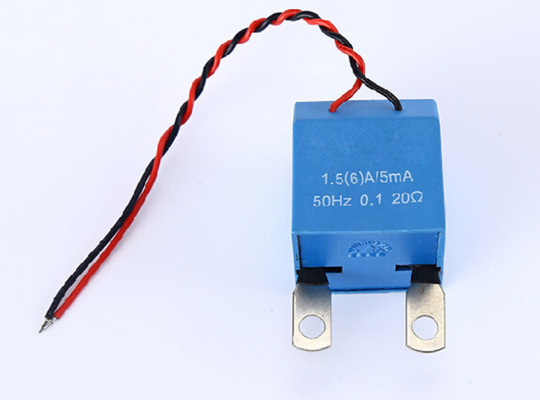

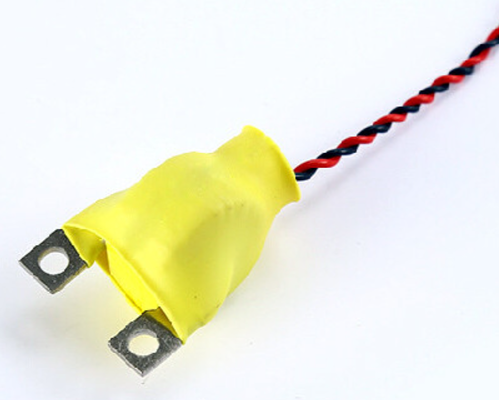

CT Series Output Lead Wire Miniature Current Transformer for Electronic Monitoring Systems

CT Series Output Lead Wire Miniature Current Transformer

The CT series current transformer is manufactured with a fully enclosed design and pin-type mounting structure, specifically designed for electronic monitoring systems and AC energy meters, ensuring good mechanical insulation performance, linear output, and high precision.The product features a robust and reliable structure with compact size and lightweight design. It meets wide operating temperature requirements.It is suitable for AC energy meters, protection current transformers, and AC kilowatt-hour meters. It is an ideal choice for miniature current transformer applications in power monitoring and energy metering.

• Fully enclosed design

• Good mechanical and insulation performance

• Pin design for easy PCB mounting

• Compact size, can be used independently

• Linear output, high precision

• Compact size, lightweight

• Standard aperture for easy installation

• Maximum continuous primary current – 4 times rated

• AC energy meter power sensor RTU

• Protection current transformers

• AC kilowatt-hour meters

• Electronic monitoring systems

• Single-phase electricity meters

• Anti-tampering electricity meters

• Power monitoring

• Energy metering

· Maximum continuous primary current 4 x rated current
· Storage Temperature: -45℃ to +85℃
· Operating temperature general purpose & nickel: -40℃ to +85℃
· Operating temperature high frequency: -40℃ to +65℃
· Marking: Part number and date code

Notes: Product specifications can be customized
