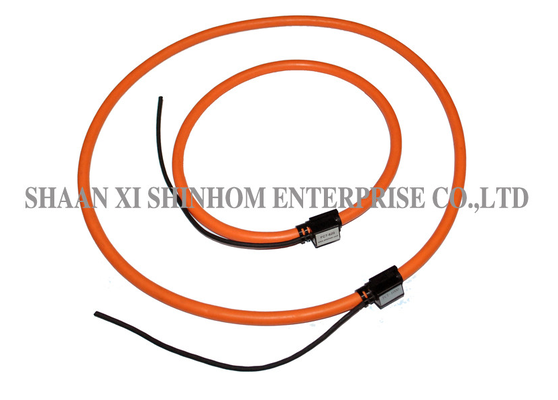

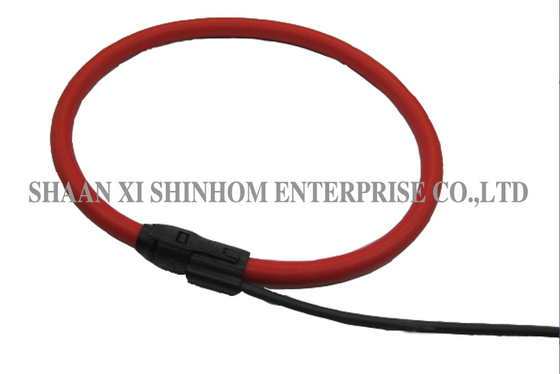

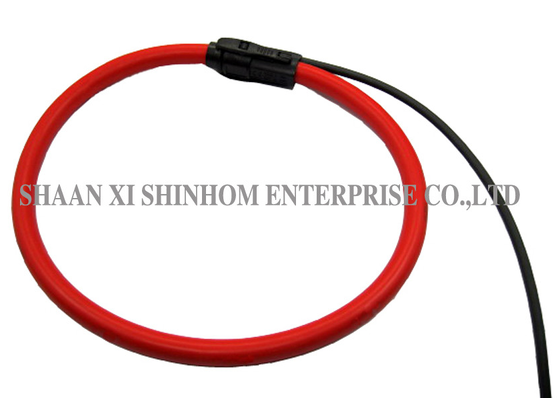

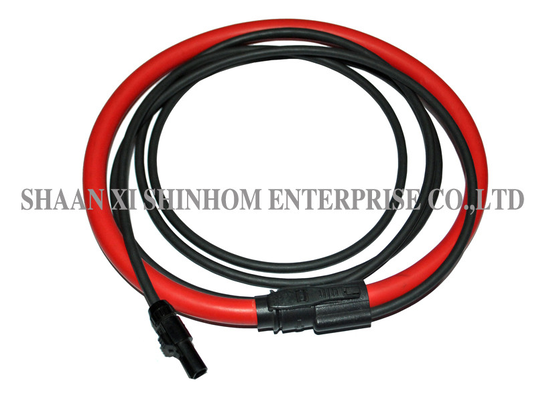

Flexible Rogowski Coil 100kA Wide Frequency Response for Power Quality Monitoring and Relay Protection

Q: What is the difference between a Rogowski coil and a traditional current transformer (CT)?

A: A Rogowski coil uses an air core structure with no magnetic core. It has no core saturation issues, offering extremely high linearity and a very wide dynamic range. The Rogowski coil also presents no high-voltage hazard when the secondary is open, with strong anti-overload capability. Traditional CTs have an iron core and suffer from saturation issues at both low and high currents, with a limited dynamic range. Secondary open circuits can produce dangerous high voltages.

Q: What are the advantages of a flexible Rogowski coil in high-current measurement?

A: The flexible Rogowski coil is lightweight and bendable. It can be wrapped around large or irregularly shaped conductors, making it suitable for space-constrained installations. Compared to traditional rigid CTs, the flexible design offers easier installation, especially suitable for retrofit projects and applications where power cannot be turned off.

Q: What is the impact of the coreless design on frequency response?

A: The coreless design eliminates core saturation and hysteresis effects, providing a wide frequency response from line frequency to high frequencies. It is especially suitable for measuring harmonic content and fast transient signals, making it an ideal choice for power quality monitoring.

Q: What is the safety of the Rogowski coil regarding overload and open circuit?

A: The Rogowski coil has an air core structure with no core saturation issues. Short-term high-current overload will not damage the device. The secondary output is a low-voltage signal, so an open circuit presents no high-voltage hazard, ensuring safe and reliable operation.
