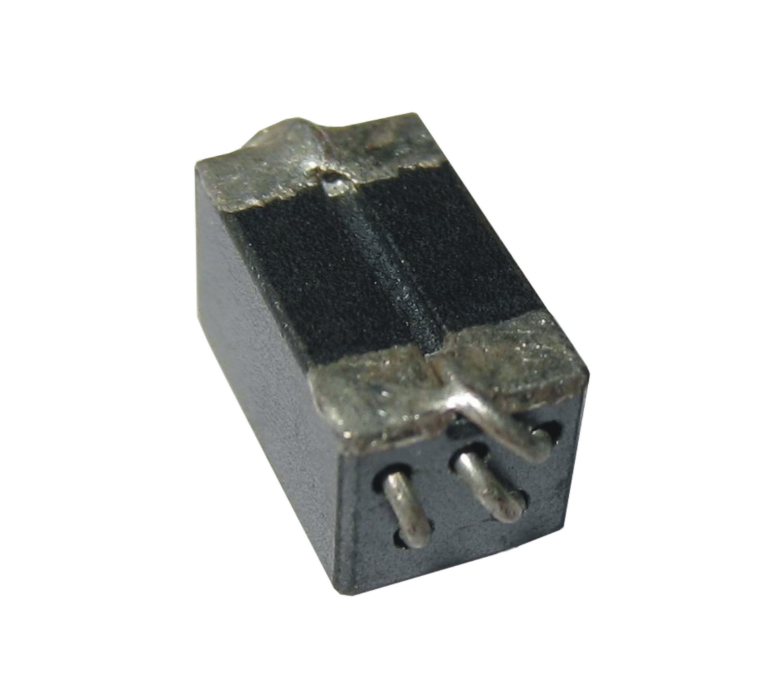

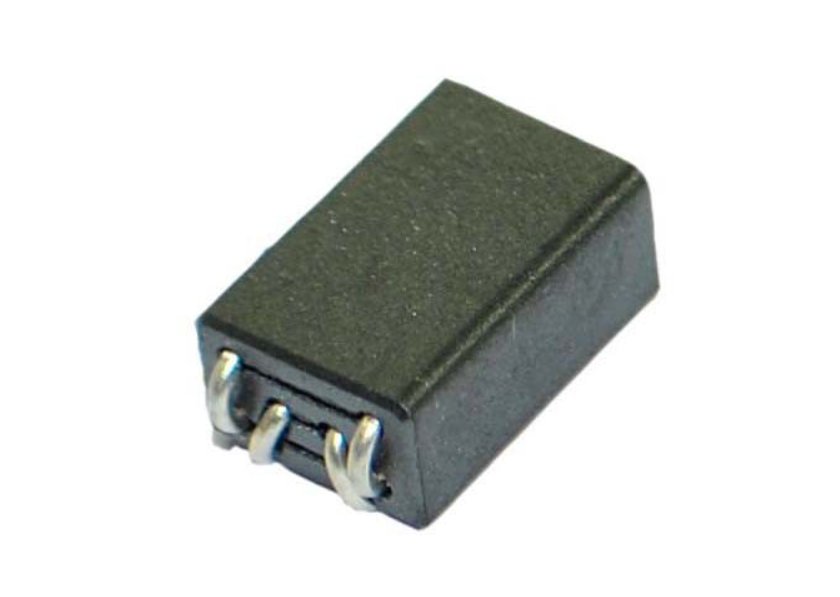

High Current SMD Bead Inductor 5A for Consumer Electronics

This ferrite bead inductor is manufactured using high-quality ferrite material and SMD packaging processes, specifically designed for EMI suppression and power lines, ensuring high impedance, low DCR, and stable performance. The product features a robust and reliable structure with dimensions of 5.0*5.5*4.6mm. It meets wide operating temperature requirements. It is suitable for EMI suppression, power lines, and consumer electronics. It is an ideal choice for ferrite bead inductor applications in EMI suppression and noise filtering.

Features

• Impedance – 272Ω typical at 25MHz

• Impedance – 416Ω typical at 100MHz

• Rated current – 5.0A

• DCR – 7.0mΩ max.

• Operating temperature – -40 to +125°C

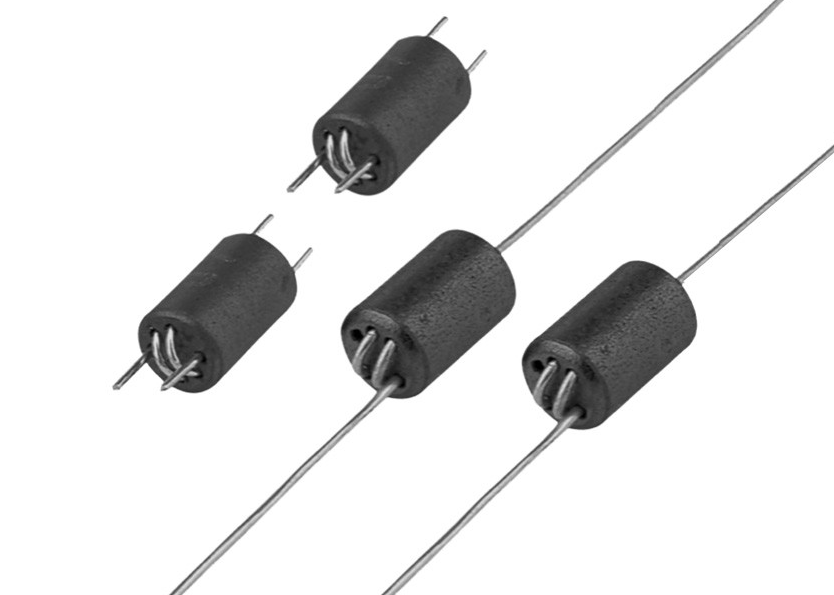

• SMD ferrite bead axial choke

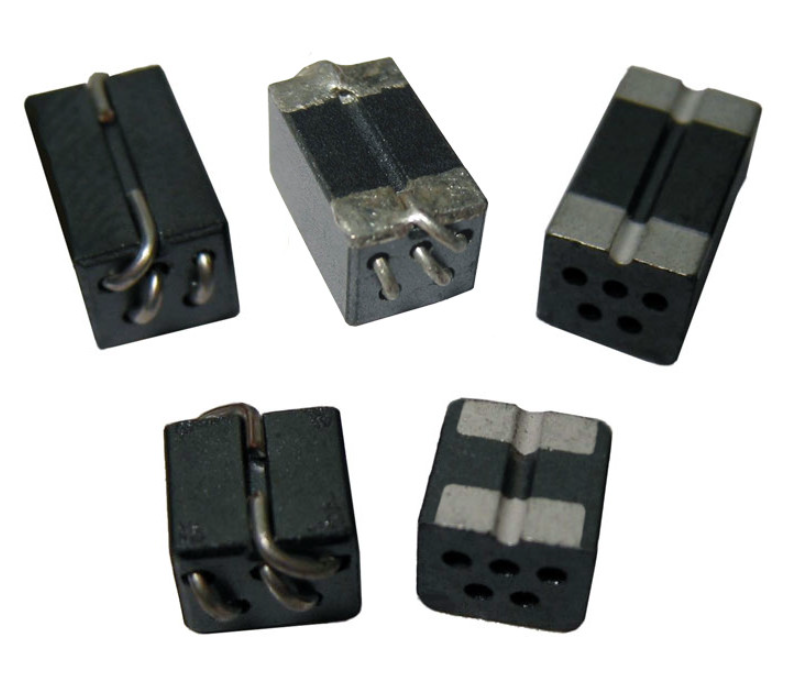

• Multiple types available

• Dimensions – 5.0*5.5*4.6mm

Applications

• EMI suppression

• Power lines

• Consumer electronics

• Communication equipment

• Automotive electronics

• Signal filtering

• Noise suppression

• Electronic equipment

Electrical specification:

• Impedance: 272Ω Typ@25MHz
• Impedance: 416Ω Typ@100MHz
• Rated Current: 5.0A
• RDC: 7.0mΩMax
• Operating temperature: -40℃ to 125℃

Test curve

For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.

FAQ

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.

Q: Are samples free? How soon can I receive them?

A: Samples are free of charge and will be shipped within 3-5 working days. For specific shipping cost policies, please contact our sales team for confirmation.

Q: How do you handle quality issues if they occur?

A: We ensure product conformity through incoming quality inspection and 100% quality testing before shipment. If quality issues occur, please contact our sales team promptly. We will provide return/exchange or technical support solutions.
