| Inductance: | 650uH~15000uH | Rated Current: | 1.0A~3.6A |
|---|---|---|---|
| Inductor Value: | Fixed Inductor | Transport Package: | Carton |
| Specification: | RoHS/SGS/UL/ISO9001 | Size: | 16.38*14.2*11mm |
| High Light: | common mode toroidal chokes,common mode power line choke |
||

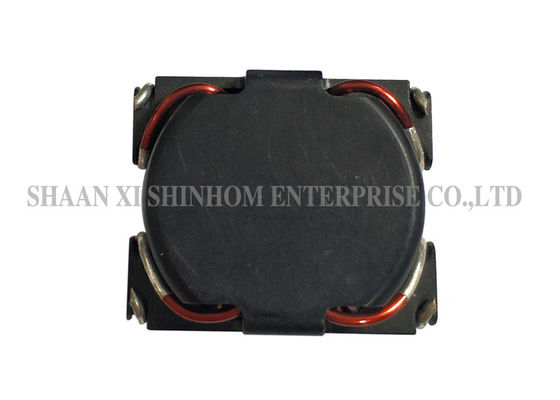

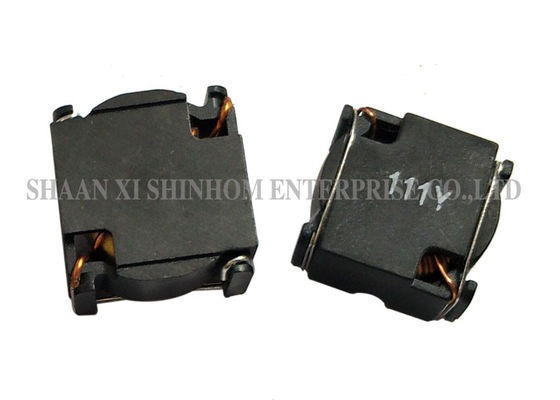

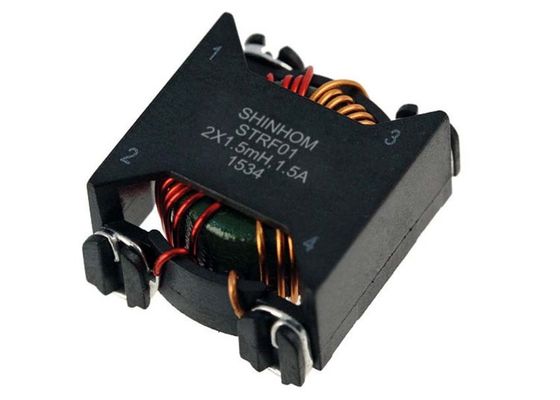

STRF01 Series high current common mode inductor,SMT Toroidal Ferrtie Core Common Mode Choke Designed for DC/DC Converter
FEATURES:
· Common mode chokes for AC Power lines
· High impedance to minimize common mode noise
· Excellent EMI performance
· Toroidal common-mode inductor
· Low profile and small size SMD
· Suitable for reflow soldering
· RID common-mode choke coils
· Small-profile choke coils
· Ferrite core toroid choke coils
· Large-current choke coils
· Low resistance choke coils
· Operate temperature range :-40 ℃to + 125℃(Including self temperature rise)
· Storage temperature range: -40℃to +125℃
COMMON APPLICATIONS:
· DC/DC, AC/DC converter
· Filter and Noise suppression
· Input Filter (Series Mode)
· EMI/RFI Suppression
· Desktops,Laptops,DSC and computer peripheral
· DC/DC converter.
· LCD display
· Telecommunication Equipment
· Communication System
· Automotive Systems
· Liquid Crystal Televisions
TECHNICAL INFORMATION:
·IDC: Temp. rise 40℃ Max
·lnductance test: HP4284A 100KHz 0.1V
·RDC:QuadTech 1880 Milliohmmeter
·Solder methods: Vapor Phase, Infrared Reflow
·Resistance to soldering heat:260℃ for 10 seconds
·Solvent resistance: Conforms to MIL-STD-202E
·Weight------------------1.5grams TYP
·Tape & Reel--------------700/reel
More sizes to choose from
