| Inductance: | 880uH~6800uH | Rated Current: | 0.3A~1.63A |
|---|---|---|---|
| Test Frequency: | 100KHz | Tolerance: | ±35% |
| Installation: | SMT | Size: | 13*13*5.6mm |
| High Light: | common mode toroidal chokes,common mode inductor |
||

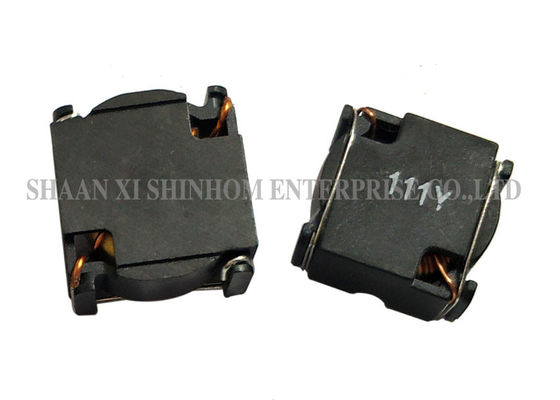

STRF06 Series high current power common mode inductor,SMD Toroidal Core Common Mode Choke with inductance up to 6.8mH
FEATURES:
· Common mode chokes for AC Power lines
· High impedance to minimize common mode noise
· Excellent EMI performance
· Operate temperature range :-40 ℃ to + 125℃(Including self temperature rise)
· Storage temperature range: -40℃ to +125℃
COMMON APPLICATIONS:
· DC/DC, AC/DC converter
· Filter and Noise suppression
· Communication System
· Automotive Systems
· Liquid Crystal Televisions
TECHNICAL INFORMATION:
· IDC: Temp. rise 40℃ Max
· lnductance test: HP4284A 100KHz 0.1V
· RDC:QuadTech 1880 Milliohmmeter
· Solder methods: Vapor Phase, Infrared Reflow
· Resistance to soldering heat:260℃ for 10 seconds
· Solvent resistance: Conforms to MIL-STD-202E
· Weight------------------1.5grams TYP
· Tape & Reel--------------700/reel
More sizes to choose from
