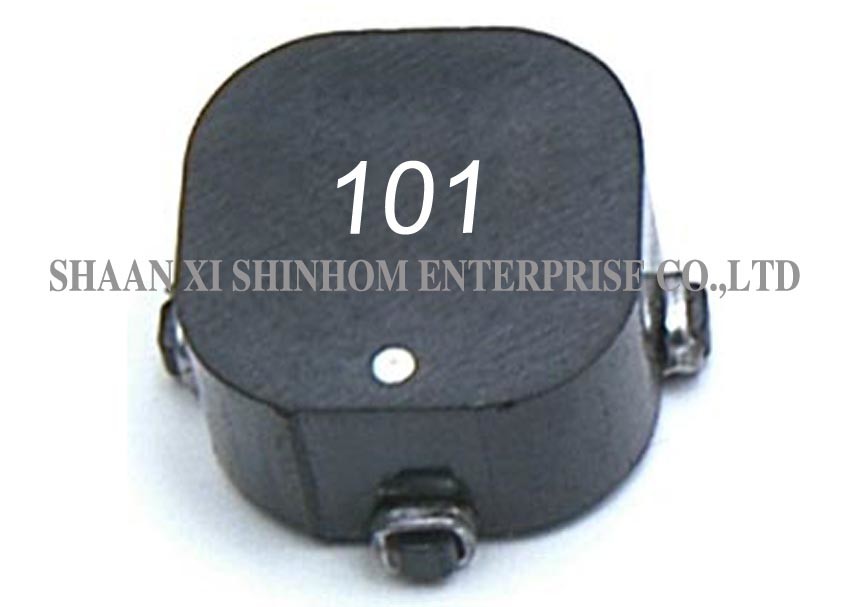

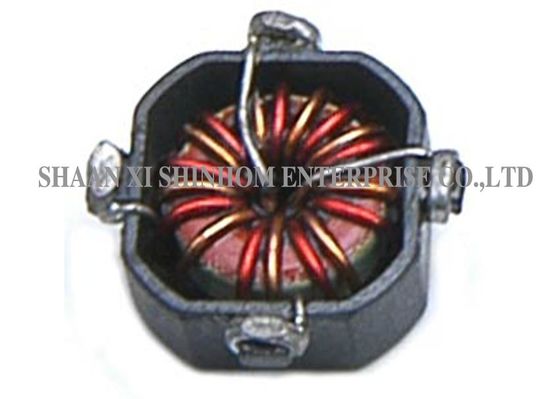

Enclosed Common Mode Choke Coil Inductor with Case Low DC Resistance

Enclosed Common Mode Choke Coil Inductor with Case Low DC Resistance
Enclosed Common Mode Choke Coil Inductor with Case Low DC Resistance Enclosed Common Mode Choke Coil Inductor with Case Low DC Resistance

Large Image :  Enclosed Common Mode Choke Coil Inductor with Case Low DC Resistance Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STC01,02,03,04 Series
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Installation: SMT Packaging Form: Carton
Range Of Application: High Frequency Samples: Support
Lead Time: 15-25 Days Potting Compound: Epoxy
High Light:

common mode inductor

,

common mode power line choke

STC01,02,03,04 Series surface mount toroidal coils,common mode choke,Enclosed Common Mode Choke Coil Inductor with Case



FEATURES:

· Size optional

· Low DC Resistance
· High Saturation Material
· Low EMI Radiation
· Pick and PLace




COMMON APPLICATIONS:

· Electronic Appliances
· DC - DC Conversion (Paraller Mode)
· Isolation/Coupling(Transformer)
· Input Filter(Serial Mode)
· EMI/RFI Suppression



TECHNICAL INFORMATION:

Inductance measure at 100KHz 0.1VRms.
Insulation Resistance: 100Vdc 1KMΩmin.

Operating temperature:-40℃ to +125℃
Storage Temperature: -55℃ to +125℃
RDC:QuadTech 1880 Milliohmmeter
Soldering temperature:260℃ for 4±1 seconds
Different package available per special request
Max of 35% saturation on DC bias applied



Enclosed Common Mode Choke Coil Inductor with Case Low DC Resistance 0


Note: Product specifications can be customized.
