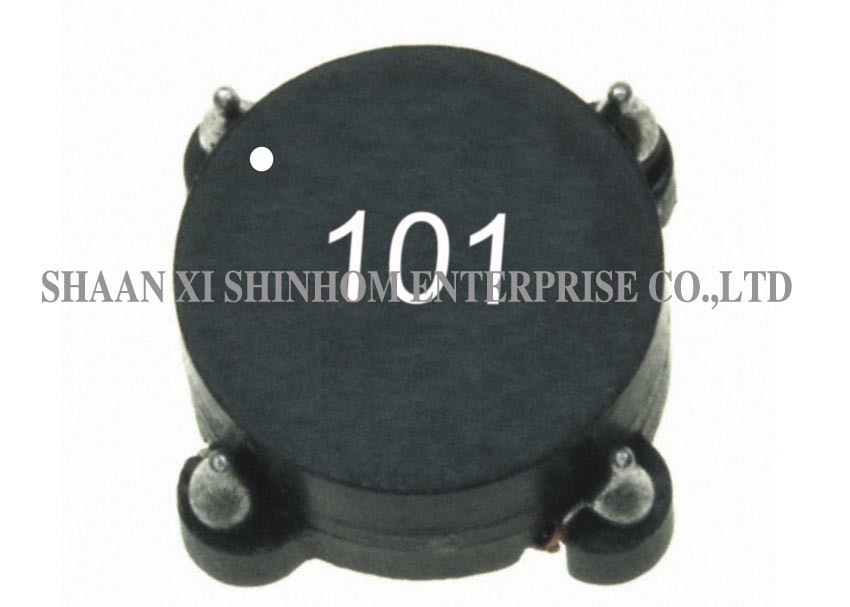

Surface Mount Common Mode Choke , Toroidal Choke Coil 0.47uH - 300uH

Surface Mount Common Mode Choke , Toroidal Choke Coil 0.47uH - 300uH
Surface Mount Common Mode Choke , Toroidal Choke Coil 0.47uH - 300uH

Large Image :  Surface Mount Common Mode Choke , Toroidal Choke Coil 0.47uH - 300uH Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STC05,06P Series
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Inductance: 0.47uH To 300uH Tolerance: 20%/25%
Current: 8A Installation: SMT
Operating Temperature: -40℃ To +125℃ Storage Temperature: -55℃ To +125℃
High Light:

common mode toroidal chokes

,

common mode power line choke

STC05,06P Series surface mount toroidal coils and common mode toroidal choke,SMD Common mode inductor with case



FEATURES:

· Higher Frequency
· High Saturation Material
· Low EMI Radiation
· Pick and PLace
· Low DC Resistance



COMMON APPLICATIONS:

· Electronic Appliances
· DC - DC Conversion (Paraller Mode)
· Isolation/Coupling(Transformer)
· Input Filter(Serial Mode)
· EMI/RFI Suppression



TECHNICAL INFORMATION:

Inductance measure at 100KHz 0.1VRms.
Insulation Resistance: 100Vdc 1KMΩmin.
RDC:QuadTech 1880 Milliohmmeter
Operating temperature:-40℃ to +125℃
Storage Temperature: -55℃ to +125℃
Different package available per special request
Max of 35% saturation on DC bias applied



Surface Mount Common Mode Choke , Toroidal Choke Coil 0.47uH - 300uH 0


Note: Product specifications can be customized.

Surface Mount Common Mode Choke , Toroidal Choke Coil 0.47uH - 300uH 1
