Portable Toroidal Power Inductor Wide Frequency Range RoHS Compatible

Portable Toroidal Power Inductor Wide Frequency Range RoHS Compatible
Portable Toroidal Power Inductor Wide Frequency Range RoHS Compatible

Large Image :  Portable Toroidal Power Inductor Wide Frequency Range RoHS Compatible Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: STR0903 Series
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Inductance: 1.1mH To 22mH Rated Current: 0.3A To 2A
Working Frequency: 50Hz To 500KHz Test Frequency: 10KHz,0.1V
Operating Voltage: 250VAC Operating Temperature: -40℃ To +105℃
Certification: UL /RoHs /SGS,ISO9001 ISO14001 Application: Switching Regulator Inductors
High Light:

common mode inductor

,

common mode power line choke

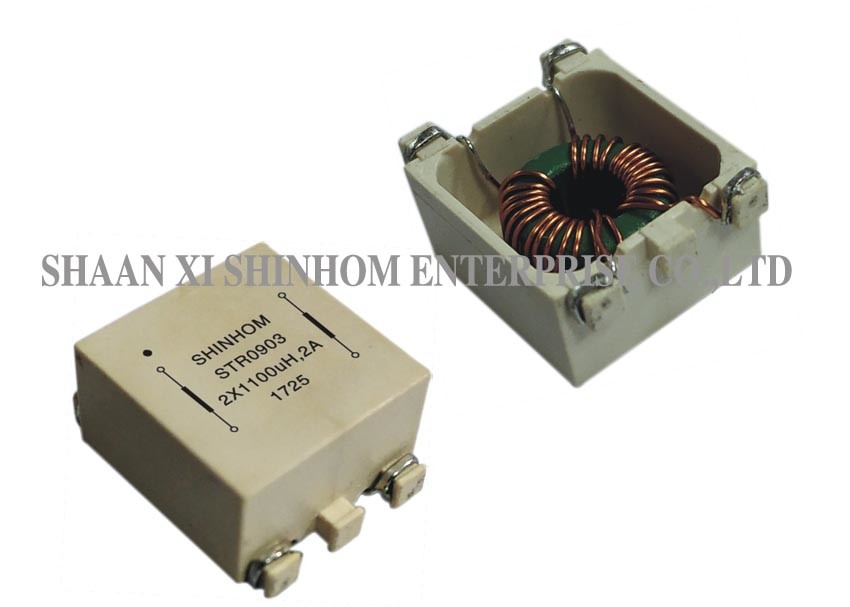

STR0903 Series common mode inductor Toroidal Core Common Mode Choke with case,SMD common mode inductor



FEATURES:

  • Separated windings for minimum interwinding capacitance
  • Single layer windings for highest common mode impedance over the widest frequency range
  • Suitable for 50Hz to 500 KHz
  • Distance for UL, CSA, IEC compliance
  • All materials used are UL94-VO recognized
  • Approx. 0.8% stray inductance for
  • differential-mode interference suppression
  • Suitable for reflow soldering
  • Design complies with EN 60938-2(VDE 0565-2)
  • RoHS-compatible



COMMON APPLICATIONS:

  • Suppression of common-mode interferences
  • Compact electronic ballasts in lamps
  • Compact switch-mode power supplies



TECHNICAL INFORMATION:

  • Operating voltage: 250Vac
  • IDC Max:Determined when superimposed
  • lnductance test: HP4284A 10KHz 0.1V
  • RDC:QuadTech 1880 Milliohmmeter
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃
  • Temperature rise 40℃ Max
  • Solder methods: Vapor Phase, Infrared Reflow
  • Resistance to soldering heat:260℃ for 10 seconds
  • Solvent resistance: Conforms to MIL-STD-202E

Portable Toroidal Power Inductor Wide Frequency Range RoHS Compatible 0




Note: Product specifications can be customized.
