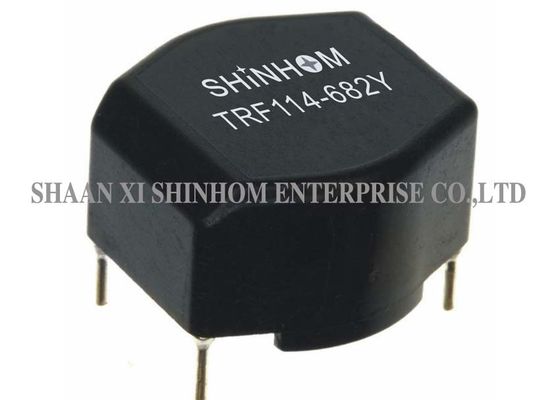

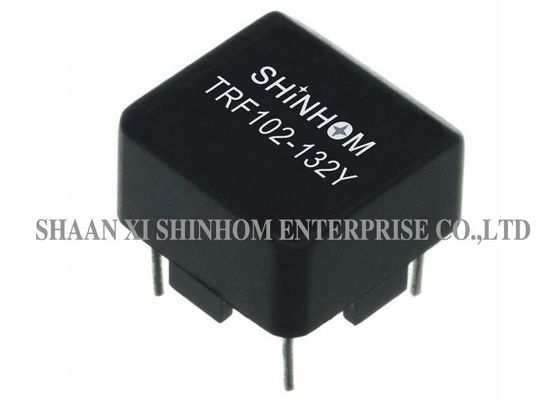

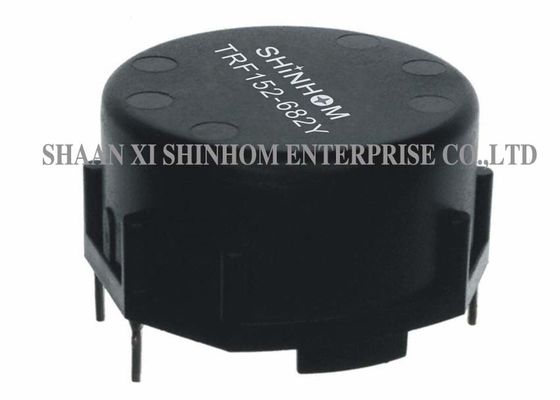

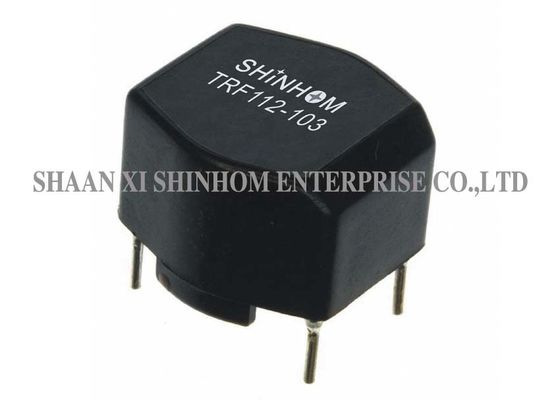

Small Profile Ferrite Core Choke Black Color With Plastic Case Protection

Small Profile Ferrite Core Choke Black Color With Plastic Case Protection
Small Profile Ferrite Core Choke Black Color With Plastic Case Protection Small Profile Ferrite Core Choke Black Color With Plastic Case Protection Small Profile Ferrite Core Choke Black Color With Plastic Case Protection Small Profile Ferrite Core Choke Black Color With Plastic Case Protection

Large Image :  Small Profile Ferrite Core Choke Black Color With Plastic Case Protection Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF102/112/114/122/142/202/212/214/222/242/252/152 Series
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Case Color: Black Magnetic Core: Ferrite Core
Specification: RoHS/SGS/UL/ISO9001 Inductor Value: Fixed Inductor
Range Of Application: Choke Transport Package: Carton/Pallet
High Light:

common mode toroidal chokes

,

common mode power line choke

TRF Series toroidal common mode inductor with Plastic Case Protection,There are many sizes to choose from



FEATURES:

·0.3A to 8A ratings
· 0.7mH to 100mH dual chokes
· Excellent Mechanical Strength
· 100KHz to 3MHz common mode resonance
· High Reliability and variant PCB-mount housing
· Low resistance and temperature rise





COMMON APPLICATIONS:

· DC/DC, AC/DC line noise suppression
· Communication System
· Automotive Systems
· LCD/PDPTelevisions
· Computer Peripheral Equipment





TECHNICAL INFORMATION:

·Inductance tolerance in +50% -30%
·Max operating voltage:250V at 40℃
·IDC Max: rating AC/DC current A @40℃
·Hi-Pot 1500Vac winding to winding 3S.
·Inductance Testing: 10KHz 0.1V HP4284A
·RDC:QuadTech 1880 Milliohmmeter
·Surge current Max 10ms: 20X IDC
·Operating temperature: -40℃ to +105℃
·Storage Temperature: -40℃℃ to +105℃℃
·Resistance to soldering heat:260℃ for 10 seconds





Note: 102, 112, 114, 142, 122,152 horizontal
          202, 212, 214, 242, 222, 252 vertical



Small Profile Ferrite Core Choke Black Color With Plastic Case Protection 0



Note: Product specifications can be customized.
