High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole

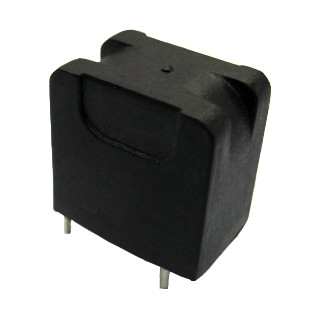

Large Image : High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	ACST010-013 Series

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Turns:	1:100,1:2500	Installation:	PCB Mounting
Inner Hole Size:	7mm - 18.5mm	Magnetic Circuit Structure:	Combined Type
Coil Structure:	Toroidal	Frequency:	50Hz~400Hz
High Light:	rogowski coil current transformer , high frequency current transformer

ACST010-013 Series High Accuracy PCB Mounting High Frequency Current Transformer,Wide inner Hole

Current transformers comprises various versions for a large number of applications. Strong insulation voltage between the primary and the secondary, up to 4kV/1min, without breakdown.

The insulation resistance should be bigger than 1000MΩ between the primary and secondary windings.

Best-performance core designs in close cooperation with our customers.

Technical support including simulation software to optimize the circuit topology.

FEATURES:

• AC measurement capacity is 20% higher than rated current

• Negligible small amplitude error

• Extreme linear, easily compensable phase curve

• Low temperature dependence

• It accords with IEC 60044-1 0.1class, 0.2class, 0.5class

• RoHS Compliance is available on request

TECHNICAL INFORMATION:

· Working Frequency range 20Hz~400Hz
· Insulation resistance: 500V DC >100MΩ
· Hi-Pot : 4000V 1mA 60S
· Temperature range: -25℃ to +85℃
· Storage Temperature: -40℃℃ to +105℃℃
· Resistance to soldering heat:260℃ for 10 seconds
· Marking: Part number and date code

High Accuracy Current Sense Transformer PCB Mounting Wide Inner Hole 0
