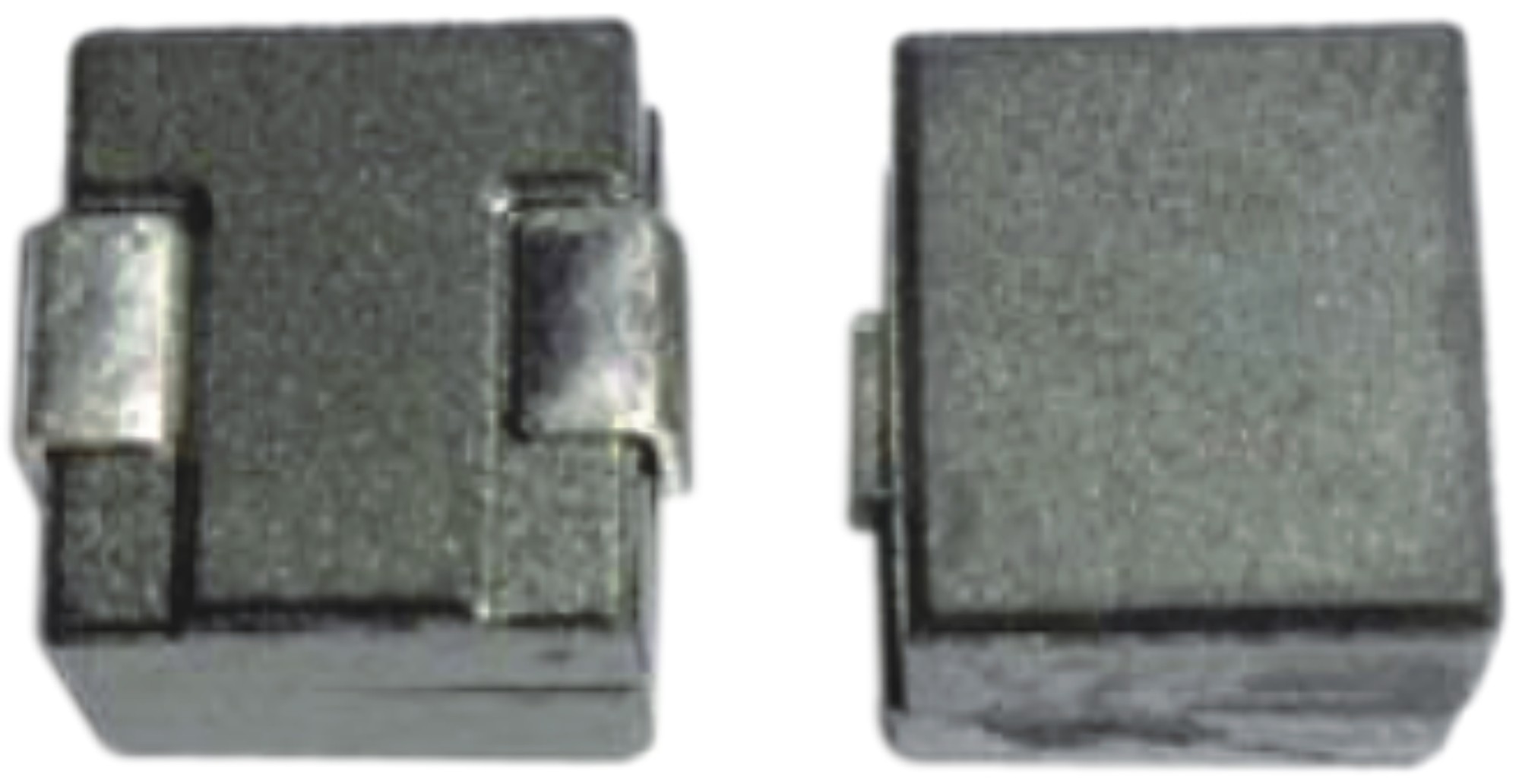

High Current SMT Power Inductors 110A Shielded Choke Coil RoHS Directive Compliant

High Current SMT Power Inductors 110A Shielded Choke Coil RoHS Directive Compliant
High Current SMT Power Inductors 110A Shielded Choke Coil RoHS Directive Compliant

Large Image :  High Current SMT Power Inductors 110A Shielded Choke Coil RoHS Directive Compliant Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HCB0805
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Current Range: 20A To 110A Inductance Range: 32nH To 200nH
Size: 7.49 *7.62 *4.96mm Installation: SMT
DCR: 0.17mΩ±8% Packing: Reel+carton Box
High Light:

low profile high current inductor

,

smd power choke

HCB0805 Series high current power inductors,SMD power inductors,Current up to 110A shielded choke coil





FEATURES:

  1. High current carrying capacity
  2. Low core loss
  3. Inductance range from 32nH to 200nH
  4. Current range from 20A to 110A
  5. Ferrite core material
  6. High temperature grades are available
  7. RoHS Directive-compliant
  8. UL insulation systems are available
  9. Customized designs are accepted



APPLCATIONS:

  1. Portable electronics
  2. Servers and workstations
  3. Data networking and storage systems
  4. Notebook and desktop computers
  5. Graphics cards and battery power systems
  6. Multi-phase regulators
  7. Voltage regulator module(VRM)
  8. Notebook
  9. Inkjet printer
  10. Copying machine
  11. ADSL modem
  12. Display monitor
  13. Video tape recorder
  14. Video camera



NOTES:

  1. Test Frequency : 100KHz / 0.1V@25℃ (1MHz/0.1V for 22NM)
  2. Irms: DC current for an approximate temperature rise of 40℃ without core loss
  3. Isat1: Peak current for approximately 20% rolloff at +25℃
  4. Isat2: Peak current for approximately 20% rolloff at +125℃
  5. Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
  6. Storage temperature: -40℃ to +125℃





High Current SMT Power Inductors 110A Shielded Choke Coil RoHS Directive Compliant 0High Current SMT Power Inductors 110A Shielded Choke Coil RoHS Directive Compliant 1





Note: Product specifications can be customized.
