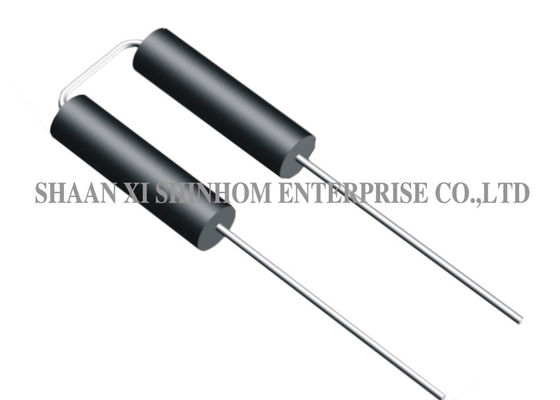

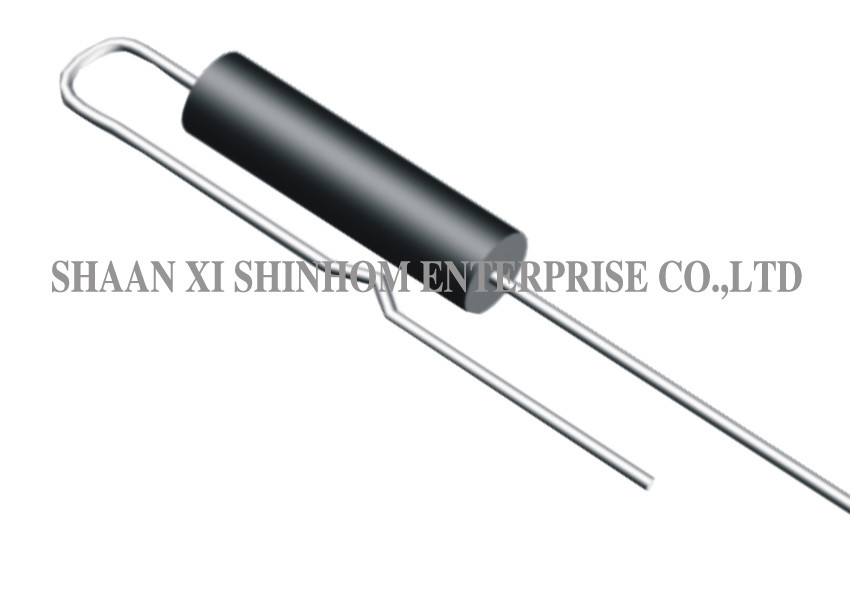

High Frequency Ferrite Bead For Automatic Insertion Into PC Boards

High Frequency Ferrite Bead For Automatic Insertion Into PC Boards
High Frequency Ferrite Bead For Automatic Insertion Into PC Boards High Frequency Ferrite Bead For Automatic Insertion Into PC Boards High Frequency Ferrite Bead For Automatic Insertion Into PC Boards

Large Image :  High Frequency Ferrite Bead For Automatic Insertion Into PC Boards Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Model Number: RH35 Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Certification: CE,RoHs,UL Material: Ni-Zn
Turns: 1Ts Type: Ferrite Bead
Composite: Ferrite Magnet Customized: Customized
High Light:

multilayer ferrite chip beads

,

emi filter bead

RH35 Ferrite Bead for Automatic Insertion into PC Boards,High frequency EMI Suppression Soft Ferrite Core beads





Features:

  • Lead ferrite bead core for automatic insertion into PC boards
  • RH type cores are produced for the automatic insertion into PC boards
  • Prevent undesirable signal feedback and parasitic OSC
  • RH filters suppress voltage and current spikes within the circuits and provide protection to semiconductor devices
  • Ferrite core made of NiZn, a material which works in a wide frequency range
  • Many different types for the best possible interference suppression
  • Operating temperature: -55°C up to +80°C



Notes:

  • Impedance: HP4191A or HP4194A HP4395A
  • Soldering Methods: Wave,Reflow
  • Operating Temperature:-25℃ to +85℃
  • Storage Temperature: -55℃ to +125℃
  • Terminal bending strength:24.5N Min





          High Frequency Ferrite Bead For Automatic Insertion Into PC Boards 0





For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.
