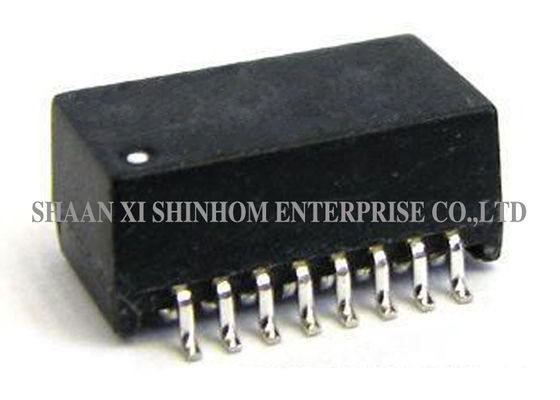

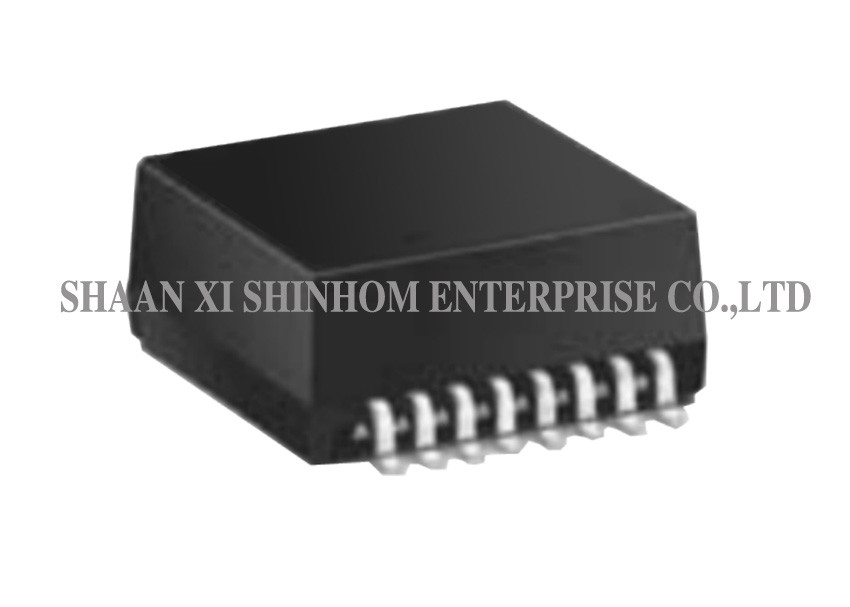

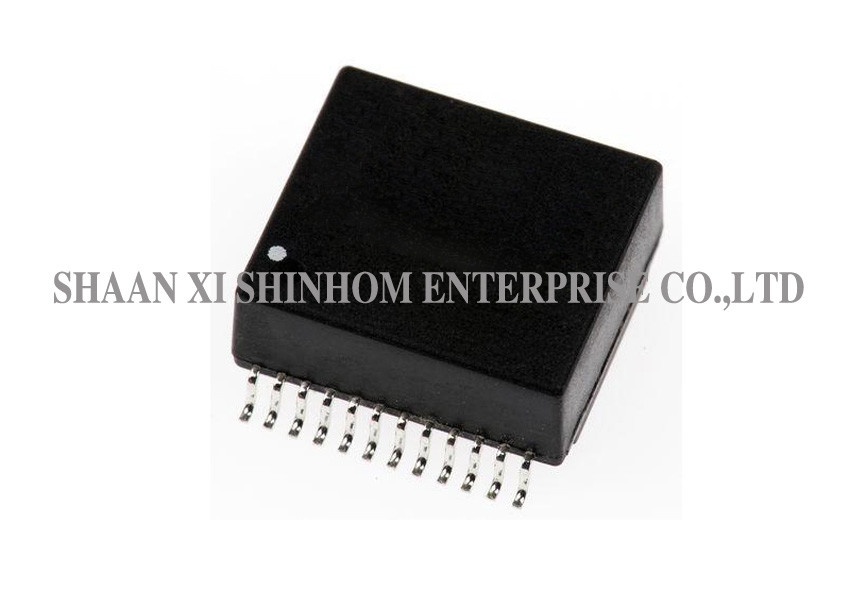

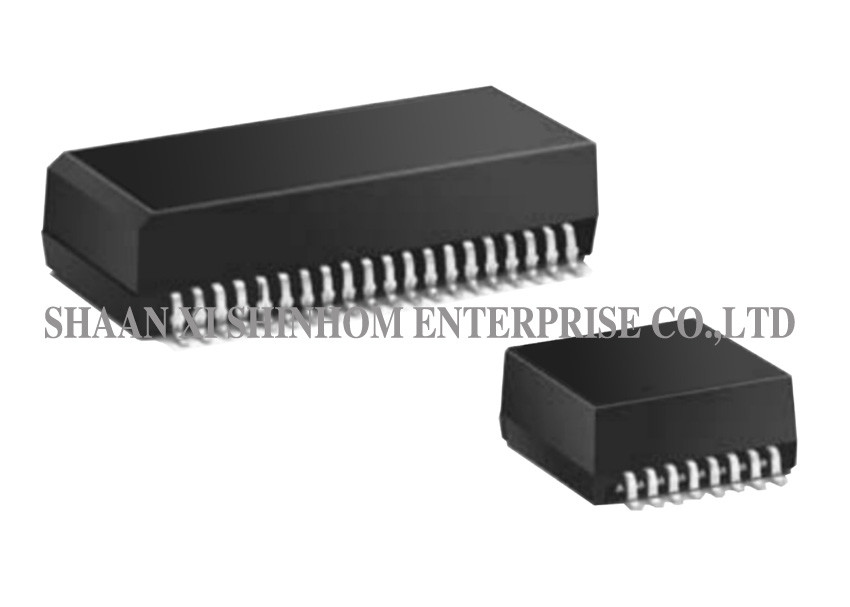

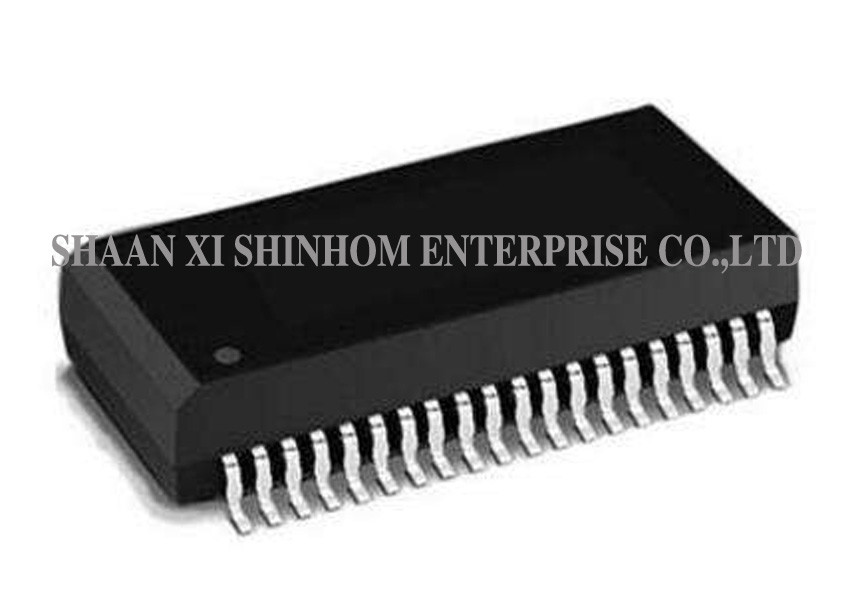

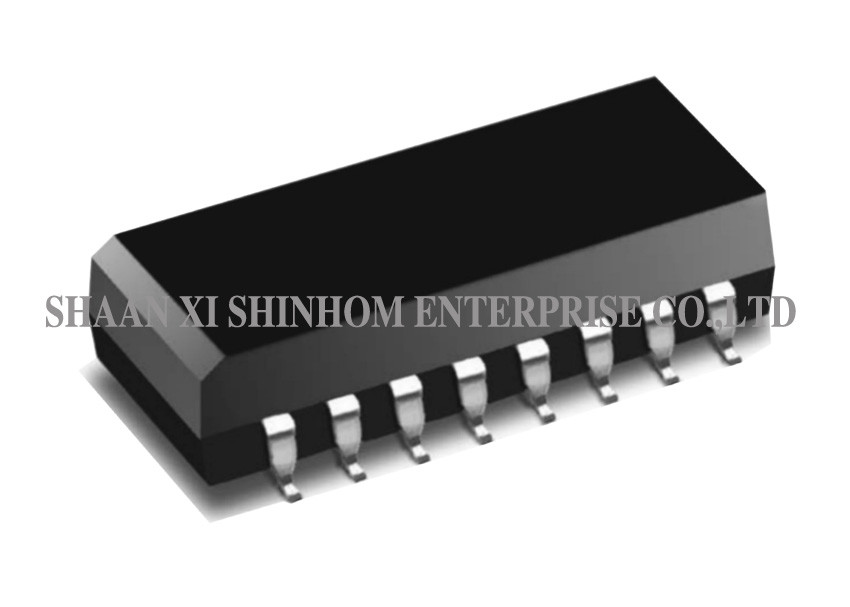

Electrical Ethernet LAN Transformer Full Duplex Compatible Low Insertion Loss

5000PCS
MOQ
Negotiation
Price
Electrical Ethernet LAN Transformer Full Duplex Compatible Low Insertion Loss
Features Gallery Product Description Request A Quote
Features
Specifications
Turns Ratio: 1:1
Insertion Loss: 1.0dB Max @1-100MHz
OCL: 350uH Min. 8mA DC Bias(line Side)
Speed: 1000Base-T
Hi-pot: 1500Vrms
Installation: SMT
Highlight:

lan magnetic transformer

,

ethernet magnetic transformer
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LAN-1000
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

LAN-1000 Series 1000 Base-T Magnetics modules, Ethernet Lan Electrical Transformer,Connector SMT Type POE+





 FEATURES:



· 1:1 Turns Ratio
· Full Duplex Compatible
· IEEE 802.3 Compliant

· Insertion Loss: 1.0dB Max @ 1-100 Mhz

· OCL:350μH Min 8mA DC bias (line side)
· Hi-pot: 1500 VRMS

· Soldering methods:Wave,Reflow
· Operating Temperature:0℃ to 70℃
· Storage Temperature:-55℃ to 125℃



Electrical Ethernet LAN Transformer Full Duplex Compatible Low Insertion Loss 0



We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

  • Inductors
  • High Frequency Transformers
  • Video & Audio Isolation Transformers
  • RF& Balun Transformers
  • Current Sensor Transformers
  • Lamination Power Transformers
  • Broadband Transformers
  • Encapsulated Transformers
  • Toroidal Transformers
  • EMI-filter
  • Common Mode Chokes
  • Telecom Magnetics
  • Ferrite Cores and Bobbins
  • Other Magnetics
