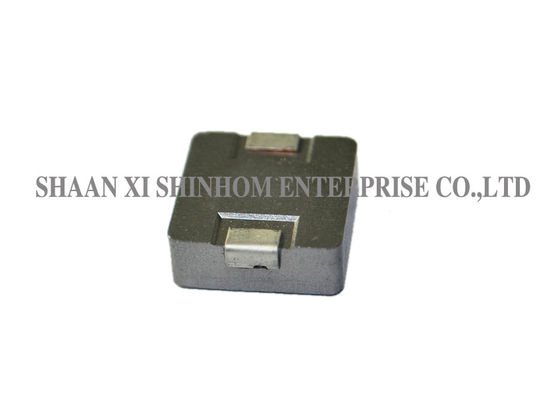

Ferrite Coil High Current Power Inductors , 22uH Inductor SMD Light Weight

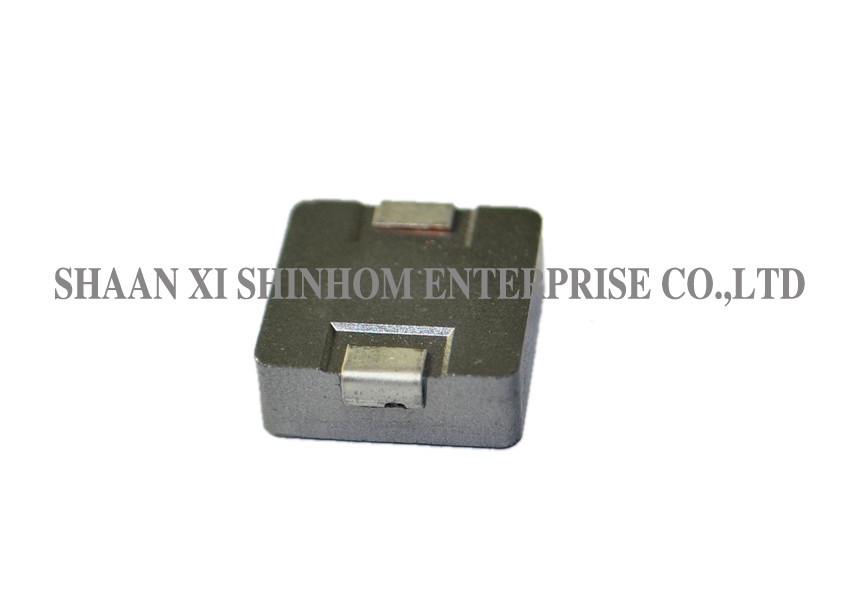

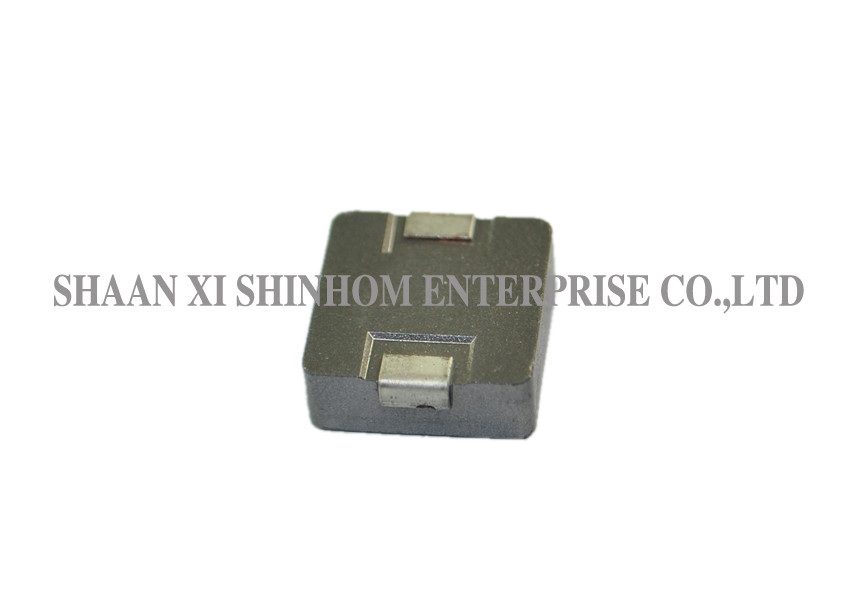

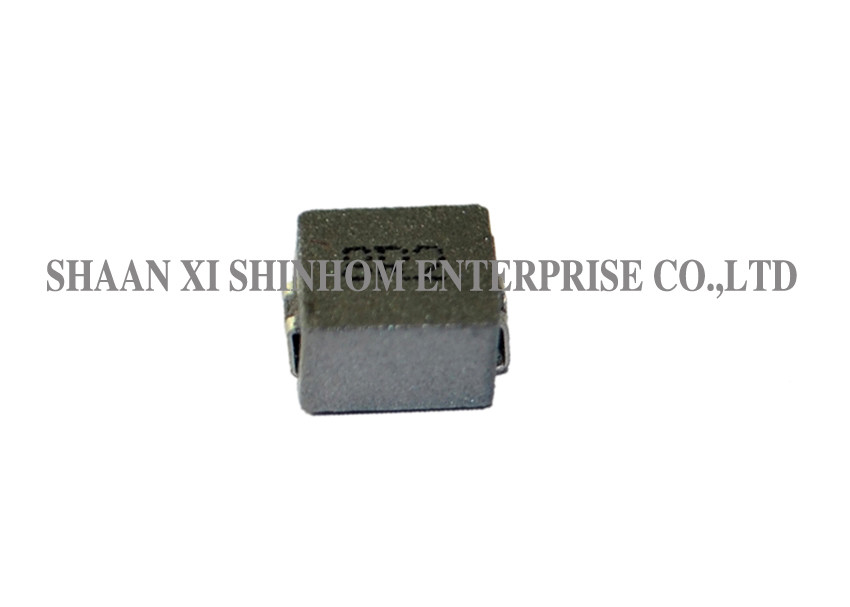

LPM0402/0603 Series high current power inductors,Chip Surface Mount SMD Power Inductor 22uH

FEATURES:

• Shielded construction
• Frequency range up to 3.0-5.0 MHz
• Lowest DCR/μH
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• Encapsulated body offers improved environmental protection and moisture resistance.
• Higher dielectric withstanding voltage vs. IHLP
• Flame retardant encapsulant (UL 94 V-0)
• Corrosion resistant package
• Compliant to RoHS directive 2002/95/EC

APPLCATIONS:

• PDA/notebook/desktop/server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• DC/DC converters in distributed power systems
• DC/DC converter for Field Programmable Gate Array (FPGA)

NOTES:·

• Test Frequency : 100KHz / 0.25Vdc
• Testing Instrument : L:HP4284A, CH11025,CH3302, CH1320, CH1320S LCR METER/Rdc:CH16502, Agilent33420A MICRO OHMMETER.
• Heat Rated Current (Irms) will cause the coil temperature rise approximately,△T=40℃ without core loss.
• Saturation Current (Isat) will cause L0 to drop approximately 20%
• The part temperature (ambient + temp rise) should not exceed 125℃ under worst case operating conditions. Circuit design, component, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.
• Operating Temperature & Storage Temperature: -40℃ - +105℃.

Note: Product specifications can be customized.
