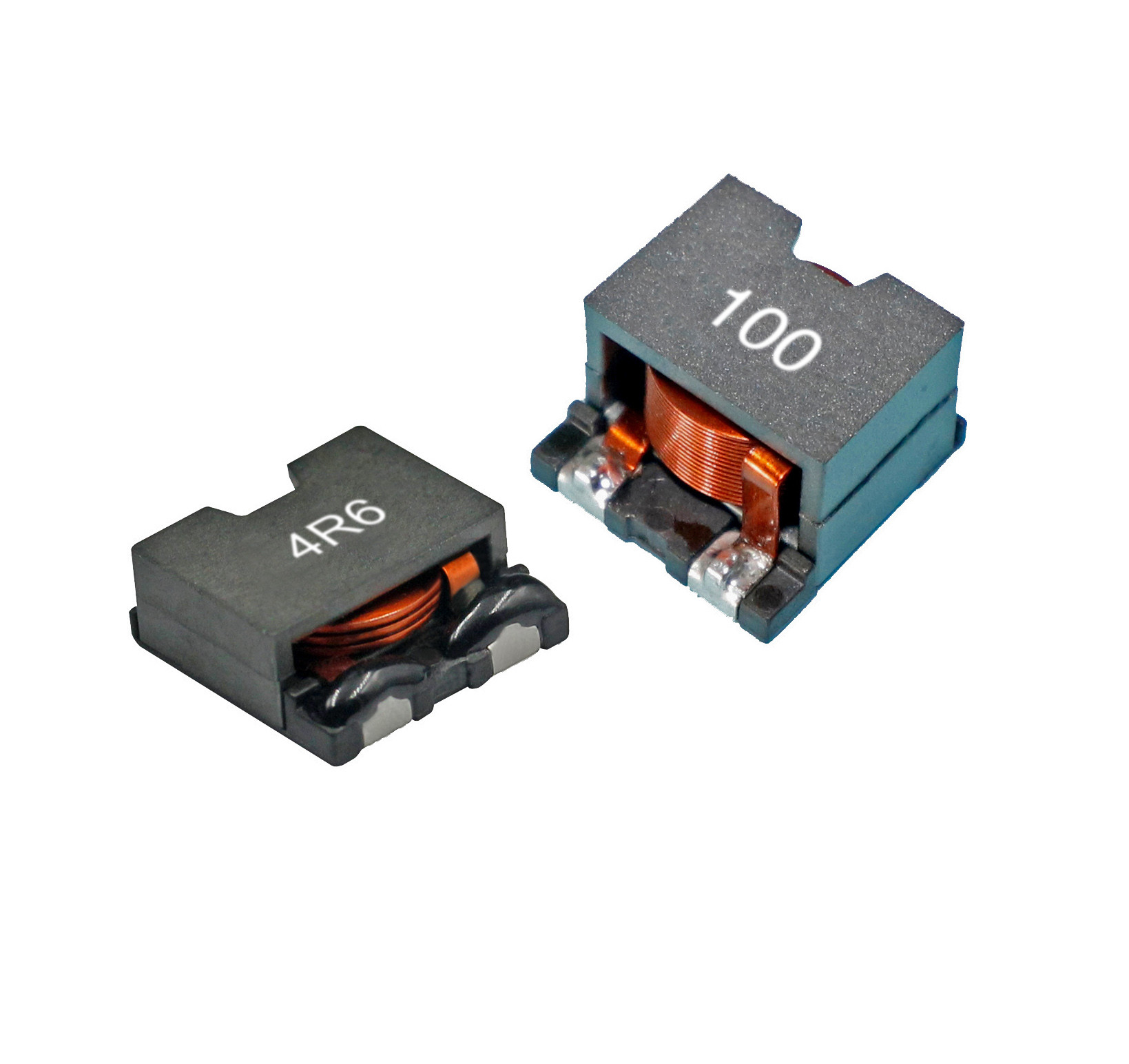

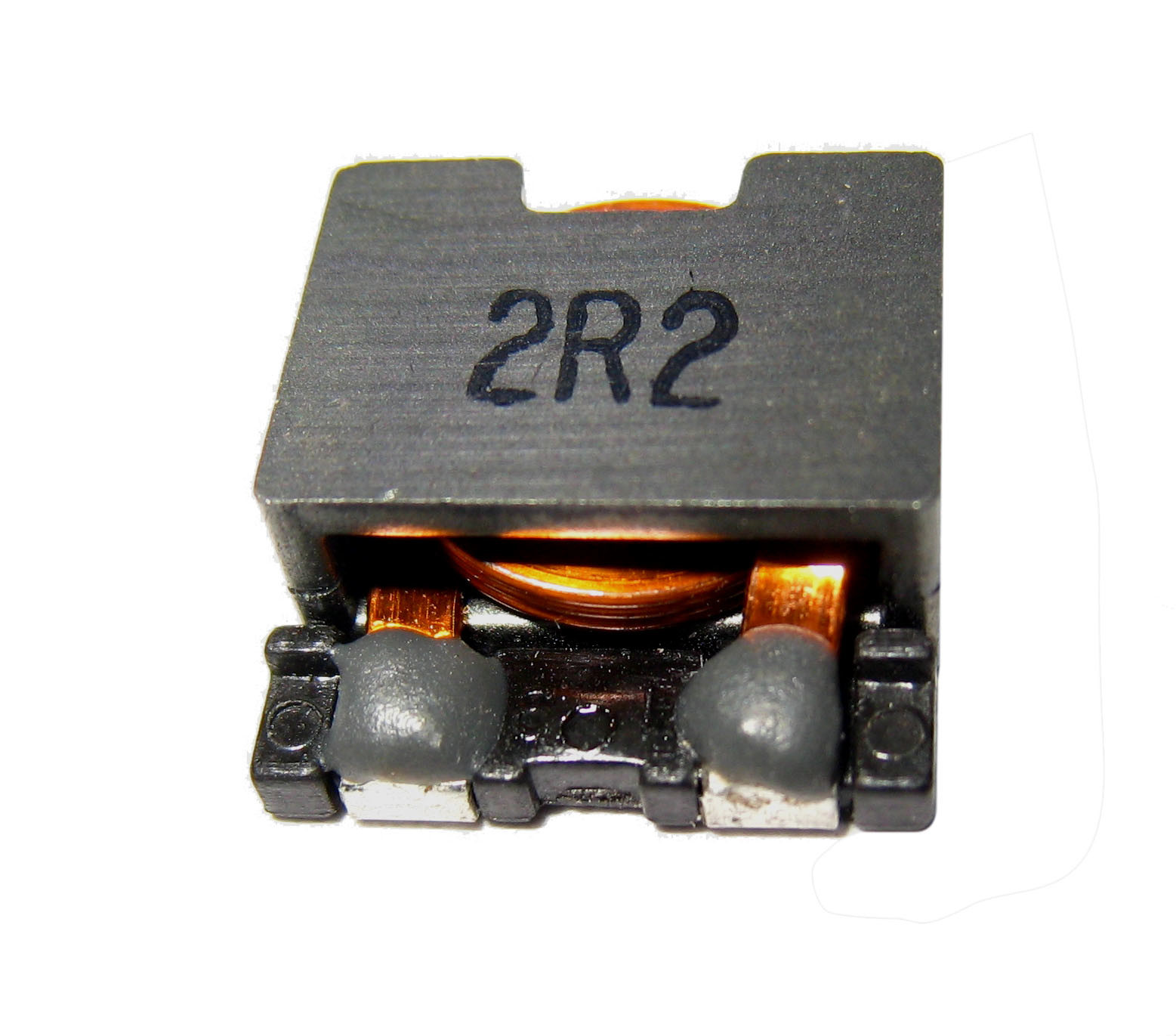

CEP126/135/159HT Series SMD High Current Inductors , Flat Wire , Single Winding , Low DCR Chokes
FEATURES:
Assemblage design,sturdy srtucture
High inductance,high current,low magnetic loss,low ERS,small parasitic capacitance
Flat wire winding,achieve a low DCR
Temperature rise current and saturation current is less influenced by environment
Filter signal, filter noise, stabilize current and suppress electromagnetic interference
NOTES:·
Isat Current L value drop 65% typ.at IDC against its initial value
Irms Temperature rise 40℃Max Reference Ambient temperature
Inductance Testing: HP4284A, 100kHz/1V or equivalent
Solderability: 75% of the lead wire Shall be covered
Operating Temperature:-40℃ to +105℃
Storage Temperature: -40℃ to +105℃
Moisture resistance: △L/L≤±10% △Q/Q≤±25%
The part temperature(ambient and temp rise)should not exceed105℃ under worse case operating conditions. Circuit design,component placement, PWB trace size and thickness, airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the endapplication.
