24 Pins Ethernet LAN Transformer 1000 Base-T SMT Thru Hole Available

Name: 24 Pins Ethernet LAN Transformer 1000 Base-T SMT Thru Hole Available
Brand: Shinhom
SKU: HS24001S
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (109 reviews)

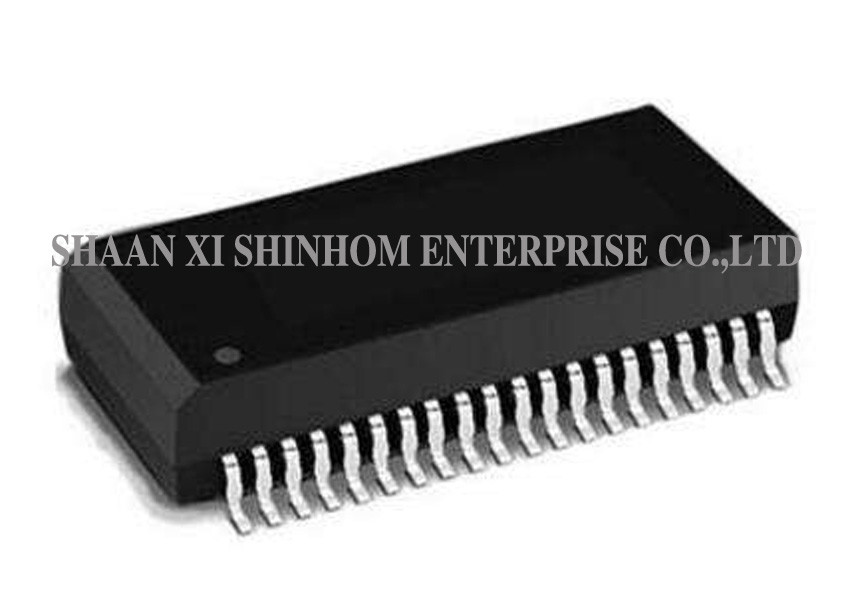

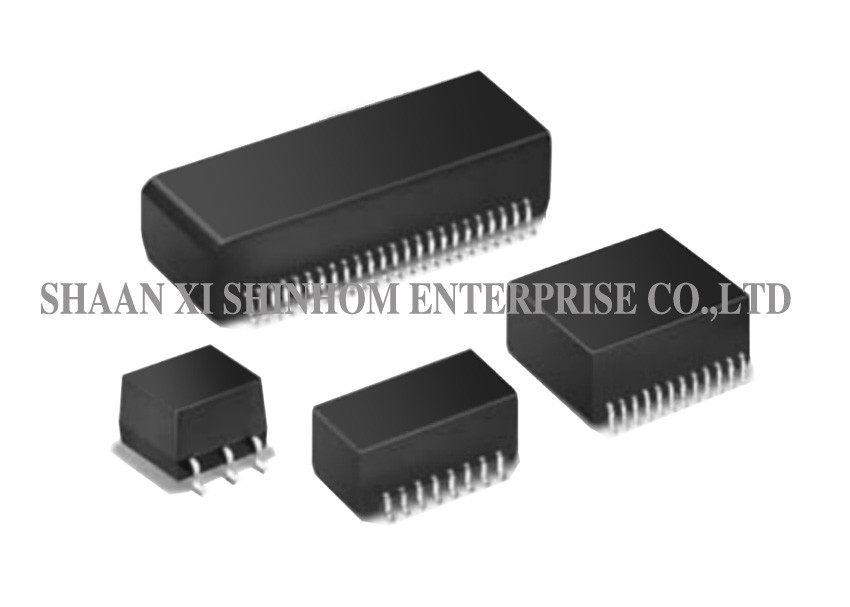

Large Image : 24 Pins Ethernet LAN Transformer 1000 Base-T SMT Thru Hole Available Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	HS24001S

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Name:	24 Pins LAN Transformer	Range Of Application:	PCB, Integrated IC, Computer, Communication
Transport Package:	Tape & Reel	Specification:	1000base-t
Operating Temperature:	0℃ ~ 70℃	Storage Temperature:	-40℃ ~ 80℃
High Light:	lan magnetic transformer , lan isolation transformer

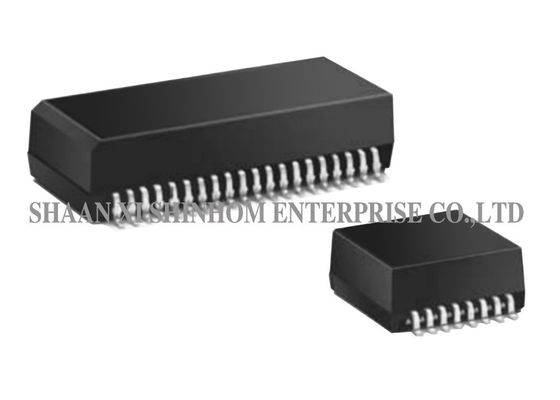

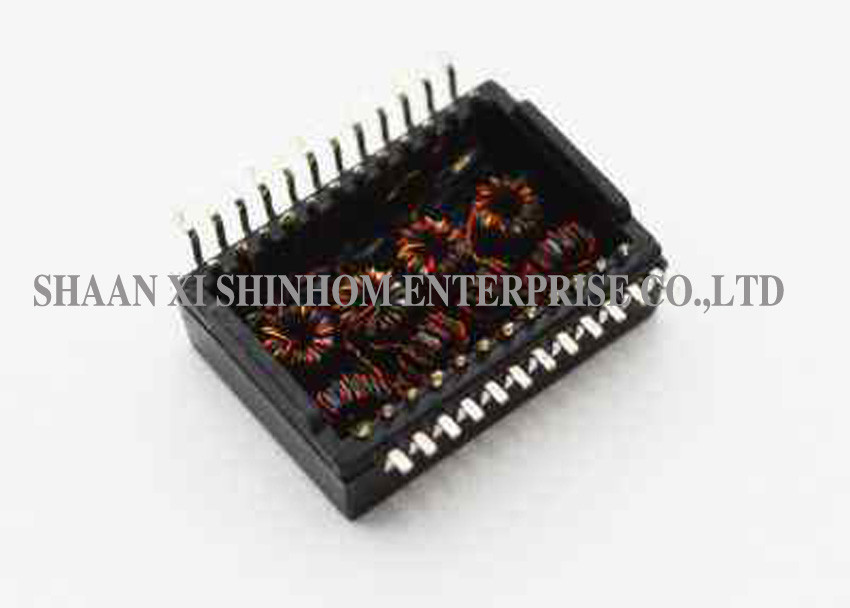

HS24001S 1000Base-T transformer module,Power/Circuit SMD Lan Transformer,24 Pins

FEATURES:

Designed to meet IEEE 802.3 at requirements.
RoHS compliant
Operating temperature range:0℃ to +70℃
Storage temperature range: -40℃ to +80℃
Isolation voltage: 1500Vrms Min
SMT & Thru Hole available
Soldering methods:Wave,Reflow

Electrical specification:

Turn Ratio (±5%): 1CT : 1CT
Inductance (100KHz/0.1V@8mA): 350uH MIN
Insertion Loss (dB Max): -1.0dB (1-100MHz)
Return Loss (dB Min): -18dB (1-30MHz),-14.4dB(40MHz),-13.1dB(50MHz),-12dB(60-80MHz),-10dB(100MHz)
Cross talk(dB Typ): -45dB(30MHz),-40dB(60MHz),-35dB(100MHz)
DCMR (dB Typ): -43dB (30MHz),-37dB(60MHz),-33dB(100MHz)
HI-POT: 1500Vrms/0.5mA/2Sec
Operating Temperature: 0℃~ +70℃
