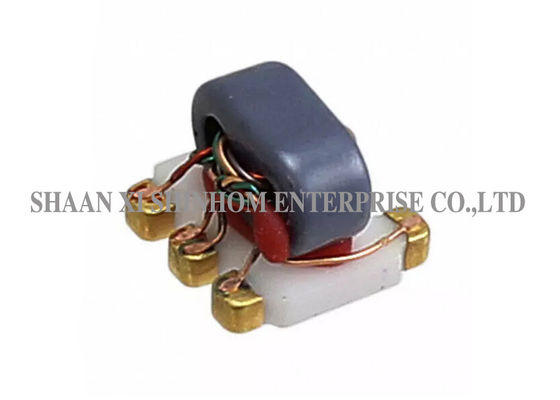

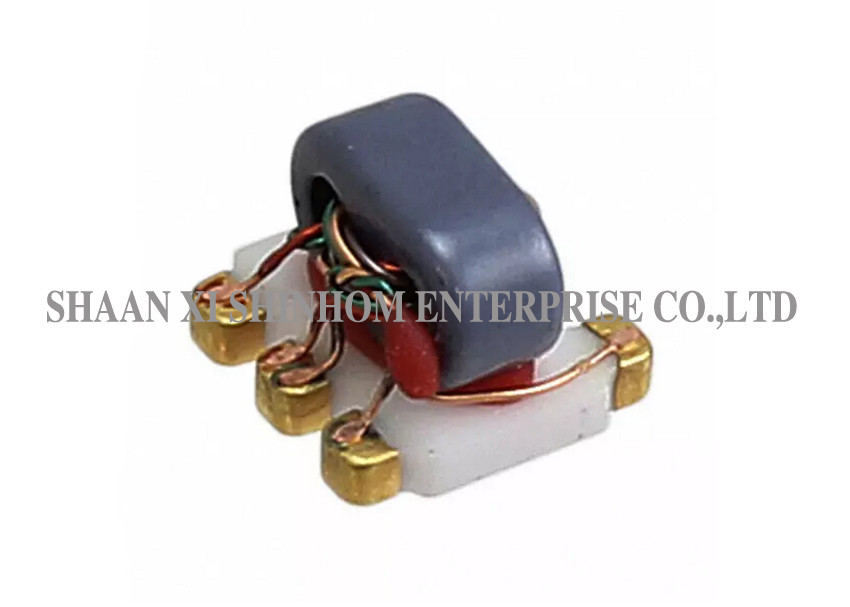

Auto Surface Mount RF Transformer , SMD Balun Transformer Customized

Auto Surface Mount RF Transformer , SMD Balun Transformer Customized
Auto Surface Mount RF Transformer , SMD Balun Transformer Customized

Large Image :  Auto Surface Mount RF Transformer , SMD Balun Transformer Customized Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RF3S-2575
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Frequency: 5-1250MHz Characteristic Impedance: 75Ω
Operating Temperature: -40℃ To 85℃ Storage Temperature: -55℃ To 100℃
Impedance Ratio: 3:1 Structure Of Magnetizer: Ferrite Core
High Light:

rf impedance transformer

,

rf balun transformer

3:1 Auto transformer,RF Balun transformer,SMD customized Balun transformer,75 Ohm,5MHz - 1250MHz



Features:

  • 3: 1 Impedance
  • 75Ω Characteristic Impedance
  • Frequency: 5 to 1250 MHz
  • 260°C Reflow Compatible
  • RoHS compliant



Applications:

  • For broadband and wireless communications
  • For VHF/UHF receivers/transmitters and push-pull amplifiers



ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

  • Frequency: 5-1250MHz
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -55℃ to 100℃





Parameter Test Conditions Units Min Typ Max
Main line Loss 5-1250MHz dB － 0.5 1.0
Input Return Loss 5-1250MHz dB 16.0 25.0 －
