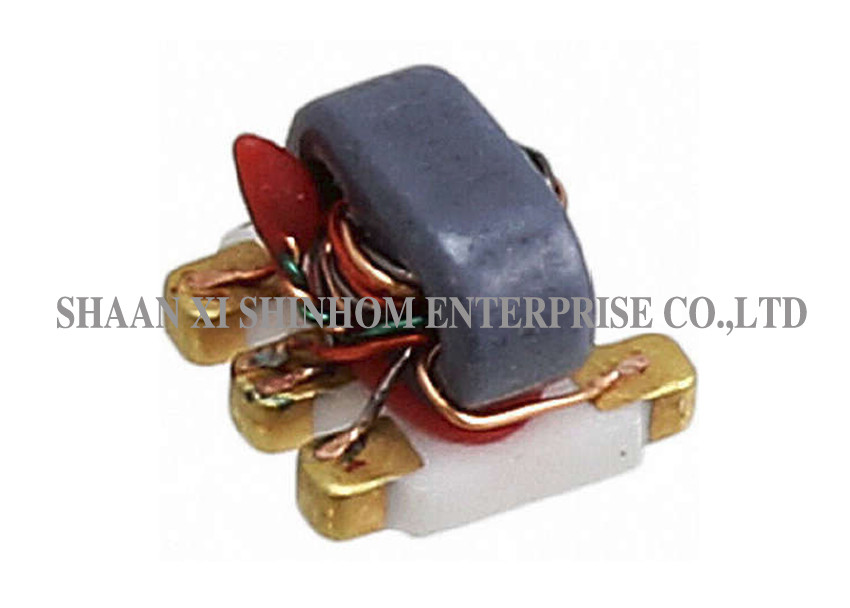

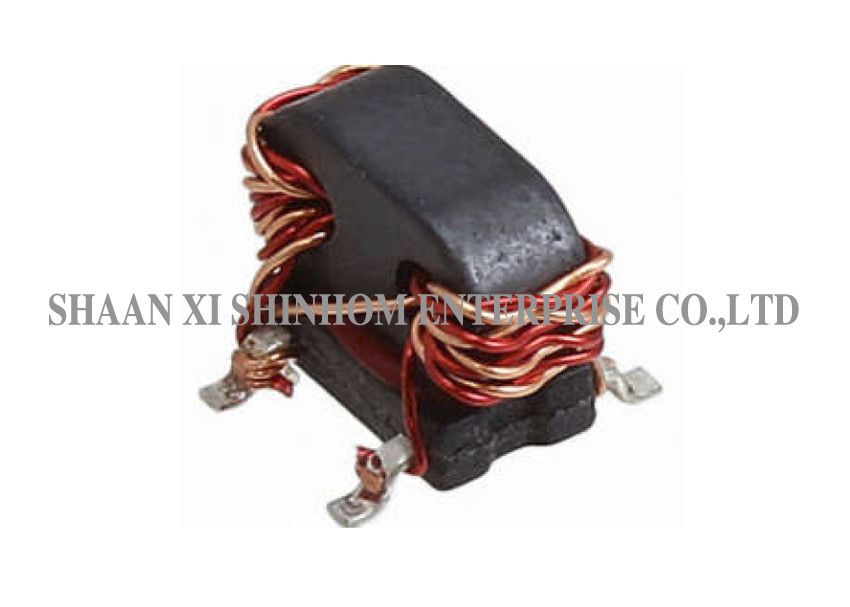

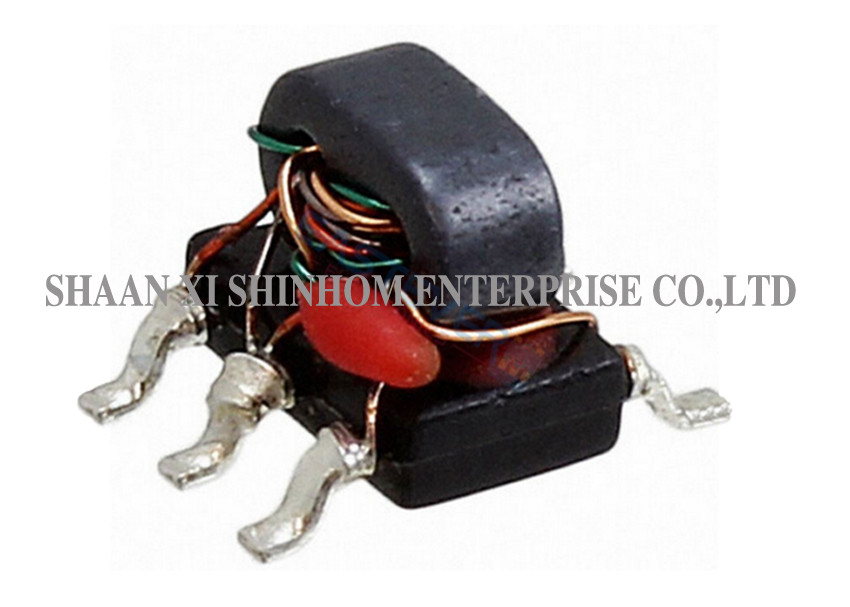

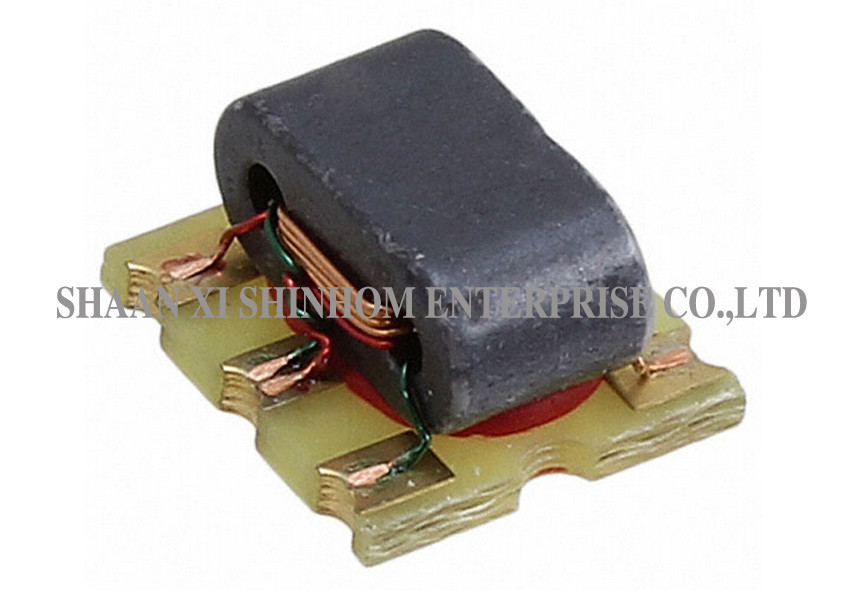

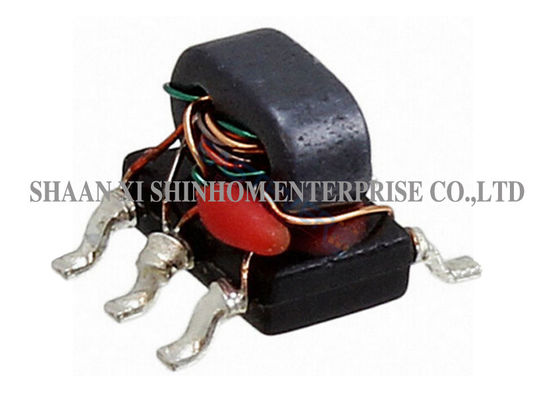

1-350MHz RF Transformer 75Ω Characteristic Impedance For Wireless Communications

1-350MHz RF Transformer 75Ω Characteristic Impedance For Wireless Communications
1-350MHz RF Transformer 75Ω Characteristic Impedance For Wireless Communications 1-350MHz RF Transformer 75Ω Characteristic Impedance For Wireless Communications 1-350MHz RF Transformer 75Ω Characteristic Impedance For Wireless Communications 1-350MHz RF Transformer 75Ω Characteristic Impedance For Wireless Communications

Large Image :  1-350MHz RF Transformer 75Ω Characteristic Impedance For Wireless Communications Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RF3SC-3743
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Frequency: 1-350MHz Characteristic Impedance: 75Ω
RF Power: 0.5W DC Current: 30mA
Operating Temperature: -40℃ To 85℃ Impedance Ratio: 1:4CT
High Light:

rf impedance transformer

,

rf balun transformer

1:4CT Flux coupled transformer,SMD RF Balun transformer,1 - 350MHz,75 Ohm Characteristic Impedance,0.5W

Features:

  • 1: 4CT Impedance
  • RF power: 0.5W
  • DC current: 30mA
  • 75Ω Characteristic Impedance
  • Frequency: 1-350MHz
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -55℃ to 100℃



Applications:

  • For broadband and wireless communications
  • For VHF/UHF receivers/transmitters and push-pull amplifiers



ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

Parameter Test Conditions Units Min Typ Max
Main line Loss(out1) 1-350MHz dB 0.8 1.5
Main line Loss(out2) 1-350MHz dB 0.7 1.5
Amplitude Balance 1-350MHz dB 0.3 ±0.5
Phase Balance 1-350MHz Degrees ±1.0 ±5.0
Input Return Loss 1-350MHz dB 10.0 16.0
