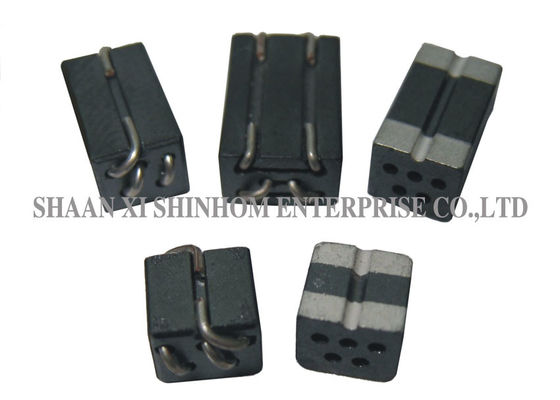

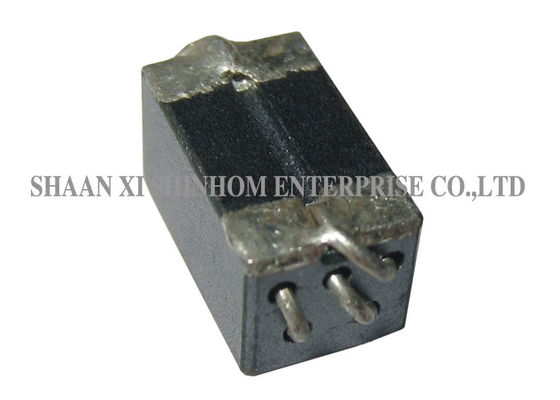

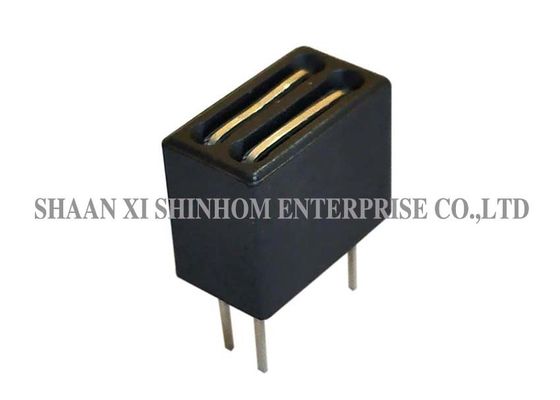

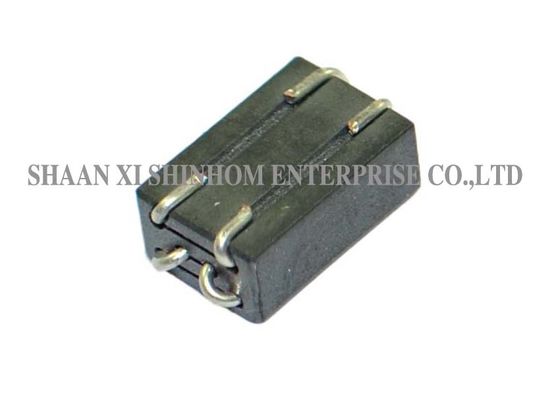

5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment

5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment
5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment 5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment 5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment 5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment

Large Image :  5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SMB5H05-3T
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Size: 5.0*5.5*4.6mm Turns: 3Ts
Material: NiZn Application Condition: EMC/EMI
Impedance: 416Ω Typ@100MHz Rated Current: 5A
Product Name: Ferrite Bead Choke Type: Soft
High Light:

multilayer ferrite chip beads

,

emi suppression beads

Ferrite Bead Inductors in Various Types, Suitable for EMI Suppression,SMD ferrite bead axial choke





Features:

  • Through-hole axial ferrite beads for EMI suppression
  • Through-hole ferrite beads in ragged construction
  • Surface-mount wire wound beads with high frequency and EMI suppression
  • Low DCR and high IDC beads inductor



Application:

  • Modems, PDP, LCD, and TVs converters
  • Mobile radios, DC/DC converters
  • Noise filtering devices
  • Track and SCR control circuits
  • Wireless communication equipments
  • Computer disk drive and PC board to filter the EMI from outside sources such as car radios, mobile phones and VCRs



Electrical specification:

  • Impedance: 272Ω Typ@25MHz
  • Impedance: 416Ω Typ@100MHz
  • Rated Current: 5.0A
  • RDC: 7.0mΩMax
  • Operating temperature: -40℃ to 125℃

5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment 0





Test curve



5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment 1



For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.

5.0*5.5*4.6mm Noise Filter Bead SMD For Wireless Communication Equipment 2
