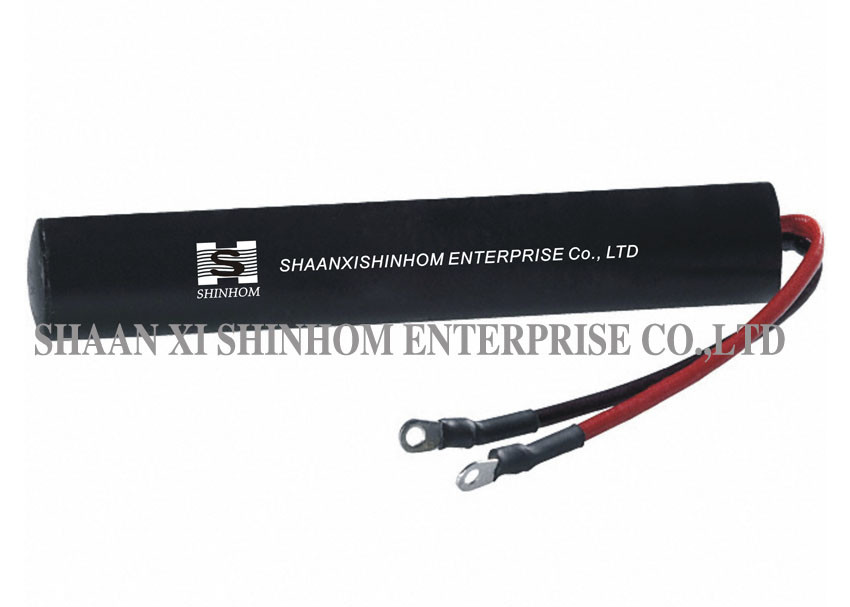

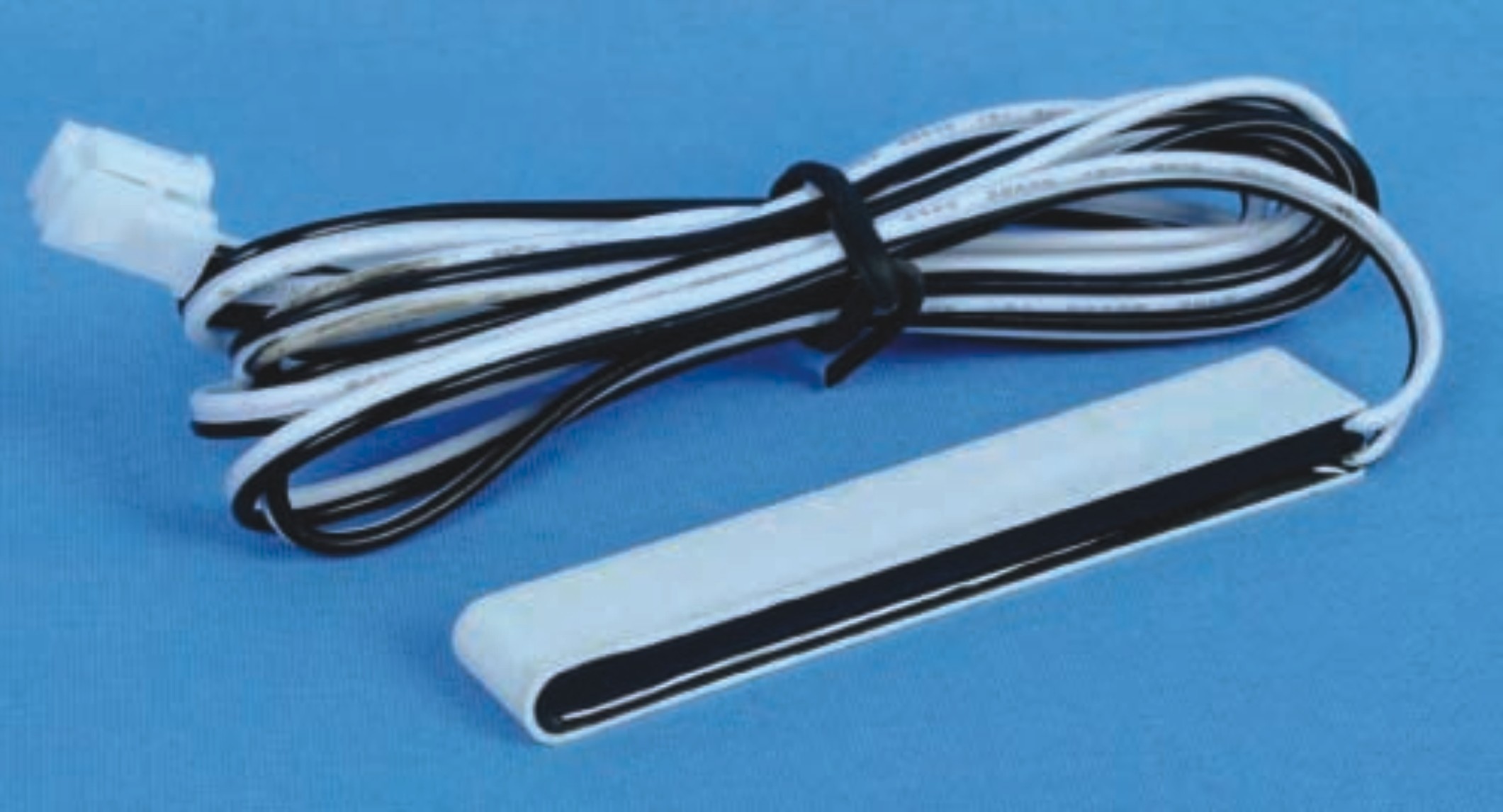

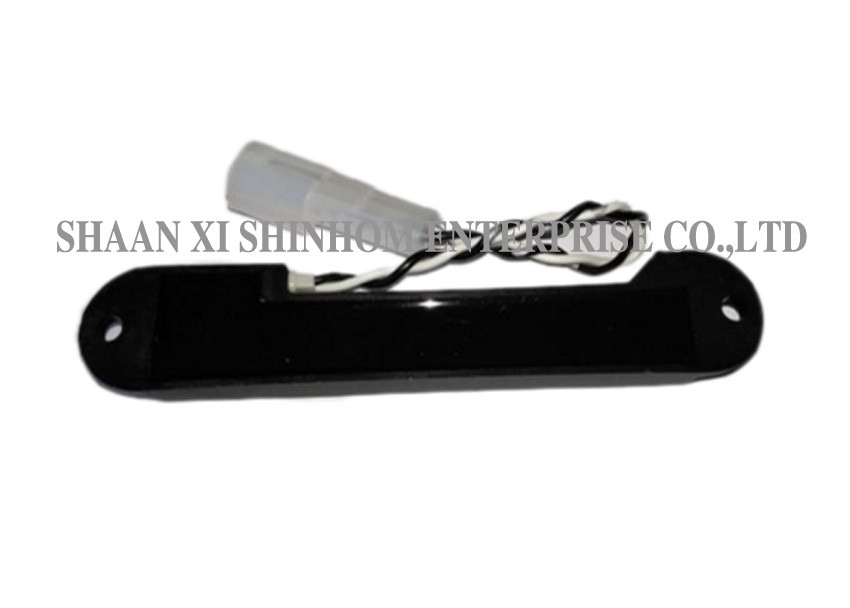

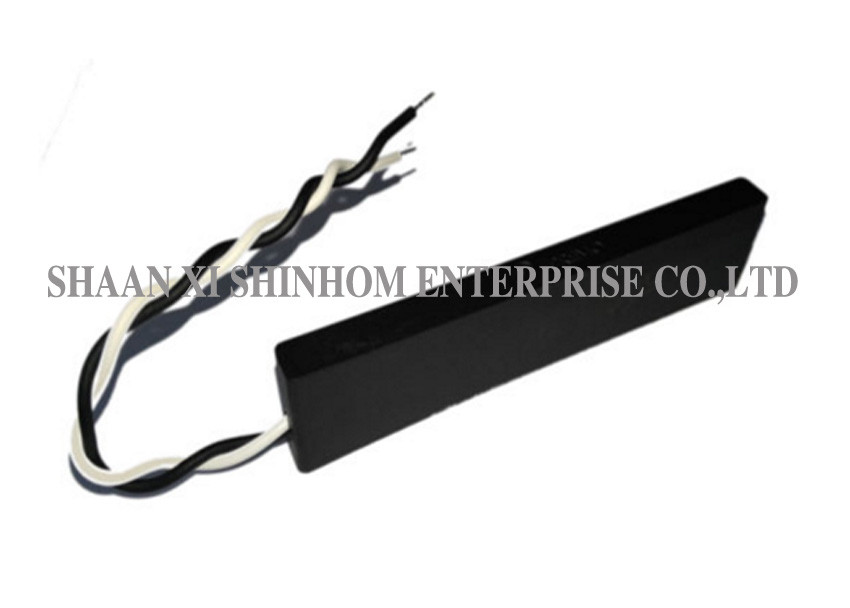

Low Profile RFID Transponder Coil Base Potted High Temperature Stability

Low Profile RFID Transponder Coil Base Potted High Temperature Stability
Low Profile RFID Transponder Coil Base Potted High Temperature Stability Low Profile RFID Transponder Coil Base Potted High Temperature Stability Low Profile RFID Transponder Coil Base Potted High Temperature Stability Low Profile RFID Transponder Coil Base Potted High Temperature Stability

Large Image :  Low Profile RFID Transponder Coil Base Potted High Temperature Stability Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RFID Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Size: 7016/8213/8516/10320 Inductance: 500uH/345uH/161uH/426uH/300uH
Inductance Tolerance: ±2% Frequency: 125KHz/134.2KHz
Q: 125 Operating Temperature: -40℃ To +85℃
High Light:

rfid transponder coil

,

qi wireless charging coil

RFID Low-profile Base-potted Emitter Antenna,RFID antenna coils,RFID transponder inductor





Ferrite + capacitor in a box potted) and easy to joint to anywhere by a simple adhesive tape.
These kind of antennas provide a cable with a customized length without connector in its standard version (connector can be assembly under demand).
Ideally used access and start Hand Free subsystem for Passive Entry keyless Go System
Requirements for automotive application.
- Low profle size.
- Low tolerances in the resonance frequency LC
- High stability in temperature (-40ºC up to +85ºC).
- Transmitting low frequency LF (20kHz, 125kHz and 134kHz).
- Long reading distances and average current 2-4App.
- Custom LCR value under demand.





Electrical specification:

Part Number Frequency(KHz) Inductance(uH) Q Capacitance(nF)
RFID(Size)-1 125 500±2% 125 3.3
RFID(Size)-2 125 345±2% 125 4.7
RFID(Size)-3 125 161±2% 125 10.0
RFID(Size)-4 134.2 426±2% 125 3.3
RFID(Size)-5 134.2 300±2% 125 4.7
  • Several combinations of inductance and capacitor values are offered as standard versions. Any other combination can be provided, together with the possibility of fully customized design, depending mainly of capacitor size available.
  • Resonant frequency: 125KHz±1.5%@25℃
  • 125KHz±3%@-40℃ to +85℃
  • 134.2KHz±1.5%@25℃
  • 134.2KHz±3%@-40℃ to +85℃
  • Induced current: 2.8A Max,Duty 30%
  • Operating temperature: -40℃ to +85℃
  • Storage temperature: -40℃ to +105℃

Low Profile RFID Transponder Coil Base Potted High Temperature Stability 0





For More RFID antenna coil, Please Go To Our Website Or Contact Us.

Low Profile RFID Transponder Coil Base Potted High Temperature Stability 1
