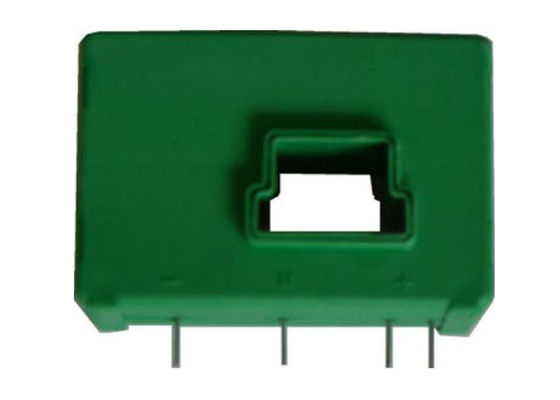

HBC-LTA Series Current Transducer Hall Effect Sensor for UPS and SMPS Current Monitoring with up to 300A input





ELECTRICAL DATA:

  HBC100LTA HBC200LTA HBC300LTA
Rated input current 100 200 300 A
Test current range 200(±18V,20Ω) 400(±18V,30Ω) 600(±18V,20Ω) A
Turns ratio 1:2000 1:2000 1:3000
Test resistance with±12V @±100Amax 80(max) @±200Amax 80(max) @±300Amax 76(max) Ω
  @±200Amax 25(max) @±400Amax 20(max) @±600Amax 22 (max) Ω
with±15V @±100Amax 110(max) @±200Amax 120(max) @±300Amax 100(max) Ω
  @±200Amax 40(max) @±400Amax 30(max) @±600Amax 36(max) Ω
Rated output current 50±0.5% 100±0.5% 100±0.5% mA
Supply voltage ±12~±18 V
Consumption current ≤±20 mA
Zero offset current ≤±0.2 mA
Offset current Drift -40℃~85℃,≤±0.5 mA
Response time <1 µs
Linearity ≤±0.2 %FS
Insulation voltage 50HZ,1min,6 KV
di/dt >100 A/μs
Bandwidth(-3dB) DC…100 KHz
Sec winding resistance 21 21 32 Ω
Operating Temperature -40~+85
Storage Temperature -40~+105



6KV 50HZ Hall Effect Sensor High Accuracy For UPS SMPS Current Monitoring 0



Attention:

  • When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor).
  • The output amplitude of the sensor can be adjusted according to users requirements.
  • Custom design in the nominal input current and the output voltage available



Features:

  • Sensor with a galvanic isolation between primary and secondary circuit
  • Provides accurate electronic measurement of DC, AC or pulsed currents
  • Operating currents: 0 to 300A
  • Rated output current: 50mA±0.5%, 100mA±0.5%
  • Mount easily
  • High accuracy grade



Applications:

  • Power supplies for welding applications
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)
  • Static converters for DC motor drives





Notes: Product specifications can be customized
