1000A Rated Input Hall Effect Current Sensor with Galvanic Isolation and ±15V Supply Voltage Clamp On Current Transducer

5000PCS
MOQ
Negotiation
Price
1000A Rated Input Hall Effect Current Sensor with Galvanic Isolation and ±15V Supply Voltage Clamp On Current Transducer
Features Gallery Product Description Chat Now
Features
Specifications
Supply Voltage: ±15V±5%
Input Current: 200A-1000A
Output Voltage: 4.0V±1%
Linearity: ≤1%FS
Operating Temperature: -40～+85℃
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HKC-FK
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T,L/C
Supply Ability: 1000000/MONTH
Product Description
Electrochemical Hall Effect Current Sensor, Clamp On Current Transducer
Product Overview

HKC-FK Series Hall Current Sensor Instrument Transformer Clamp on Current Transducer with up to 1000A rated input

HKC-FC series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Directions for Use
  • When the current to be measured passes through the sensor, the voltage will be measured at the output end. (Note: Incorrect wiring may result in sensor damage)
  • Custom designs with different rated input currents and output voltages are available.
Applications
  • Variable speed drives
  • Welding machines
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Electrochemical systems
Standards Compliance
  • UL94-V0
  • EN60947-1:2004
  • EC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000
Electrical Specifications
Parameter HKC200FK HKC400FK HKC600FK HKC800FK HKC1000FK Unit
Rated input current (IP) 200 400 600 800 1000 A
Test current range 400 800 1200 1600 2000 A
Rated output voltage 4±1% V
Supply voltage ±15 ±5% V
Offset voltage ≤±25 mV
Magnetic offset voltage ≤±25 mV
Offset voltage drift ≤±1 mV/℃
Linearity ≤1 %FS
Response time ≤7 μS
Insulation voltage 2.5@(50HZ,1min) KV
Operating temperature -25～+85 ℃
Storage temperature -40～+105 ℃

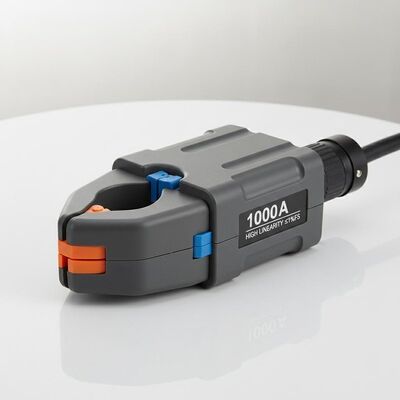

1000A Rated Input Hall Effect Current Sensor with Galvanic Isolation and ±15V Supply Voltage Clamp On Current Transducer 0
Note: Product specifications can be customized to meet specific requirements.
