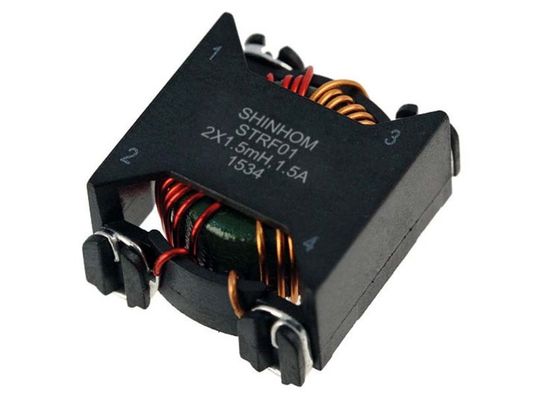

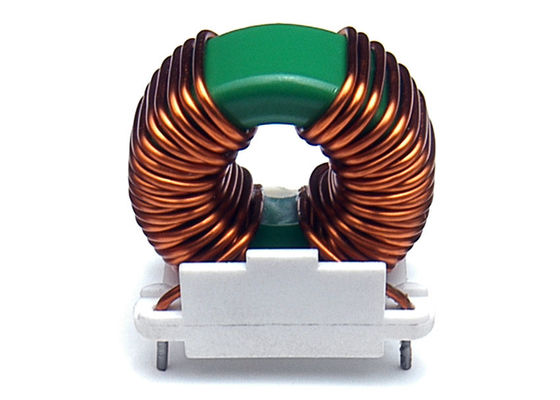

10KHz Common Mode Inductor Toroidal Ferrite Core Inductor With ISO9001

10KHz Common Mode Inductor Toroidal Ferrite Core Inductor With ISO9001
10KHz Common Mode Inductor Toroidal Ferrite Core Inductor With ISO9001 10KHz Common Mode Inductor Toroidal Ferrite Core Inductor With ISO9001 10KHz Common Mode Inductor Toroidal Ferrite Core Inductor With ISO9001 10KHz Common Mode Inductor Toroidal Ferrite Core Inductor With ISO9001

Large Image :  10KHz Common Mode Inductor Toroidal Ferrite Core Inductor With ISO9001 Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Winding: Common Mode Current: Up To 25A
Nature Of Operation: Choke Coil Specification: RoHS, ISO9001
Test Frequency: 10KHz Core: Toroidal Ferrite Core
High Light:

common mode toroidal chokes

,

common mode power line choke

Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification



Features:
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
6. Operating temperature: -55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance

Application:
     Low Frequency AC Reactor, Solar Power System, Power Conditioning System,Wind Power System, Automatic Drive Machine, Induction Heater, Welding Machine, Paper Industries, RFI Suppression Choke, DC/DC converters, IP and OP devices.



Technical information:
1. Max operating voltage:250V at 40℃
2. Hi-Pot 2500Vac winding to winding 3S.
3. Operating temperature: -40℃ to +105℃
4. Storage Temperature: -40℃ to +105℃





Note: Product specifications can be customized.
