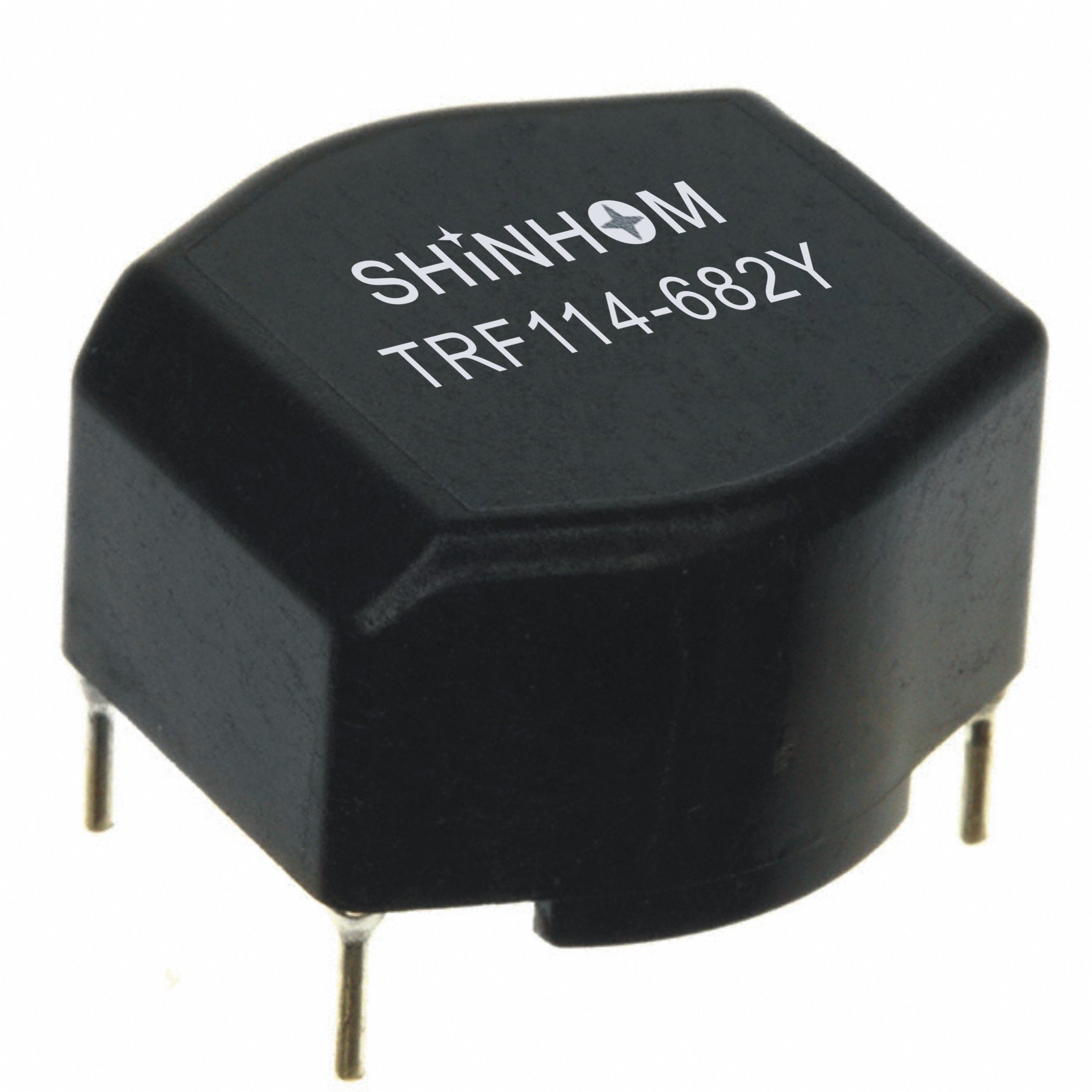

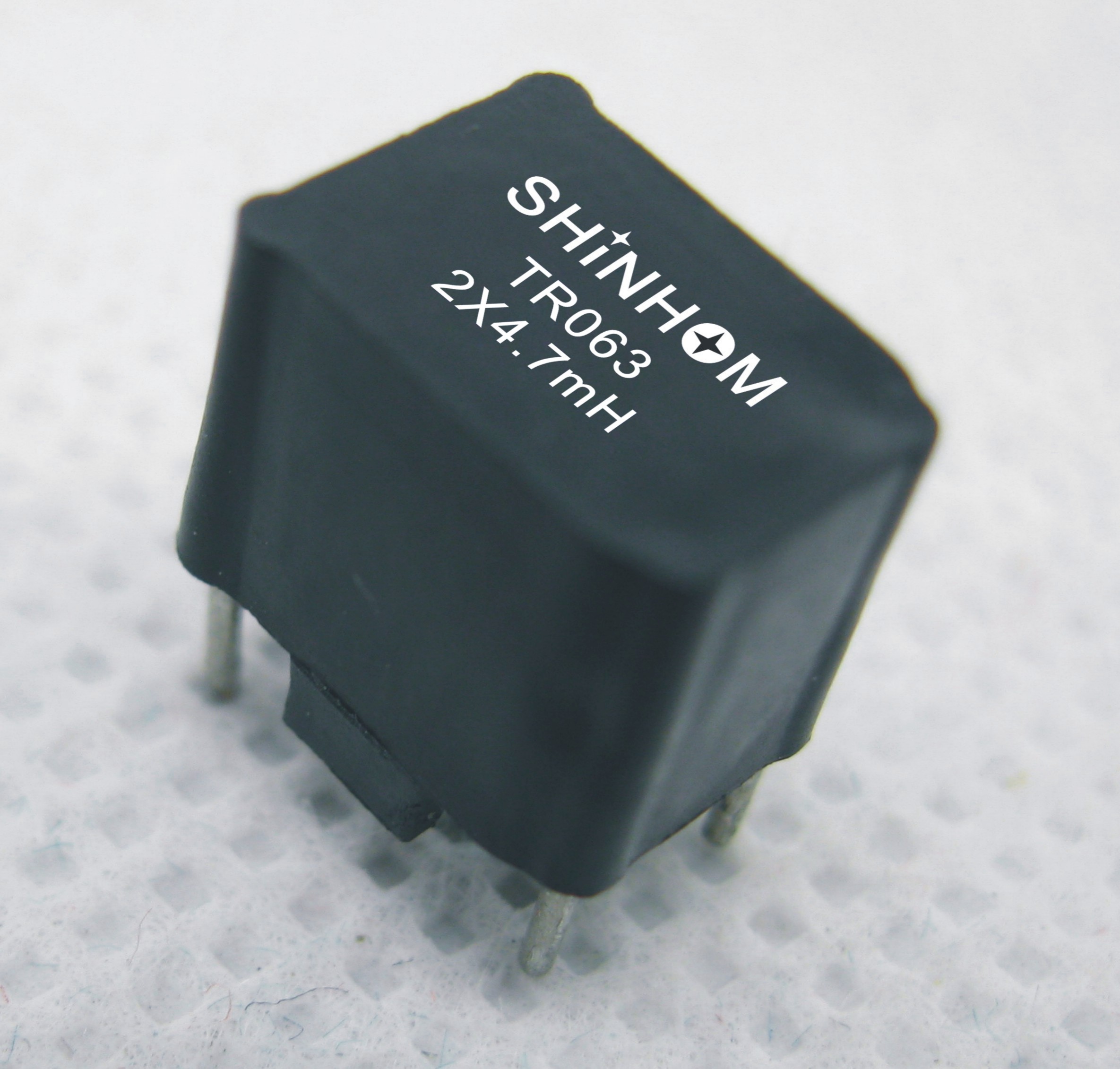

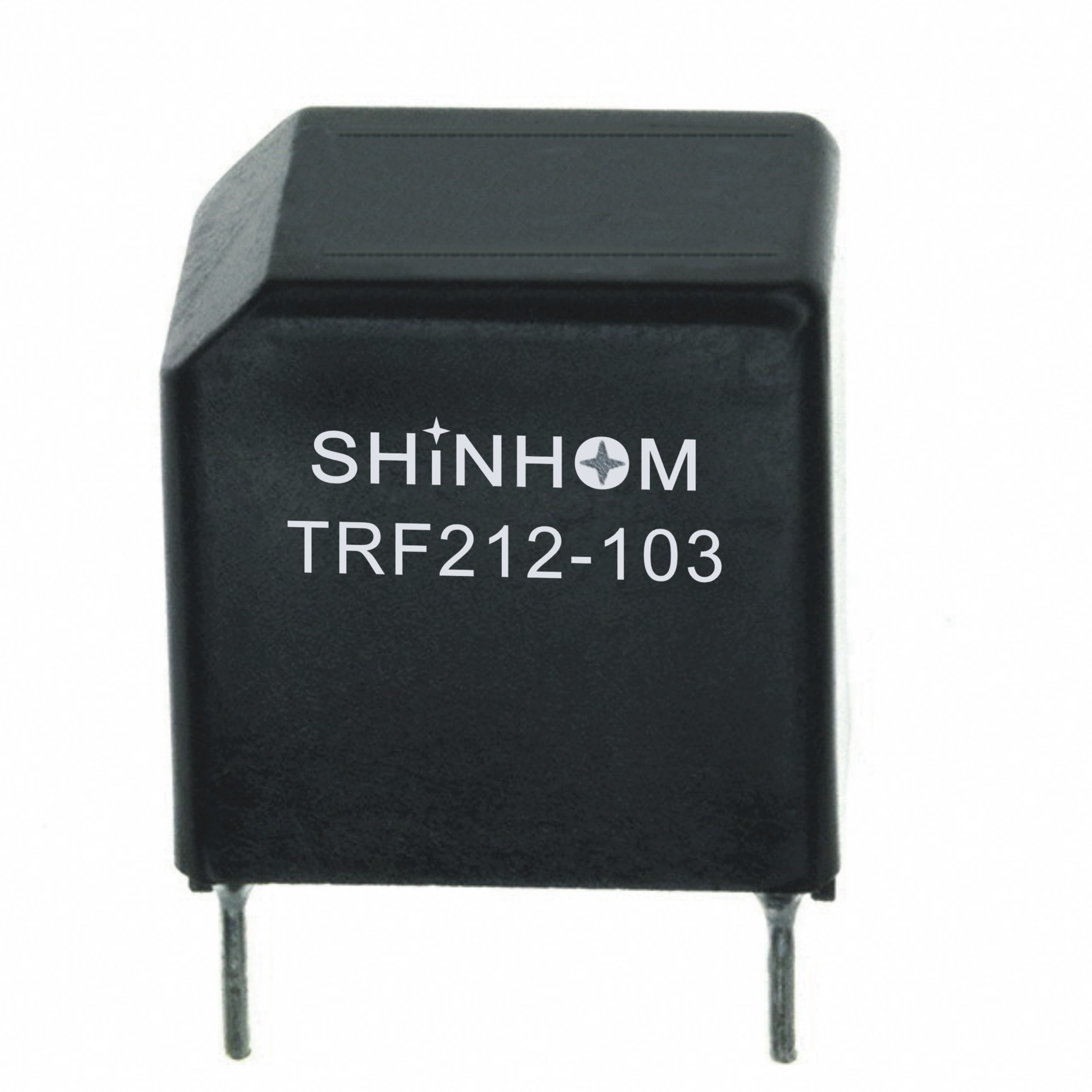

Toroidal Common Mode Choke Vibration Resistance For Wind Power System

Toroidal Common Mode Choke Vibration Resistance For Wind Power System
Toroidal Common Mode Choke Vibration Resistance For Wind Power System Toroidal Common Mode Choke Vibration Resistance For Wind Power System Toroidal Common Mode Choke Vibration Resistance For Wind Power System Toroidal Common Mode Choke Vibration Resistance For Wind Power System

Large Image :  Toroidal Common Mode Choke Vibration Resistance For Wind Power System Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TRF
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Winding: Common Mode Current: Up To 15A
Nature Of Operation: Choke Coil Transport Package: Carton
Specification: RoHS, ISO9001 Test Frequency: 10KHz
High Light:

common mode toroidal chokes

,

common mode power line choke

Low Loss Toroidal Common Mode Choke /Toroidal Core Power Inductor/Magnetic Inductors





Technical information:

1. Inductance tolerance in +50% -30%
2. Max operating voltage:250V at 40℃
3. IDC Max: rating AC/DC current A @40℃
4. Hi-Pot 2500Vac winding to winding 3S.
5. Inductance Testing: 10KHz 0.1V HP4284A
6. RDC:QuadTech 1880 Milliohmmeter
7. Surge current Max 10ms: 20X IDC
8. Operating temperature: -40℃ to +105℃
9. Storage Temperature: -40℃ to +105℃





Features:
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance




Application:
     Low Frequency AC Reactor, Solar Power System, Power Conditioning System,Wind Power System, Automatic Drive Machine, Induction Heater, Welding Machine, Paper Industries, RFI Suppression Choke, DC/DC converters, IP and OP devices.





Product specifications can be customized
