Product Details:
Payment & Shipping Terms:
|
| Current Range: | 10A To 25A | Inductance Range: | 1uH To 10uH |
|---|---|---|---|
| Installation: | SMT | Pad Size: | 10*10mm |
| Test Frequency: | 10KHz / 0.1V@25℃ | Operating Temperature: | -40℃ To +125℃(ambient Plus Self-temperature Rise) |
| High Light: | high current inductors chokes,smd power choke |
||

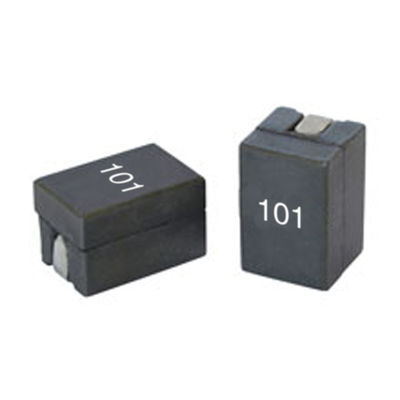

HCB1006 Series high current power inductors,SMD power inductors,Current range 10A-25A
FEATURES:
· High current carrying capacity
· Low core loss
· Ferrite core material
· Inductance range from 1uH to 10uH
· Current range from 10A to 25A
· Test Frequency : 10KHz / 0.1V@25℃
· Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
· Storage temperature: -40℃ to +125℃
APPLCATIONS:
· Portable electronics
· Servers and workstations
· Data networking and storage systems
· Notebook and desktop computers
· Graphics cards and battery power systems
· Multi-phase regulators
· Voltage regulator module(VRM)
Note: Product specifications can be customized.
