Electronics Appliances Common Mode Power Line Choke Power Coils With LCD Display

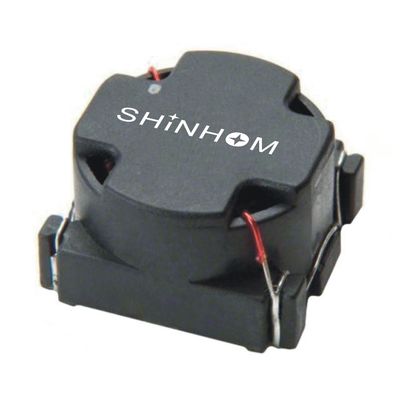

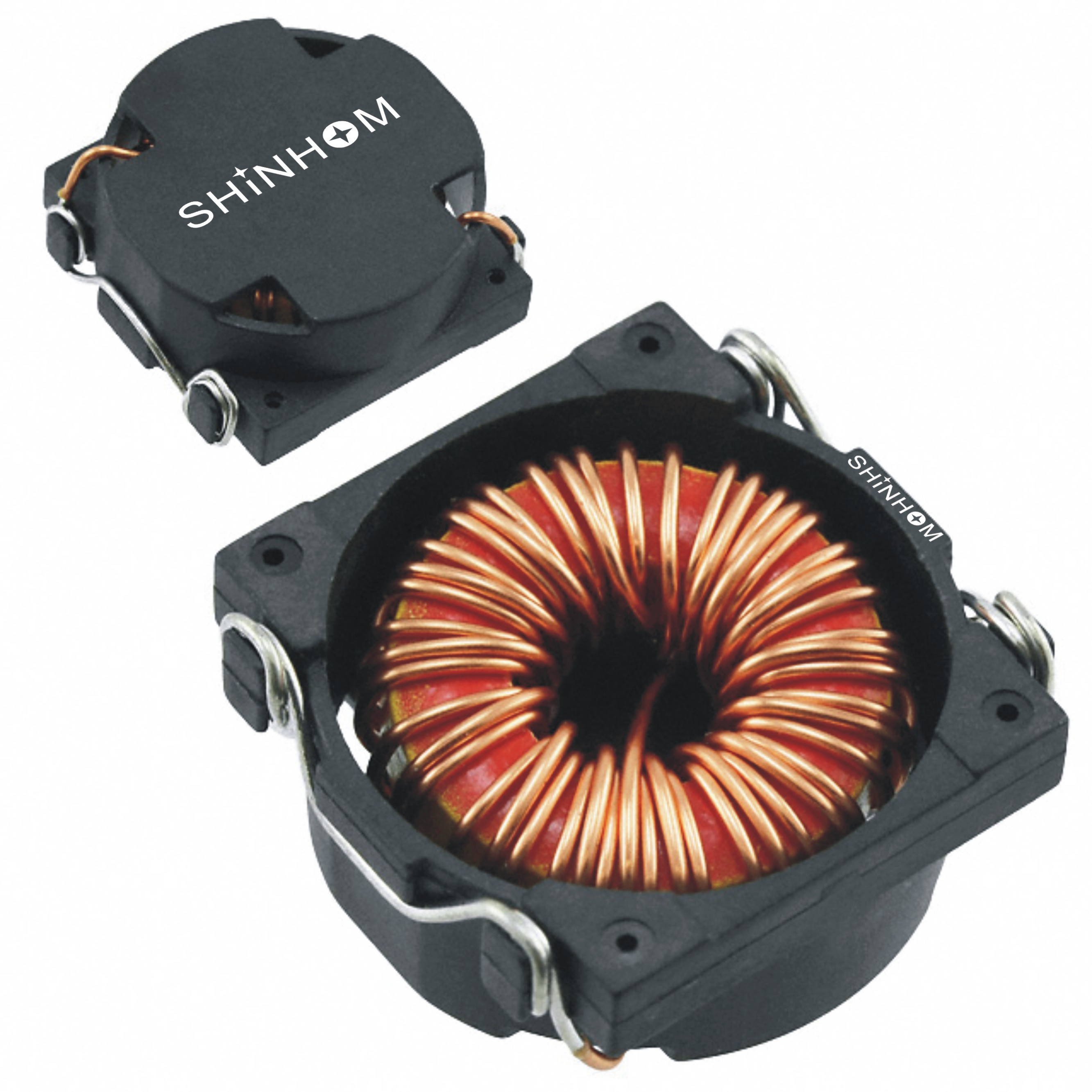

STRF06 Series high current power common mode inductor,SMD Type Toroid Core Choke Coil

FEATURES:

• Tested at 100KHZ, 0.1 VRMS
• Electrical specifications at 25 °C
• Inductance L1, L2 range: 61uH to 1125uH
• RMS dielectric strength: 1,000V
• Current: 1.8to 7.0A
• Tolerance: ± 20%
• Temperature rise: 45°C maximum at rated current
• Storage temperature: -25 to +85°C
• Operating temperature: -20 to +125°C
• SMD common-mode choke coil
• Surface mount
• CMC choke coils
• Common-mode filter
• Toroidal common-mode inductor
• Low profile and small size SMD
• Suitable for reflow soldering
• RID common-mode choke coils
• Small-profile choke coils
• Ferrite core toroid choke coils
• Large-current choke coils
• Low resistance choke coils
• MPP/hi-flux/sendust/RF carbonyl/iron power core choke coils
• For excellent EMI suppressor
• Low DCR common mode
• High frequency and low loss common-mode
• High-energy storage
• Pulse SMT common mode chokes
• IDC 2; base on temp.(at=30 °C )
• Resistance to solder heat: 260°C, 10 seconds
• Ferrite core CMC toroid choke coils
• Ideal for excellent EMI suppressor
• With common mode filter
• Designed for DC/DC converters
• Wide variety of inductor sizes and current ratings are available
• Carrier tape packing used for SMT
• Magnetically shielded construction
• Suitable for reflow SMT Craft soldering.
• Lead free products, RoHS compliant.

COMMON APPLICATIONS:

• Electronics Appliances
• DC-DC Conversion (Paraller Mode)
• Isolation/ Coupling (Transformer)
• Input Filter (Series Mode)
• EMI/RFI Suppression
• Desktops,Laptops,DSC and computer peripheral
• DC/DC converter.
• LCD display
• Telecommunication Equipment
• Power equipment /Digital products /Scanner.....

TECHNICAL INFORMATION:

• IDC: Temp. rise 40℃ Max
• lnductance test: HP4284A 100KHz 0.1V
• RDC:QuadTech 1880 Milliohmmeter
• Solder methods: Vapor Phase, Infrared Reflow
• Resistance to soldering heat:260℃ for 10 seconds
• Solvent resistance: Conforms to MIL-STD-202E
• Weight------------------1.5grams TYP
• Tape & Reel--------------700/reel

More sizes to choose from
