Light Weight Common Mode Power Line Choke ISO9001 Certified for Solar Power Systems

Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification

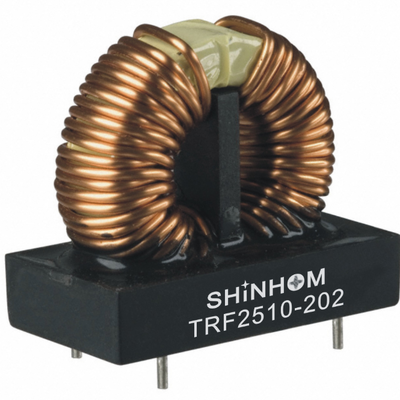

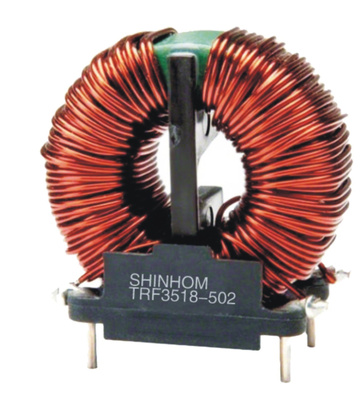

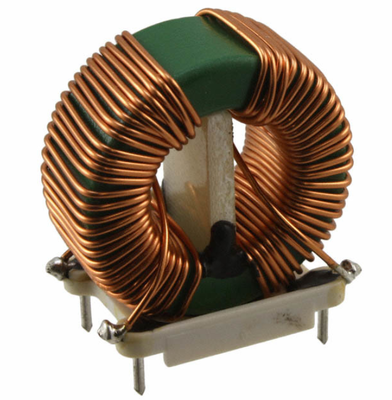

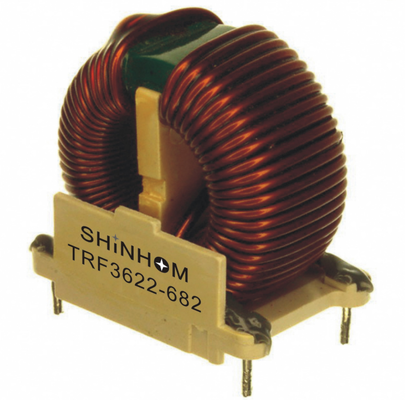

This common-mode inductor is manufactured using a toroidal ferrite core and split winding process, specifically designed for solar power systems and wind power generation systems, ensuring high common-mode impedance, low inter-winding capacitance, and wideband operation.The product features a robust and reliable structure and complies with ISO9001 certification and UL94-V0 material requirements.It is suitable for solar power systems, wind power generation, and induction heaters. It is an ideal choice for common-mode inductor applications in EMI suppression and power filtering.

Features:
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
6. Operating temperature: -55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance

Applications

• Low-frequency AC reactors

• Solar power systems

• Power conditioning systems

• Wind power generation systems

• Automatic drive machinery

• Induction heaters

• Welding machines

• Paper industry

Technical information:
1. Max operating voltage:250V at 40℃
2. Hi-Pot 2500Vac winding to winding 3S.
3. Operating temperature: -40℃ to +105℃
4. Storage Temperature: -40℃ to +105℃

Product specifications can be customized

FAQ

Q: Does this product support customisation?

A: Yes. Parameters can be customised based on customer circuit diagrams or application requirements. Please contact our sales team to confirm the customisation plan.

Q: What is the typical lead time for mass orders?

A: Mass order lead time is generally 2-8 weeks. Custom products will be confirmed separately. The specific lead time is subject to confirmation at the time of order.

Q: What quality certifications does this product provide?

A: This product is ISO9001 certified, with materials certified to UL94-V0. For other certification documents, please contact our sales team for confirmation.
